Dwyer Instruments SLR-01 Installation And Operating Instructions

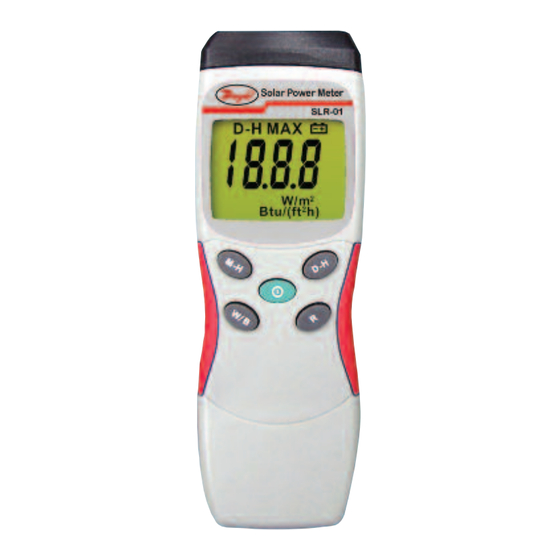

Model SLR-01 Handheld Solar Power Meter measures the solar
energy to determine the appropriate position or location for solar panels.
It can be used to test the performance of solar receivers and solar
window treatments. Using the end-mount light sensor, the meter is able
to read and display in units of W/m
and high contrast of the LCD make it easy to read the measurement,
even in bright areas. Applications include solar farms, office buildings that
utilize energy harvesting sensors, and telemetry systems.
PRODUCT OVERVIEW
A
B
C
D
A. Solar Light Sensor
B. LCD Screen
C. Max/Min Button
D. Unit Switch Button
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Model SLR-01 Handheld Solar Power Meter
Specifications - Installation and Operating Instructions
and BTU/(ft *h). The large numbers
2 2
Solar Power Meter
SLR-01
E
F
G
H
Figure 1
E. Data Hold Button
F. Power Button
G. Auto Range Button
H. Battery Cover
2-1/8
[54.88]
Solar Power Meter
SLR-01
6-1/4
[158.75]
SPECIFICATIONS:
Range: 0 to 1999 W/m ; 0 to 634 BTU/(ft
2
Accuracy: ±10 W/m ; ±3 BTU/(ft
2
Additional temperature induced error above 77°F (25°C) ±0.38 W/m
±0.12 BTU/(ft *h) per °C.
2
Display: 3-1/2 digit LCD.
Resolution: 0.1 W/m ; 0.1 BTU/(ft
2
Temperature Limits:
Operating: 41 to 104°F (5 to 40°C);
Storage: 14 to 140°F (-10 to 60°C).
Power Requirements: 9 V carbon zinc battery, included, user
replaceable.
Battery Life: Approx. 100 hr.
Weight: 20 oz (567 g).
Agency Approvals: CE, RoHS.
1 2
MIN D-H MAX
5
Figure 2
1. Minimum Value
2. Data Hold
3. Maximum Value
4. Low Battery Indicator
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin TE-SLR-01
1-3/8
[36.12]
*h).
2
*h) or ±5%, whichever is greater;
2
*h).
2
3 4
6
W/m2 7
2 8
BTU/(ft *h)
5. Numeral Screen
6. Decimal Point
7. W/m
2
8. BTU/(ft *h)
2
