Dwyer Instruments SPPM Series Specifications-Installation And Operating Instructions

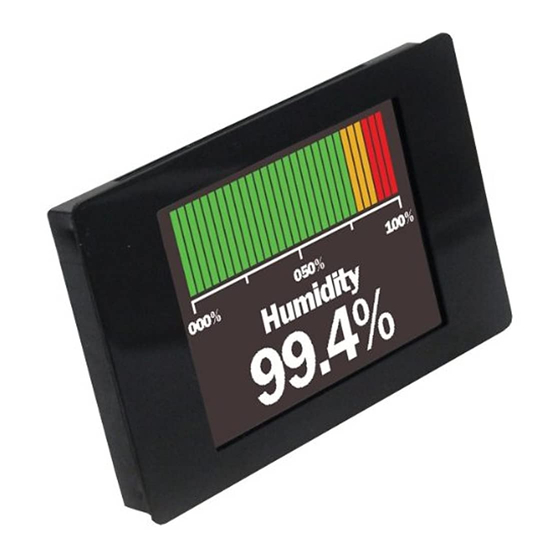

The Series SPPM Smart Programmable Panel Meter is a configurable, full color
display that can be used in a variety of applications. Utilizing a USB connection,
the panel meter can be configured with downloadable software, using any
computer running Windows based software. Available with a 2.4˝, 2.8˝ or 3.5˝
®
screen which features remarkable graphics that can easily be customized to read
and/or graph pressure, temperature, humidity, gas concentration, or many other
parameters. Up to two transmitters or transducers can feed the panel meter's user
scalable inputs. The Series SPPM includes a gasket and mounting clip for quick
installation into a panel.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

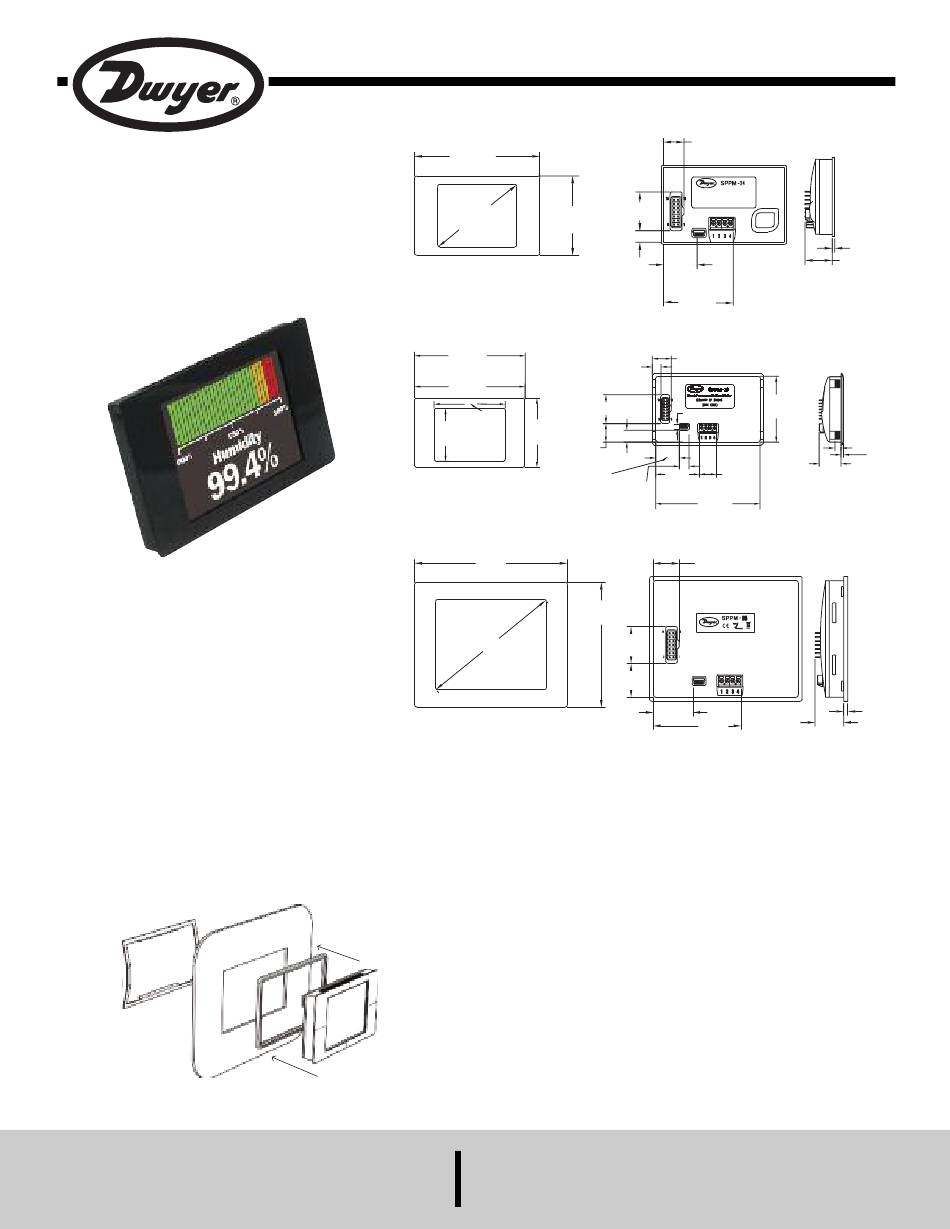

Series SPPM Smart Programmable Panel Meters
Specifications - Installation and Operating Instructions
Figure 1
3 [76.45]
15/16
2-3/8
[23.62]
1-29/32
[60.44]
[48.26]
9/32
[7.11]
3-17/32
[89.51]
3-1/2
[89.10]
29/32
[23.40]
2-9/32
2-1/4
1-11/16 [57.60]
3/8 [9.80]
[56.80]
[43.22]
19/32
[15.20]
3/4
[19.06]
3-25/32
[96.00]
3-3/32
[78.50]
3-1/2 [88.85]

SPECIFICATIONS

Inputs: 0 to 40 VDC, scalable (factory
set from 0 to 10 V).
Accuracy: 0.1%.
Resolution: 0.3 to 9.8 mV (depending
on input range).
Power Supply: 4-30 VDC.
Current Consumption: 190 mA max.
Display: 2.4˝, 2.8˝ or 3.5˝ TFT full
color screen.
Display Resolution: 320 x 240 pixels.
Sampling Rate: 3 samples/second.

Mounting

1. Punch out a rectangular hole in the panel or enclosure.
SPPM-24 Panel Cut-out: 2.91 x 1.81˝ (74 x 46 mm).
SPPM-28 Panel Cut-out: 3.43 x 2.15˝ (87 x 54.5 mm).
SPPM-35 Panel Cut-out: 3.62 x 2.91˝ (92 x 74 mm).
2. Place the gasket around the bezel of the display.
3. Slide the display through the front hole in the panel or enclosure.
4. Attach the mounting clip from the rear as shown in Figure 1.
Windows and Windows Vista
®
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin PC-SPPM
1/2
[12.45]
SMART PROGRAMMABLE PANEL METER
(COUNTRY OF ORIGIN)
DATE CODE
23/32
[18.29]
1-11/16
[42.55]
SPPM-24
19/32
1/4
[15.19]
[6.71]
2-1/8
[53.81]
5/32 [3.90]
9/16
1-3/8
[35.12] [14.00]
5/16
[7.70]
3-5/16
[84.10]
SPPM-28
5/8
[16.16]
29/32
[23.30]
27/32
[21.26]
31/32
[24.81]
2-5/32
[55.01]
SPPM-35
Operating Temperature: 32 to 104°F
(0 to 40°C).
Mounting: Panel mount.
Connection: Screw terminals, pin
connection, or USB.
Software Requirements: Compatible
with Windows XP, Windows
®
Windows 7 and Windows Vista
®
Weight: SPPM-24: 3.2 oz (90.7 g);
SPPM-28: 4 oz (113.4 g); SPPM-35:
5.1 oz (144.6 g).
Approvals: CE, RoHS.
are registered trademarks of Microsoft Corporation
®
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
1/16
[1.52]
21/32
[16.51]
3/16
[5.07]
1/16
[1.90]
11/16
[17.80]
3/32
[2.70]
23/32
[17.95]
2000,
®
.
®
