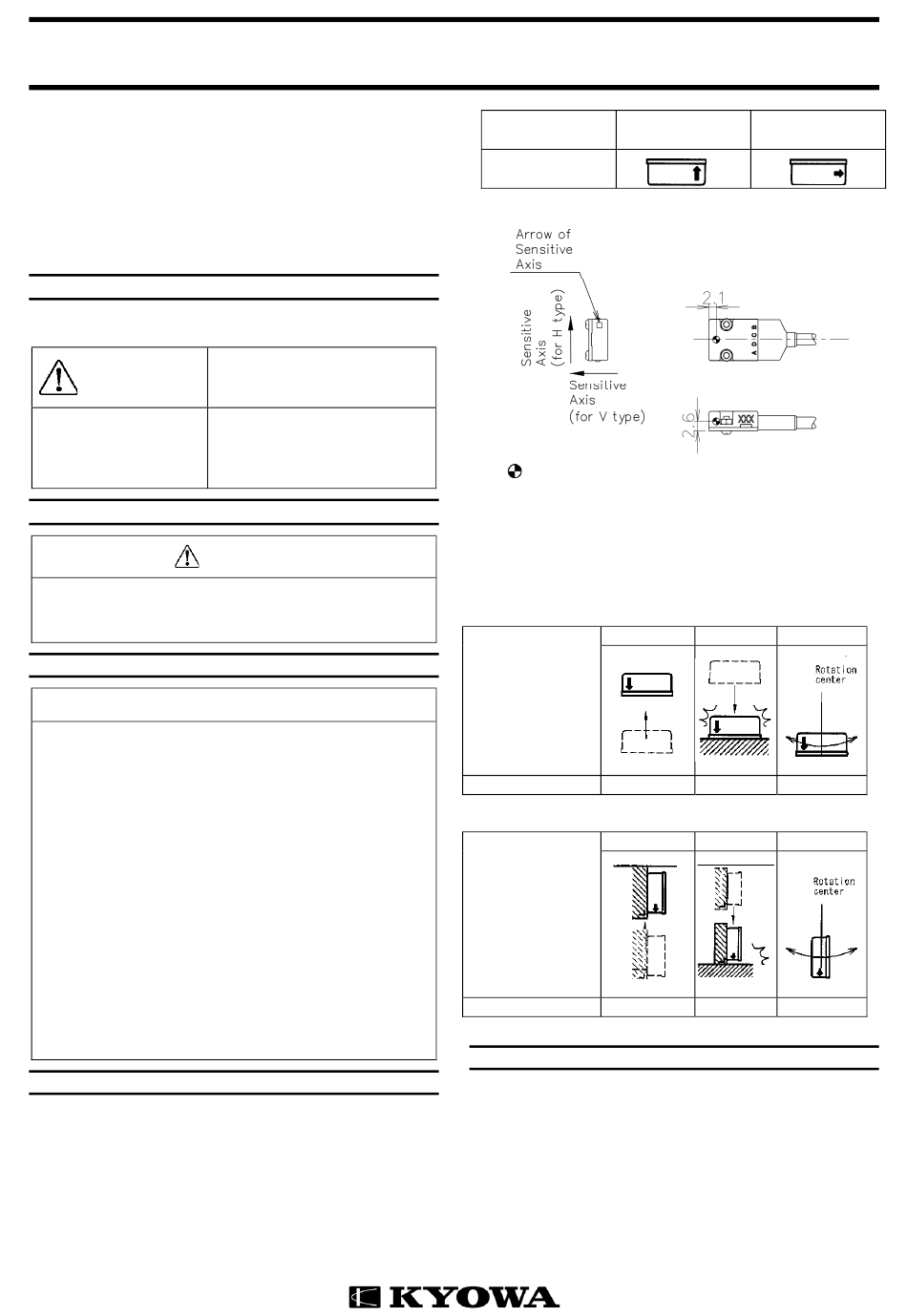

KYOWA ASM-A-2KV/H-ID Instruction Manual

ASM-A-2KV/H-ID ACCELERATION TRANSDUCER
Thank you for purchasing KYOWA's product ASM-A-2KV/H-ID
Acceleration Transducer. Before using the product, please read this
Instruction Manual carefully. Also, keep the manual within easy reach so
that you can refer to it whenever necessary.
The ASM-A-2KV/H-ID is a TEDS-compatible sensor. The connector
plug has TEDS. When using measuring instrument with TEDS function,
you are not required to execute the sensitivity registration. For details,
see KYOWA Technical Report No. 536.
(TEDS: Transducer Electronic Data Sheets, IEEE1451.4)

1. SAFETY SYMBOLS

Be sure to observe the accompanying precautions in order to safeguard
the operator and preserve the performance of the instruments.
WARNING
CAUTION

2. SAFETY PRECAUTIONS

WARNING
● B e sure to mount the product properly.
If the product loosens while using it, the product may be detached
or damaged, and operators may be damaged.

3. HANDLING PRECAUTIONS

CAUTION
● T his product is extra sensitive to impact. Do not drop, hit, or apply
any impact to the product. Avoid impact in excess of its safe
overload rating 29420m/s 2
damaged. Take great care to handle it properly.
● I nstall the product carefully. Or, the frequency response
characteristics may be changed. Make sure the product is installed
onto the object to be measured perfectly.
When installing, carefully avoid external force such as bending or
twisting on the product.
● W hen the product is installed using adhesive, excessive force due
to removing may deform the product's cabinet and resonance of
the pressure sensing surface due to the removing impact may
damage the product. When removing the product, carefully avoid
excessive external forces.
● D o not pull or bend cables too much. Do not bend rubber
protectors. Or, it may break cables.
● T he product is not waterproof. Take care to avoid water and highly
humid (over 85%) environment.

4. SENSITIVE AXIS AND OUTPUT POLATIRY

4.1 Sensitive axis
Before installing the ASM-A-2KV/H-ID, check the model. Make sure
the sensitive axis is correct. See the figure 4-1 and 4-2.
INSTRUCTION MANUAL
Improper operation of the system
may result in death or severe injury
of the operator.
Improper operation of the system
may result in injury of the operator
and physical damage of the system.
(3000G). Or, the product may be
IM-T-290B September, 2016
Arrow direction
Indicates the center of mass of the acceleration transducer
4.2 Acceleration and output polarity
The acceleration direction, applied to the ASM-A-2KV/H-ID, and
output polarity are as follows. See the figure 4-3 and 4-4.
●ASM-A-2KV-ID
Input conditions Acceleration
Output polarity (+)
●ASM-A-2KH-ID
Input conditions Acceleration
Output polarity (+)

5. INSTALLATION/REMOVAL

5.1 To install
(1) Clean the mounting area.
(2) Also clean the mounting surface of the ASM-A-2KV/H-ID.
(3) Apply the adhesive agent (CC-33A) lightly on the mounting surface.
See the figure 5-1. Mount the ASM-A-2KV/H-ID on the object to
be measured. Press the ASM-A-2KV/H-ID for approx. 30 seconds
with fingers.
ASM-A-2KV ASM-A-2KH
Figure 4-1
Figure 4-2
Impact Rotation
(+) (+)
Figure 4-3
Impact Rotation
(+) (+)
Figure 4-4
