Advantech AMAX-354 Startup Manual

AMAX-354 32-Axis Servo Motor Control
Dual-Core Ultra Compact ARM-based EtherCAT Controller
Startup Manual
Packing List
Before you begin installing your module, make sure that the
following materials have been included:
• AMAX-354 Controller
• Startup Manual
• 2P power connector accessory kit
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
Software & User Manual
Please download the MotionNavi Designer software and
user manual from the Advantech website for more informa-
tion.
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequen-
cy energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause interference, in which case
the user is required to correct the interference at his or her
own expense.
CE
This product has passed CE testing for environmental
specifications when shielded cables are used for external
wiring. We recommend using shielded cables. This type of
cable is available from Advantech. Please contact your local
supplier for ordering information.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website:
http://support.advantech.com.tw
This startup manual is for AMAX-354.
Part No. 2043035400
Printed in China
Edition 1
November 2023
Overview

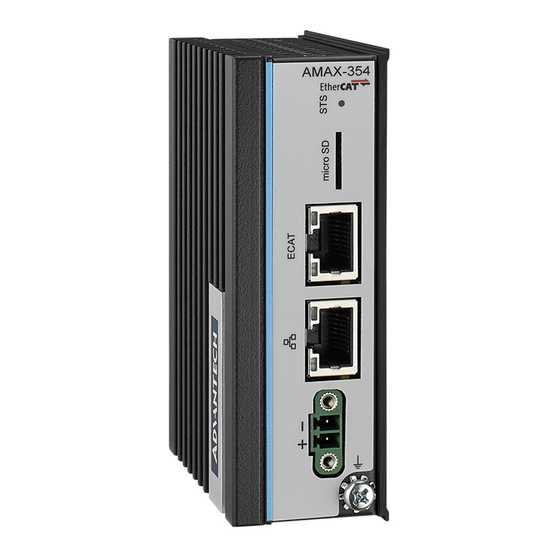

The AMAX-354 is a Dual-Core Ultra Compact ARM-based
EtherCAT Controller explicitly crafted for machine and
equipment builders. Its ultra-compact format ensures excep-
tional space-saving, offering a cost-effective solution. This
controller supports up to 32 axes of EtherCAT with flexible
I/O extension, encompassing local slice I/O expansion and
remote EtherCAT I/O device expansion. It facilitates ESI
import, dynamic PDO setting, and diagnostics for EtherCAT
applications.
Moreover, the AMAX-354 is equipped with MotionNavi De-
signer, a low-code software environment utilizing Advantech
BASIC language for swift development. The softmotion
kernel enhances its capabilities, providing motion functions
such as PTP, linear and circle interpolation, and Path table.
This feature set assists users in streamlined configura-
tion, minimizing programming efforts, and facilitating easy
diagnosis.
Specifications
Common
• Power Requirements: 24V
• Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
• Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
• Humidity: 10 ~ 95% RH @ 40°C/104°F, non-condens-
ing
• Accessories (supplied): DIN-rail mounting bracket
AMAX-354
• Status LED: LED x 1 (Green, Red)
• Micro SD Slot: x 1 (micro SD)
• Ethernet Interface: RJ-45 x 1 (10/100Mbps)
• EtherCAT Interface: RJ-45 x 1 (10/100Mbps)
• EtherCAT I/O Expansion: Local slice I/O module * 8
(max.)
• Power Consumption: 4.32W (Typical), 33W (Max.)
• Isolated grounding: 1500 V
LED Status Description
• Booting: Green on
• Running: Green flash (1Hz)
• Device (or EtherCAT) Error: Red flash (2Hz)
• Axis Error: Red flash (1Hz)
EtherCAT
• Cycle Time Motion: up to 500 us
• Motion Axis: 32-axis max.
• I/O Control (for AMAX-5000I/O):
- 1024-CH DI and 1024-CH DO max.
- 128-CH AI and 128-CH AO max.
