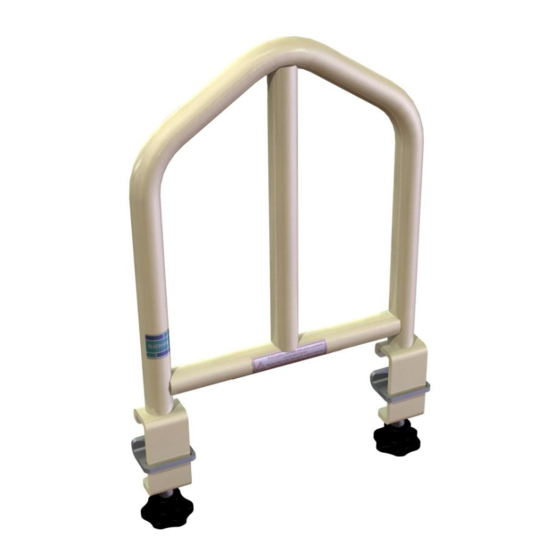

- Page 1 Bradshaw Standard / Freedom II Grab Handle 1214/GRAB User Instructions www.sidhil.com User Instructions...
-
Page 2: Specification
The occupant of the bed can also use the grab handle to reposition themselves when lying in bed. The 1214/GRAB is only suitable for fitting to the Sidhil Bradshaw Standard, Bradshaw Low, and Freedom II beds ( 1275/M/COVERED, 1275/M/LOW/ COVERED &... - Page 3 Failure to fit the grab handle in the correct position may cause a potential entrapment hazard Warning For assembling the 1214/GRAB to the Sidhil Bradshaw Low Bed (1275/M/LOW/COVERED) please refer to page 5 for removing the wooden strips. Fitting Grab Handle –...
- Page 4 Side Tube Frame Clamp Hook Bracket Fig 2 Hand Wheel Fig 3a Fig 3b Side Tube Fig 3c Fig 4 (Note: Mirror position for opposite side of bed) Head End...
- Page 5 Removing Wooden Strips 1. Before removing the wooden strip place the side rails and backrest into their up position (Fig 5). Back Rest Fig 5 Head End 2. On the side which the grab handle is to be fitted and at the head end of the bed, unscrew the two shoulder screws using a 5mm allen key and remove wooden strip (Fig 6).
- Page 6 Fitting Grab Handle – FREEDOM II BED NOTE: Prior to installation of the grab handle it is recommended that the side rails of the Freedom II bed are removed. This is in order to conform with safety standards relating to finger entrapment points between the grab handle and the side rails.
- Page 7 Fig 8 Important: The grab handle should either be positioned less than 60mm from the headboard or greater than 318mm from the headboard. See Fig 9. Distance ‘A’ to be less than 60mm or greater than 318mm Fig 9...
-
Page 8: Inspection Points
Rinse down with clean water and dry off with a paper towel. Always ensure the grab handle is dry before re-using. Sidhil Ltd does not recommend the use of concentrated bleach as this could mark painted wood or chrome surfaces. Inspection... - Page 9 This limited one year warranty gives you specific legal rights and you may also have other rights. Sidhil Ltd cannot be held responsible for any injury or incident which relates to the use of the Bradshaw Standard grab handle in conjunction with accessories manufactured by companies other than Sidhil Ltd.
- Page 12 CONTACT INFORMATION Tel: +44 (0) 01422 233000 Fax: +44 (0) 01422 233010 Email: sales@sidhil.com www.sidhil.com Sidhil Business Park, Holmfield, Halifax, HX2 9TN A member of the Siddall & Hilton Ltd. Group of Companies (93/42/EEC) Certificate No. FM14550 INSTRUC/1214/GRAB Rev 5 16/01/2015...
