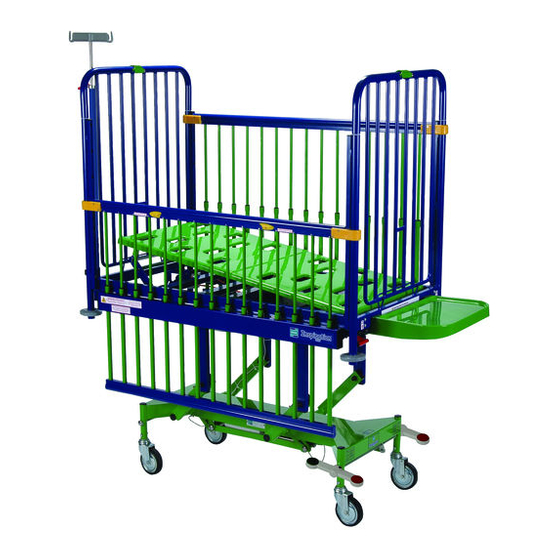

sidhil Inspiration Cot User Instructions

Electrically operated variable height children’s cot
Hide thumbs
Table of Contents

Advertisement

Quick Links

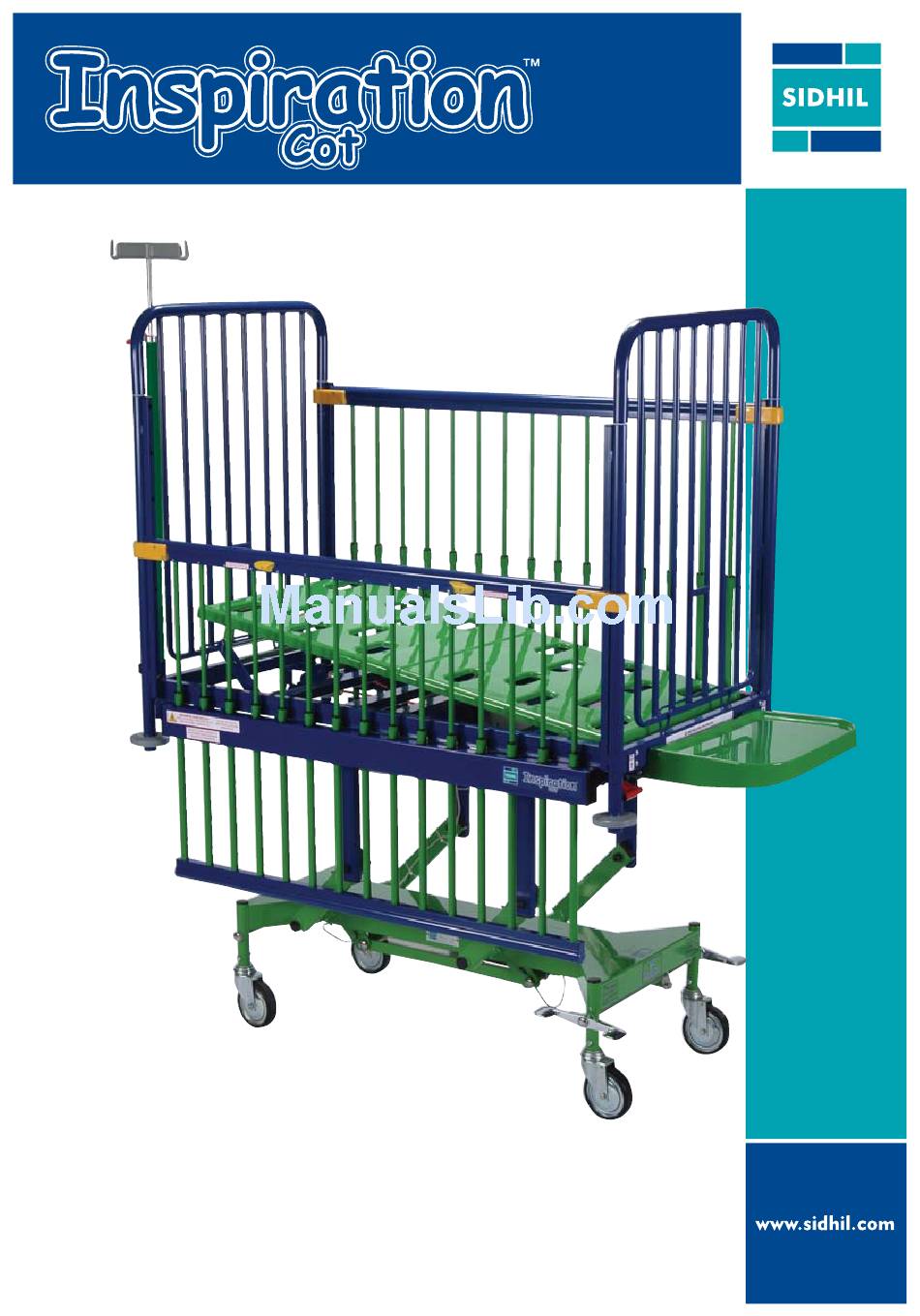

Electrically Operated Variable Height
Children's Cot
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspiration Cot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sidhil Inspiration Cot

Summary of Contents for sidhil Inspiration Cot

  • Page 1 Electrically Operated Variable Height Children’s Cot User Instructions...

  • Page 2: Table Of Contents

    Thank you for choosing a Sidhil Inspiration Cot. This user manual should be read carefully before you use your cot as it contains important information regarding safe operation and maintenance in order to provide long lasting and reliable service. Please ensure that you understand all the instructions, if you have any questions concerning the operation and maintenance of the cot please contact your supplier who will provide you with expert professional advice.

  • Page 3: User Warnings

    Misused electrical equipment can be hazardous. 2. Introduction Your Inspiration Cot is suitable for children of high dependency and those who are a moving and handling risk. To aid the carer the cot is adjustable with a simple touch button handset.

  • Page 4: Parts Identification

    3. Parts Identification Removable head / foot end Side rail Side rail release button CPR mechanism (optional extra) Mattress platform Anti static castor Break pedal CPR activation handle (optional extra) Fold down shelf Height adjustment actuator – under base chassis (not shown) Tilt actuators –...

  • Page 5: Installation & Preparing For Use

    4. Installation and Preparing for use Your Inspiration Cot comes fully assembled and ready for use. Simply remove any packaging and connect the mains cable to an appropriate mains socket outlet. WARNING Ensure that the mains cable is not in tension when connected to the power supply.

  • Page 6: Electrics

    6. Electrics i) Handset The handset is designed to be used by the carer only. The mattress platform can be tilted from either the head or foot end and the cot height is adjustable. To adjust the position of the cot, depress the relevant button until the desired point has been reached and then release the button.

  • Page 7: Emergency Mechanical Cpr Function (Optional Accessory)

    7. Emergency Mechanical CPR Function (Optional Accessory) The mattress platform can be levelled by pulling a handle found at the foot end of the cot. There is one lever to activate the foot end and another for the head end, found to either side of the shelf.

  • Page 8: Braking & Steering

    8. Braking & Steering There are two linked brake pedals at the foot end of the cot which control all the castors simultaneously. • When the pedal is in the ‘steer’ position it locks one castor on the cot so that it cannot swivel. This allows the cot to be steered when being pushed from the head end of the cot.

  • Page 9: Side Rails

    9. Side Rails Your cot comes complete with two integral telescoping side rails which can be locked in position at six different heights. When the side rail is fully down it provides the carer with complete access to the mattress platform regardless of the cot height. i) Adjusting the Side Rail Height Release the side rail by gently sliding the two yellow buttons outwards, this disengages the locking mechanism.

  • Page 10: Shelf

    10. Shelf To raise the shelf, squeeze both spring loaded release handles, these are situated to the shelf underside on the left and right hand sides. Lift the shelf until it is level, once in position release the handles and ensure that the handles have locked in position. To fold the shelf down, squeeze both release handles and gently lower it down.

  • Page 11: Transfusion Pole (Optional Extra)

    12. Transfusion Pole (Optional Extra) The safe working load of the transfusion pole is 10kg, however no more than 3kg should be hung from each hook. The pole should be inserted into one of the sockets found to the head end of the mattress platform and the handwheel tightened. 13.

  • Page 12: Cleaning Procedure

    14. Cleaning Procedure i) Biocote Your cot comes with an antibacterial additive incorporated into the powder coated metalwork. Biocote™ inhibits the growth of bacteria on the surface of the cot frame. It is effective against a wide range of both gram positive and negative bacteria as well as fungi.

  • Page 13: Maintenance Procedure

    • Check that the mains lead is connected to the mains supply. • If none of the above work, keep the cot unplugged from the mains supply and contact your authorised service personnel or Sidhil Ltd. Do not use the cot until the problem has been resolved.
  • Page 14 • Check/replace the fuse in the mains plug. • If none of the above work, keep the cot unplugged from the mains supply and contact your authorised service personnel or Sidhil Ltd. Do not use the cot until the problem has been resolved.

  • Page 15: Spares List

    Head/Foot End Cable/001 Mains Cable Sidhil Ltd. standard terms and conditions apply to all purchases; a copy is available from the address below: Sidhil Limited, Sidhil Business Park, Holmfield, Halifax, West Yorkshire HX2 9TN Sales Tel: +44 (0)1422 233000 Sales Fax: +44 (0)1422 233010 Email: sales@sidhil.com...

  • Page 16: Specification

    Complies with EN 60601-1 (BS 5724: Part1,IEC 601-1) Electrical Shock Protection Class 1 Complies with BS EN60601-1-2 Liquid Ingress Protection IP54 Tel: 01422 233000 Fax: 01422 233010 Email: sales@sidhil.com www.sidhil.com A member of the Siddall & Hilton Ltd. Group of Companies...
