HIGH SPECIFICATION PATIENT TROLLEYS FROM SIDHIL

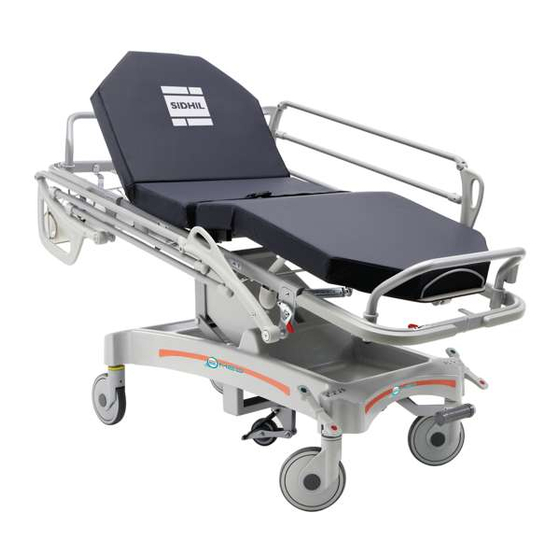

E-MED TROLLEY
USER GUIDE
1500 - 2 Section Trolley with Adjustable Height
1504 - 2 Section Trolley with Adjustable Height and Trendelenburg
1510 - 4 Section Trolley with Adjustable Height
1512 - 4 Section Trolley with Adjustable Height and Trendelenburg
1600 - Fixed Height Trolley with Independent Brake
1602 - Fixed Height Trolley with Constant Brake
Sidhil Ltd, Sidhil Business Park, Holmfield, Halifax, West Yorkshire HX2 9TN
T: +44 (0) 1422 233 000 / E: sales@sidhil.com / www.sidhil.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Med 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for sidhil E-Med 1500

Summary of Contents for sidhil E-Med 1500

  • Page 1 1512 - 4 Section Trolley with Adjustable Height and Trendelenburg 1600 - Fixed Height Trolley with Independent Brake 1602 - Fixed Height Trolley with Constant Brake Sidhil Ltd, Sidhil Business Park, Holmfield, Halifax, West Yorkshire HX2 9TN T: +44 (0) 1422 233 000 / E: sales@sidhil.com / www.sidhil.com...

  • Page 2: Table Of Contents

    CONTENTS 1. GENERAL PROVISIONS................. 4 1.1 Purpose of this Manual ..................4 1.2 Customer Service ....................4 1.3 Definitions ......................4 2. SAFETY ......................5 2.1 General Rules ...................... 5 3. INTRODUCTION ................... 6 3.1 General Description.................... 6 3.2 Reference Standards..................... 7 3.3 Intended Use ......................
  • Page 3 CONTENTS 8. MAINTENANCE ..................... 28 8.1 Periodic Review ....................28 8.2 Lubrication ......................29 8.3 Adjusting ......................29 8.4 Disinfection ......................29 8.5 Sanitisation Intervals.................... 29 8.6 Setting the Item Aside ..................29 8.7 Storage ....................... 30 8.8 Disposal ......................30 9.

  • Page 4: General Provisions

    Descriptions and illustrations contained in this publication are not binding. Sidhil reserves the right to make any modification in order to improve this document without being obliged to update it. The illustrations and images used in this publlication are examples only and may differ in practical application.

  • Page 5: Safety

    Always use and carry out the maintenance procedures of the article as prescribed in this manual, and use only Sidhil spare sparts and Sidhil customer service centre. The stretcher while used on a level surface with patients and operators of medium height can be handled by only one operator.

  • Page 6: Introduction

    Wheels diam. 200 with simultaneous locking, one of which directional made of plastic dirtresistant material with support in chromium plated steel and the others swivel on ball bearing. Standard safety belts for patient. E-MED 1500 (Radio-Transparent Rolled Plane) Adjustable Height Stretcher without Trendelenburg and Reverse-Trendelenburg. Made like EMED1504 without Trendelenburg/reverse-Trendelenburg movement.

  • Page 7: Reference Standards

    On the base wheels diam. 200, two wheels are swivel and free, and two equipped with independent foot brake. Wheels made of plastic dirt-resistant material with support in chromium plated steel and swivel on ball bearing. Standard safety belts for patient. E-MED 1602 Hospital Ward Stretcher with Constant Brake.

  • Page 8: Markings

    3.4 Markings The tag on the device must not be removed. Caution The item can be identified by its rating plate on the base featuring the following data: 1. Name and address of the manufacturer 2. EEC Marking 3. Attention: read the instructions for installation and use 4.

  • Page 9: General Descripton

    4. GENERAL DESCRIPTION 4.1 Technical Features Stretcher Code EMED 1500 EMED 1504 EMED 1510 Stretcher-Spring Dimensions 1980 x 580 1980 x 580 1980 x 600 Max. Height Min. Height Width Length 2040 2040 2040 Back Section 640 x 550 640 x 550 635 x 550 Leg Section 1270 x 610...
  • Page 10 Stretcher Code EMED 1512 EMED 1600 EMED 1602 Stretcher-Spring Dimensions 1980 x 600 1980 x 580 1980 x 580 Max. Height Min. Height Width Length 2040 2040 2040 Back Section 635 x 550 640 x 550 640 x 550 320 x 610 Leg Section 1270 x 610 1270 x 610...

  • Page 11: Description Of The Main Parts - 2 Section Stretcher With Adjustable Height

    4.2 Description of the Main Parts - 2 Section Stretcher with Adjustable Height Stretcher-Spring 12. Back Adjusting Lever Back Section 13. Cover Leg Section 14. Side Rails Hooking Device Side Rails 15. Mattress Holder Pushing Handle 16. Mattress (Accessory) IV Pole (Accessory) 17.

  • Page 12: Description Of The Main Parts - 4 Section Stretcher With Adjustable Height

    4.3 Description of the Main Parts - 4 Section Stretcher with Adjustable Height Stretcher-Spring 13. Side Rails Hooking Device Back Section 14. Mattress Holder Side Rails 15. Mattress (Accessory) Pushing Handle 16. Clothes Holder Basket IV Pole (Accessory) 17. Bubble Oxygen Tank Holder (Accessory) 18.

  • Page 13: Description Of The Main Parts - Stretcher With Fixed Height

    4.4 Description of the Main Parts - Stretcher with Fixed Height Stretcher-Spring Brake for Fixed Height Model Type without Locking Handle Back Section Back Moving Lever Leg Section 10. Side Rails Hooking Device Side Rails 11. Mattress Holder IV Pole (Accessory) 12.

  • Page 14: Controls Identification

    5. CONTROLS IDENTIFICATION Controls and devices are identified by labels positioned near or on devices themselves. Lifting and Lowering Back Section Locking Lifting and Lowering Seat Section Unlocking Brakes (L/R) Lifting and Lowering Leg Section Lifting and Lowering Stretcher-Spring Trendelenburg and Reverse-Trendelenburg PULL Maximum Patient Weight...

  • Page 15: Installation

    • Perform the “periodic review” provided for in Maintenance section • If the check is positive, the article is ready for use, otherwise call the Sidhil customer service centre immediately. • The stretcher is delivered ready for use and it does not require any preliminary assembly operation.

  • Page 16: Operation And Use

    7. OPERATION AND USE Warnings Regarding Use The E-MED stretcher has been designed and manufactured exclusively for Warning professional use. Use the stretcher only as indicated in this manual. Read the instructions carefully before using the stretcher and follow the prescribed operating procedures.
  • Page 17 Mod. type with adjustable height The locking device of the wheels: • In the “A” position allows the wheels to rotate freely. • In the “B” position allows for operating the directional block of one wheel, while at the same time keeping the other one free.

  • Page 18: Moving The Stretcher

    7.3 Moving the Stretcher Always advise the patient before performing any movement. Warning You can only move the stretcher on the level and rigid surface and with the side-rails lifted. Always lock the stretcher after any movement. Warning Mod. type with fixed height: •...

  • Page 19: Lifting And Lowering The Stretcher

    7.4 Lifting and Lowering the Stretcher Always advise the patient before adjusting the stretcher’s height. Warning UNDER NO CIRCUMSTANCES put objects between the base and the movable part. DO NOT MOVE the moving parts by hand, and follow the instructions carefully. Warning The stretcher’s height is adjustable by pantograph devices operated by a hydraulic pump through the foot control (11).

  • Page 20: Lifting And Lowering The Back

    In order to lower the stretcher proceed as follows: • Lift the pedal (11) upwards until the required height is reached. 7.5 Lifting and Lowering the Back Always advise the patient, before lifting and lowering the back. Warning UNDER NO CIRCUMSTANCES put objects between the stretcherspring’s frame and the back section.

  • Page 21: Lifting And Lowering Upper Leg Section (Mod. Emed/1510 - Emed/1512)

    7.6 Lifting and Lowering Upper Leg Section (Mod. EMED/1510 - EMED/1512) Always advise the patient, before lifting and lowering the upper leg section. Warning The stretcher’s upper leg section is adjustable by a lever, which operates a gas-spring, which push the section upwards.

  • Page 22: Lifting And Lowering Lower Leg Section (Mod. Emed1510 - Emed/1512)

    7.7 Lifting and Lowering Lower Leg Section (Mod. EMED/1510 - EMED/1512) Always advise the patient, before lifting and lowering the lower leg section. Warning Lower leg section is adjustable by a locking rack device. UNDER NO CIRCUMSTANCES release the regulation handle if not sure of perfect locking by locking rack device.

  • Page 23: Trendelenburg

    7.8 Trendelenburg Always advise the patient before performing any adjustment. Warning Secure the patient with the safety belt (20) before performing any Trendelenburg’s adjusment. Warning The Trendelenburg position is adjustable by tilting the stretcher manually. The locking lever (12) locks the stretcher to the desidered position.
  • Page 24 Resetting the Trendelenburg Position The unlocking of the stretcher by the proper lever makes the stretcherspring completely free to rotate in both directions. Caution In order to reset the trendelenburg movement proceed as follows: • Position yourself at the foot side of the stretcher. •...

  • Page 25: Moving The Folding Side Rails (Emed/Acc/S1604)

    7.9 Moving the Folding Side Rails (EMED/ACC/S1604) The side rails can be moved manually, and then they can be fastened in position by an hooking system. Always advise the patient before performing any adjustment. Warning In order to lift the side rails proceed as follows: •...
  • Page 26 In order to lower the side rails proceed as follows: • Grip the side rail, press the safety (15a), lift the side rail and rotate it downwards and lower and guide it gently until reaching the stop position.

  • Page 27: Moving The Compass Side Rails(Emed/Acc/S1607)

    7.10 Moving the Compass Side Rails (EMED/ACC/S1607) The side rails can be moved manually, and then they can be fastened in position by an hooking system. Always advise the patient before performing any adjustment. Warning In order to lower the side rails proceed as follows: •...

  • Page 28: Maintenance

    8. MAINTENANCE 8.1 Periodic Review The users must control the product at least once a year; the check must see that there is not damage that can compromise integrity and proper operation of the product. I.E.: • Screws properly fixed. •...

  • Page 29: Lubrication

    Every 2-3 months check that the all screws will be well tightened, verify the efficiency of the brake and if only it was not, see the adjustments of the stretchers with fixed height, or contact the Sidhil customer service for the other models. Every year perform a check of all the moving parts, especially for that stretchers under stress: the said stretchers must not present wear signs.

  • Page 30: Storage

    8.7 Storage Long storage term must be performed according to the following conditions: • The item must be packed. • The storage area must bedry and not exposed to direct sunlight. • The items must not be stacked up. 8.8 Disposal If you decide to no longer use this item, it is necessary to declare it inoperable.

  • Page 31: Certificate Of Warranty

    9. CERTIFICATE OF WARRANTY This certificate must be kept until its expiry date. It must be shown every time technical assistance is deemed necessary, along with the invoice, receipt, delivery note and document containing the name of the delear who sold the product. User unable to show the proper documentation will no longer have the rights to the warranty.

  • Page 32: Accessories

    10. ACCESSORIES 10.1 EMED 1524 IV Poles: E-MED/ACC/S1524 - IV Pole (E-MED 1500 Range) E-MED/ACC/Z1524 - IV Pole (E-MED 1600 Range) Technical Presentation The IV pole is composed of a tube made of chromium plated steel. On the tube’s end have been welded two shaped hooks made of chromium plated steel.
  • Page 33 Before using the article: • Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call the Sidhil customer service centre immediately.
  • Page 34 Operation and Use Never use the IV pole for any purpose other than that for which it was intended and designed. Caution Always check that the IV supporting hooks are in longitudinal position with the stretcher, in order to reduce and minimize the obstruction. Warning Always check that the IV pole is correctly installed to the stretcher before using it.

  • Page 35: Emed 1520 Oxygen Cylinder Holder

    10.2 EMED 1520 Oxygen Cylinder E-MED/ACC/S1520 - Oxygen Cylinder Holder (E-MED 1500 Range) E-MED/ACC/Z1520 - Oxygen Cylinder Holder (E-MED 1600 Range) Technical Presentation The oxygen cylinder holder is made of chromium plated steel. Reference Standards The item was designed and manufactured by GIVAS SRL in compliance with the safety requirements of directive 93/42/CEE of 14.06.93 (class I) and further modifications to it, (Directive 2007/47/CEE), about...
  • Page 36 Before using the article: • Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately.
  • Page 37 Operation and Use Never use the oxygen cylinder holder for any purpose other than that for which it was intended and designed Caution Always check that the oxygen cylinder holder will be correctly fitted to the stretcher before using it (with reference to the section in this manual called “installing the oxygen cylinder holder”).

  • Page 38: Emed/Acc/0070 Support For Urine Bag

    10.3 EMED/ACC/S0070 Support for Urine Bag Technical Presentation The support for urine bag is composed of chromium plated steel structure, which can be hooked to the stretcher by two hooks. Reference Standards The item was designed and manufactured by GIVAS SRL in compliance with the safety requirements of directive 93/42/CEE of 14.06.93 (class I) and further modifications to it, (Directive 2007/47/CEE), about medical devices.
  • Page 39 Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately. Operation and Use Put the article in an easily reachable space from the patient and nursing stuff.
  • Page 40 • In order to use the support for urine bag, proceed as follows: • Hook the bag to the support: the bag is equipped with two reinforced rings; insert the rings into the hooks (1) of the support. • Reeve the tube through the rings (2); •...

  • Page 41: Emed 1518 Collapsible Accessories Tray

    10.4 EMED 1518 Collapsible Accessories Tray E-MED/ACC/S1518 - Collapsible Accessories Tray (E-MED 1500 Range) E-MED/ACC/Z1518 - Collapsible Accessories Tray (E-MED 1600 Range) Technical Presentation This article is composed of two parts: the frame made of chromium plated steel, and the tray made of multi-layer laminate and equipped with straps.
  • Page 42 Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately. Operation and Use...
  • Page 43 Always make sure that the article is well fitted to the stretcher, as it may obstruct and at the same time result in the injury of the operator and patient, and damage to the stretcher. Warning In order to use the tray proceed as follows: •...

  • Page 44: Emed/Acc/Z1609 Clothes Holder Basket

    10.5 EMED/ACC/Z1609 - Clothes Holder Basket Technical Presentation Clothes holder basket made of steel painted with epoxy powders, it can be mounted on the stretchers with fixed height. Reference Standards The item was designed and manufactured by GIVAS SRL in compliance with the safety requirements of directive 93/42/CEE of 14.06.93 (class I) and further modifications to it, (Directive 2007/47/CEE), about medical devices.
  • Page 45 Before using the article: • Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately.
  • Page 46 Operation and Use Never use this article for any purpose other than that for which it was intended and designed. Caution Never exceed the allowed maximum capacity of the basket. Warning The objects must never protrude from the basket sideways, as they may obstruct the movement of the stretcher and may get in the operator’s way.

  • Page 47: Emed 1501 Mattress

    10.6 EMED 1501 - Mattress EMED/ACC/Z1501 - Mattress (Folding Side Rails) EMED/ACC/Z1506 - Mattress (Compass Side Rails) Technical Presentation E-MED/ACC/Z1501 - Antistatic mattress for stretchers with rails EMED/ACC/S1604 & EMED/ACC/Z1604 E-MED/ACC/Z1506 - Antistatic mattress for stretchers with rails EMED/ACC/S1607 & EMED/ACC/Z1607 Reference Standards The item was designed and manufactured by GIVAS SRL in compliance with the safety requirements of directive 93/42/CEE of 14.06.93 (class I) and further modifications to it, (Directive 2007/47/CEE), about...
  • Page 48 Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately. Operation and Use...

  • Page 49: Emed 1525 Roll Support

    10.7 EMED 1525 Roll Support E-MED/ACC/S1525 - Paper Roll Holder (E-MED 1500 Range) E-MED/ACC/Z1525 - Paper Roll Holder (E-MED 1600 Range) Technical Presentation The roll support is composed by a bar and two supports in chromium plated steel. Reference Standards The item was designed and manufactured by GIVAS SRL in compliance with the safety requirements of directive 93/42/CEE of 14.06.93 (class I) and further modifications to it, (Directive 2007/47/CEE), about...
  • Page 50 Before using the article: • Check if the article works correctly, with reference to the section in this manual called “Operation and Use”. • If the check is positive, the article is ready for use, otherwise call Sidhil customer service centre immediately.

  • Page 52: Certifications

    11. CERTIFICATIONS...

  • Page 53: Eec Declaration Of Conformity

    12. EEC DECLARATION OF CONFORMITY Supplier: Givas s.r.l Address: Viale Venti, 2 Z.A. 35020 Villatora di Saonara (PD) Products: BT1200: Slim two-section stretcher with adjustable height and- trendelenburg on columns. BT1400: Slim four-section stretcher with adjustable height and- trendelenburg on columns.
  • Page 54 CONTACT INFORMATION Tel: +44 (0) 01422 233000 Fax: +44 (0) 01422 233010 Email: sales@sidhil.com www.sidhil.com Sidhil Business Park, Holmfield, Halifax, HX2 9TN A member of the Siddall & Hilton Ltd. Group of Companies (93/42/EEC) Certificate No. FM14550 INSTRUC/EMED/1500/1602, 09/05/2016 - Rev.2...
