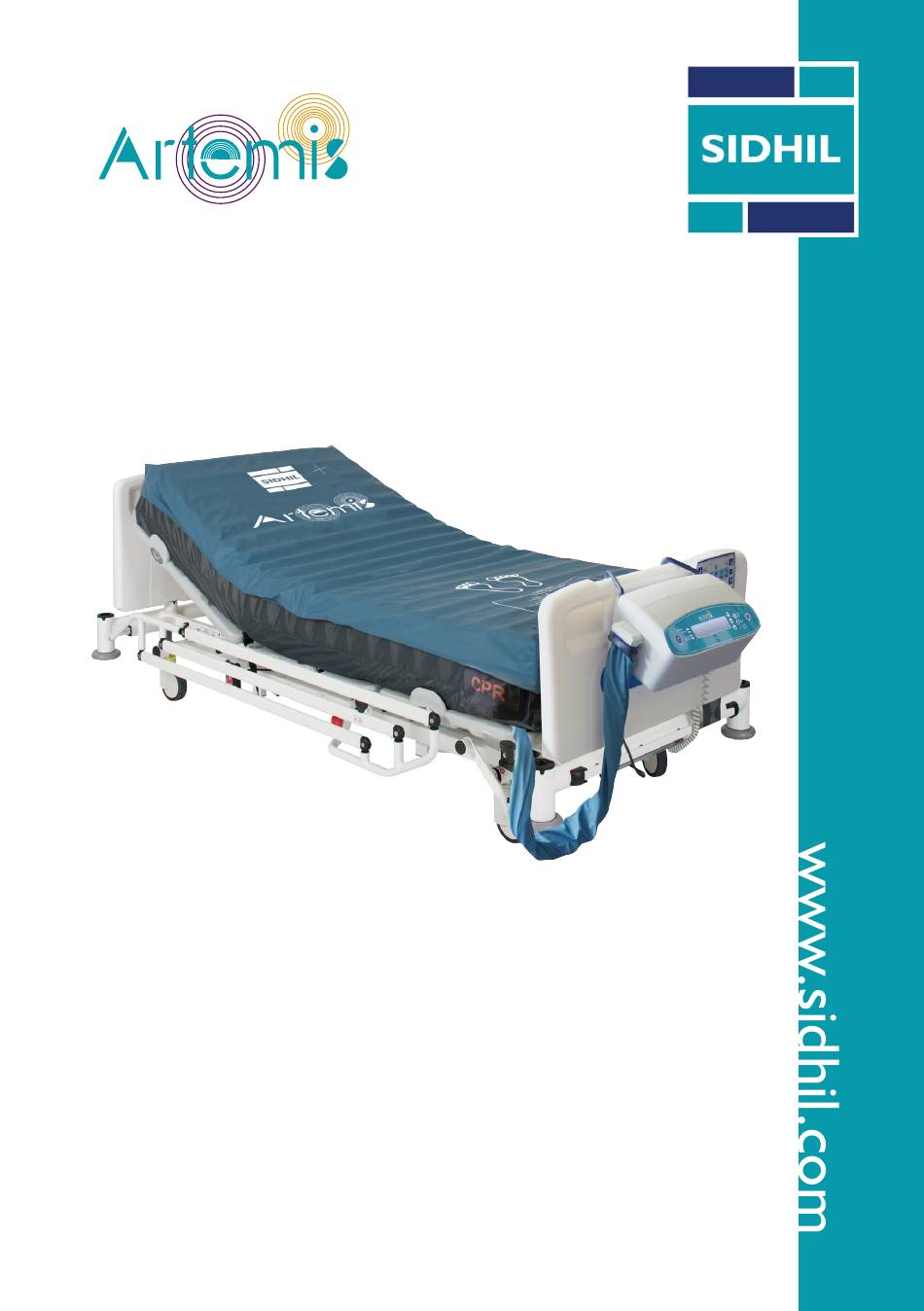

- Page 1 Dynamic Mattress Systems Instructions for use...
- Page 2 Corporate social responsibility sales, customer service and is also an issue for Sidhil. We logistics to provide clear have now received accreditation benefits for our customers to ISO 14001, underlining our in terms of flexibility, short...
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION.........................4 2. CONTACT INFORMATION....................4 3. PRODUCT DESCRIPTION....................5 Environment........................5 Intended Use........................5 Features........................5 4. SAFETY..........................6 Warnings and Cautions......................6 Risk Assessment........................6 Contraindicators.....................6 Mattress Load........................6 General Warnings........................7 5. TRANSPORT AND STORAGE..................8 Storage..........................8 Transportation......................8 Environmental Conditions....................8 6. SYMBOL DEFINITION....................9 7. PARTS IDENTIFICATION.....................10 8. INSTALLATION....................11 9. -
Page 4: Introduction
2. CONTACT INFORMATION For any service, warranty, sales or customer service information on this product please contact your provider or if in doubt contact Sidhil Ltd at the following address. Please quote the control unit and/or mattress serial number on all correspondence. -
Page 5: Product Description
3.2 Intended Use The Artemis dynamic mattress system is a high quality air support surface suitable for individuals at very high risk, those with up to and including grade 4 pressure ulcers, needing frequent monitoring and positioning. Via the automatic changing pressure in... -
Page 6: Safety
4. SAFETY 4.1 Warnings and Cautions Warnings in these instructions for use highlight potential hazards that if disregarded could lead to injury or death. Warning Cautions in these instructions for use highlight potential hazards that if disregarded could lead to equipment damage or failure. Caution 4.2 Risk Assessment Bed frames used with the mattress system can vary greatly depending on the specific... -
Page 7: General Warnings
Modification of the mattress or control box is not allowed without • the permission of Sidhil Ltd – A hazard could be introduced. • Occupants and users of this equipment must never smoke in close... -
Page 8: Transport And Storage
5. TRANSPORT AND STORAGE 5.1 Storage • Detach the control unit from the mattress. • Rotate the CPR dial until it is open. • Lay the mattress out flat and position upside down. • Ensure there is no air trapped in the cells – Note, air will only escape from the CPR outlet and not the mattress connector. -
Page 9: Symbol Definition
6. SYMBOL DEFINITION The following symbols are found on this bed: (See section 9.3 for interface symbols) Warning Beware of potential hazard Refer to instructions for use - Mandatory Failure to read the instructions for use could introduce a hazard W.E.E.E Label (Waste Electrical and Electronic Equipment) Refer to section 12.1... -
Page 10: Parts Identification
7. PARTS IDENTIFICATION Item Description Qty. Item Description Qty. Air Cell Control Interface Top Cover Hook Air Connector Mains Cable Port Mattress Strap Base Cover Air Connector (attached to mattress) CPR dial Air Filter Cover... -
Page 11: Installation
• Once removed from the packaging check product for any signs of damage. If damaged do not put into use and contact your provider or Sidhil Ltd. (see section • Remove all covers, sheets and the existing mattress from the bed. - Page 12 • Ensure the CPR dial is rotated to a vertical or horizontal, and closed, position. CPR Open: CPR Closed: • Position the control unit by hanging the hooks over the foot board. If there is no foot board place the unit on the floor with the front facing upwards. Ensure the rear of the unit is not obstructed by carpet, rugs etc.
- Page 13 • A CE marked extension cable must only be used when it is not possible to reach a wall socket with the equipment mains cable – Contact Sidhil Ltd for detail in regards to safe use of extension cables. •...
- Page 14 Consideration is to be taken in the positioning of the mains cable and air hose to minimise the risk of accidental strangulation resulting from patient, baby or child entanglement – Sidhil recommend the use of the mains cable routing sheath that is incorporated down the length of the mattress.
-
Page 15: Operation
9. OPERATION 9.1. Environmental Limits When in Operation The following conditions should be followed when operating the dynamic mattress system: • Ambient temperature: +5°C to +40°C. • Humidity: 15-93%, non-condensing. • Atmospheric pressure: 700 hPa to 1060 hPa 9.2. Preparing For Use Prior to patient usage of the dynamic mattress system the following must be performed: • Ensure the bed and mattress system are at room temperature. -
Page 16: Mattress Overview
9.5.1. Turning On / Off Hold the button down until an audible signal sounds for a brief period. The screen illuminates. Welcome to Sidhil Artemis Automatic Support Surface Initializing..Please wait until ready The system will be ready for use after an initial inflation period of 20minutes. Once the mattress is fully inflated the panel will instruct the user that the system is ready for use and a short audible signal will sound. -
Page 17: Patient Weight And Pressure
9.5.2.2. Patient Weight and Pressure When the system is determining the patient weight the control unit is also calculating the optimum pressure level for that weight of patient. The process occurs every 60 minutes or when the control unit detects a significant change in weight. The detection works by increasing the pressure in all cells to maximum and then decreasing them to the lowest possible supportive pressure where the patient weight is at its heaviest (i.e. -
Page 18: Mute
9.5.3.2. Mute The audio visual signal activates if a fault is detected. To silence the audible signal the ‘mute’ button is pressed. When the system is muted the screen shows: ****MATTRESS DISCONNECT**** MUTE Please make sure the connector is securely fastened. (note, fault shown is an example only) Re-pressing the mute button reactivates the audible signal. -
Page 19: Comfort Control
3) Pulsation: Creates tissue stimulus by alternately increasing and decreasing the cell pressure of the constant low pressure mode by 20% in each direction. When using the pulsation setting, to return to alternating it is necessary to manually reselect alternating from the therapy menu, it will not automatically default back. 4) Max inflate: Inflates the cells to maximum pressure (40mmHg) to provide a stable, static support surface. - Page 20 Use the up/down cursor key followed by the selection key to initiate the chosen setting. The lock is only to be disabled in an environment where intentional/ unintentional tampering cannot occur – Sidhil recommend that the lock is always set to ‘enable’ regardless of the environment. Warning...
- Page 21 5) Egress alert: If activated the pump provides an audio-visual signal if it senses that the occupant has got out of the bed, due to a sudden change in force being exerted on the cells. When selected a menu appears offering 2 different settings: 5: Egress Alert a: on b: off...
-
Page 22: Mattress Operation
9.6. Mattress Operation 9.6.1. Auto Seat Mode The mattress design allows for it to be profiled in an upright position. Pressure will be increased when the patient is sitting in an upright position but depending on patient comfort and clinical judgement the comfort setting may need to be changed. When the backrest travels beyond an angle of 20°... -
Page 23: Mattress Disconnection And Power Cuts
9.8. Mattress Disconnection and Power Cuts If the mattress is to be disconnected from the power supply for an extended period of time and the mattress is to remain inflated or in the event of a mains power failure, carry out the following procedure: • Disconnect from the power unit by pressing the tab on the top of the connector (1) and pulling away from the control unit (2). -
Page 24: Decontamination / Cleaning
Caution Sidhil recommend the use of Tristel ‘Fuse’ sachets and Tristel ‘Jet’ gel. Sidhil also recommend the use of Chlor-clean tablets. Follow the product documentation for concentration guidelines and instructions for use. -
Page 25: Mattress
10.2. Mattress Before attempting to clean the mattress the top cover is to be checked for physical signs of damage that may lead to strike-through (ingress of fluid through cover). This is achieved by unzipping the top cover and looking for signs of staining to the white underside. -
Page 26: Troubleshooting
TROUBLESHOOTING The control unit is not to be opened – risk of electrocution. Warning Symptoms Indications Actions • Power Failure Amber ‘power If mains plug, cable or outer casing is visibly damaged failure’ light flashes. turn off at the mains and contact your approved •... - Page 27 Symptoms Indications Actions • High Pressure Audible signal Ensure the mattress umbilical is not trapped or sounds. being squeezed. • Screen shows: Open the mattress and ensure none of the air pipes are kinked. Warning! Turn the unit off and then on again to clear the indicator.
-
Page 28: Maintenance
For more detailed service information, spare parts, circuit diagrams etc. please refer to the service manual. Copies are available from Sidhil Ltd. Contact details can be found in section 2. -
Page 29: Disposal Of Parts
Disposal of Parts When the electrical system has come to the end of its useful life contact your provider or Sidhil Ltd (see section 2) to arrange for collection, alternatively follow local recycling and W.E.E.E. (Waste Electrical and Electronic Equipment) policies. -
Page 30: Specification
SPECIFICATION Classification: Electrical shock protection: Class I, Type BF Applied Part: Mattress Liquid ingress protection: IP21 Not AP or APG equipment* Supply Rating: 230V, 50Hz, 25W Fuse Rating: Mains Plug – 13A Mains Plug: Type G/BS1363 Mattress Dimensions: (L) 2000mm x (W) 880mm x (D) 200mm Mattress Weight: 11kg Maximum Patient Weight:... -
Page 31: Electromagnetic Compatibility (Emc)
EMC. The Artemis is to be installed and put into service according to the information provided within this section to ensure continued and reliable operation. -
Page 32: Requirements According To Iec 60601-2:2007
Requirements According to IEC 60601-2:2007 The Artemis is intended for use in the electromagnetic environment specified below. The customer or the user of the Artemis should ensure that it is used in such an environment. The Artemis control unit should not be used adjacent to or stacked... - Page 33 5 cycles environment. If the user on power supply 70% U (30% dip in U 70% U (30% dip in U of the Artemis requires input lines for 25 cycles for 25 cycles continued operation during IEC 61000-4-11 <5% U (>95% dip in U...
- Page 34 If the measured field strength in the location in which the Artemis is used exceeds the applicable RF compliance level above, the Artemis should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienteering or relocating the Artemis.
- Page 35 The Artemis is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Artemis can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Artemis as recommended below, according to the maximum output power of the communications equipment.
-
Page 36: Warranty
Sidhil Ltd guarantees this product is free from defects in material and workmanship under normal use for 2 years (full parts and labour) from the date of purchase from Sidhil Ltd and its subsidiary companies or its authorised dealers. All implied warranties, including but not limited to those implied warranties of fitness and merchantability, are limited in the total duration of 2 year from date of purchase. - Page 40 CONTACT INFORMATION Tel: +44 (0) 01422 233000 Fax: +44 (0) 01422 233010 Email: sales@sidhil.com www.sidhil.com Sidhil Business Park, Holmfield, Halifax, HX2 9TN A member of the Siddall & Hilton Ltd. Group of Companies (93/42/EEC) Certificate No. FM14550 INSTRUC/ARTEMIS, 21/07/2015 - Rev.1...
