Vents-us TWINFRESH COMFO Installation Manual

INSTALLATION GUIDE

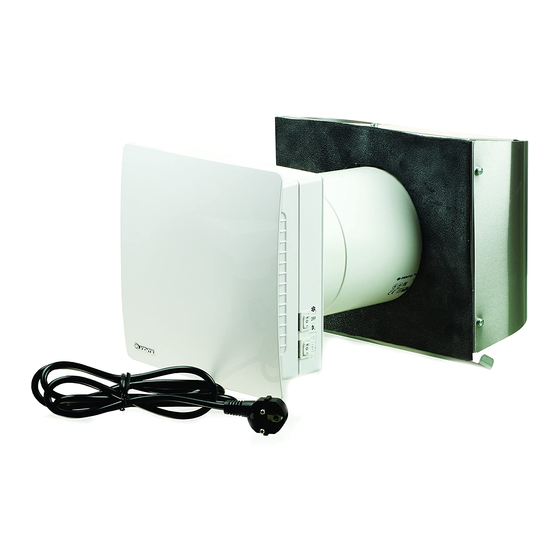

SINGLE-ROOM REVERSIBLE ENERGY REGENERATION VENTILATOR
TWINFRESH COMFO:
RA1-50-2

INSTALLATION

Pencil Drill Ø6 mm (1/4''), 40 mm (1 9/16'')

MOUNTING

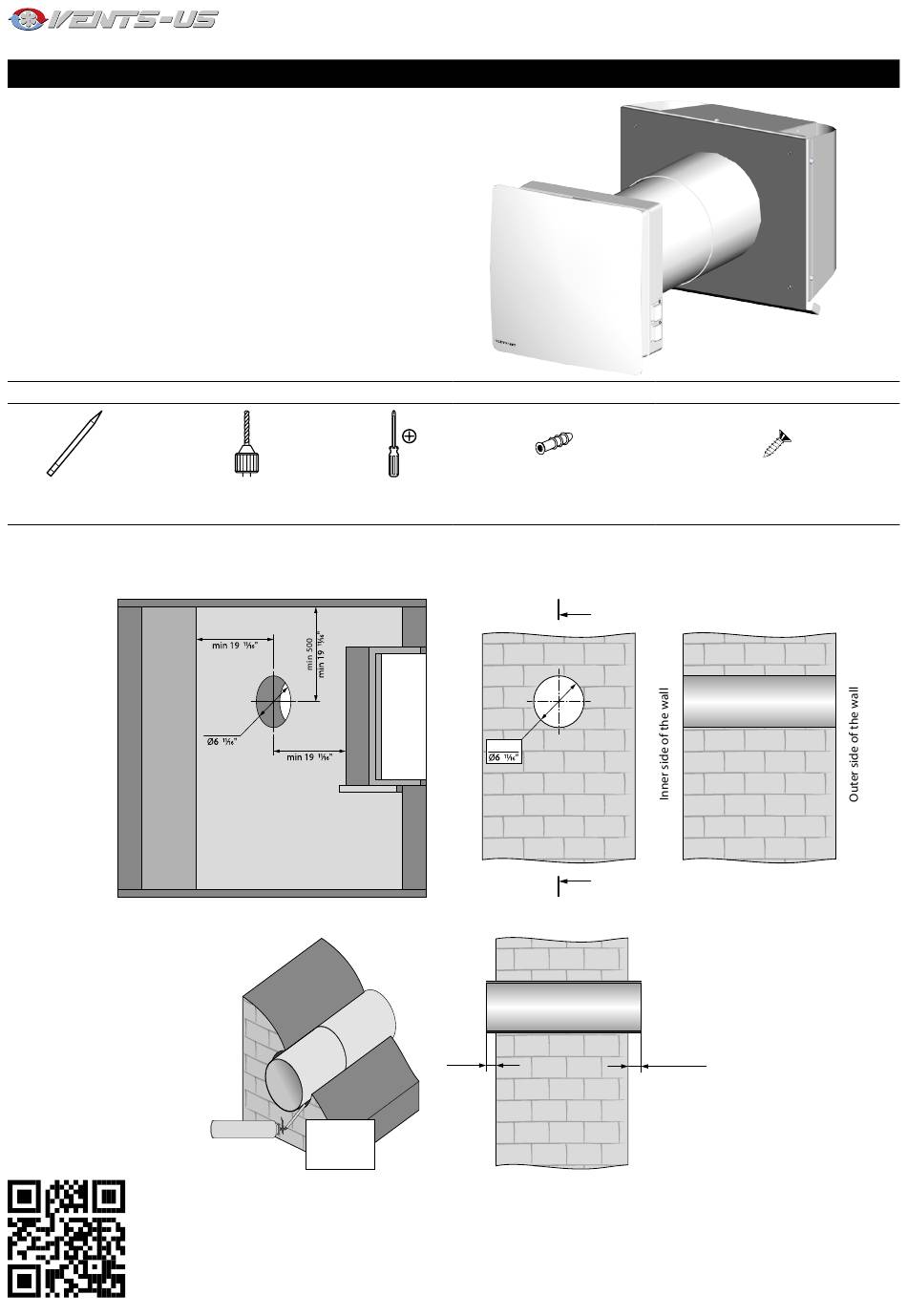

1. Prepare a round core hole in the outer wall. The hole size is shown in the figure below. While preparing a core hole it is recommended to make preparations for layout of the
power cable and other required cables.
2. Install the telescopic air duct inside the wall. centre the air duct using the mounting plate and seal it with mounting foam.
