INSTALLATION GUIDE

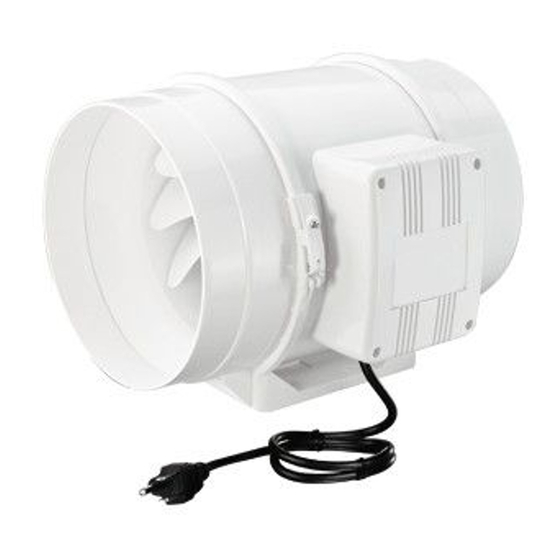

INLINE MIXED-FLOW FANS
TT 100/125/150/200/250/315
INSTALLATION
Pencil

MOUNTING

Fans may be mounted either vertically or horizontally. An air duct at least 40 inches long should be connected to an inlet flange in case of horizontal fan mounting; a canopy
should be installed on an inlet flange in case of vertical mounting. Outlet flange should always be connected to an air duct.
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
www.ventsus.com
Drill
Typical installation of the fan
min 40 inch
min 40 inch

Tools required

Screwdriver
Dowel (4 pcs.)
Screws (4 pcs.)
MIU_05-01
