ntroduction and Functional Description
We congratulate you on the purchase of your new Hetronic ERGO F21 transmitter. You have chosen a high quality product.
Familiarise yourself with the unit before using it for the first time. In addition please adhere carefully to the operating instructions
and the safety advise given in this manual. Only use the product as instructed and only for the intended field of application. Keep
this instruction manual in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the
documentation with it.
NOTE: This manual does not cover the Ex version of ERGO F21 transmitters for hazardous explosive environments.
2.1 Production and System Numbers
Before contacting your dealer or Hetronic about service, repair or replacement parts, note the equipment Production and System
numbers. These numbers are located on the silver label affixed to the unit.
2.2 Before Operating Your Wireless Control Unit
Confirm that installation of all your system components has been properly completed. Before start up, ALWAYS confirm that the
machine and radio remote control Stop functions work properly.
Understand all Safety Precautions provided in the manuals and review control functions and operation of the machine and this
radio remote control system. When not in use, turn the transmitter off and store in a safe place to prevent unauthorized use.
Ensure that the USB Dongle (which acts as a security key to program the transmitter) is kept in a separate but safe and secure
place. If the machine does not respond properly, immediately stop operation. Turn off the transmitter and report the condition to
your supervisor.
Turn off the transmitter before any maintenance work is done. Always have fully charged batteries on hand or an optional
rechargeable battery pack in the battery charger to ensure the availability of a fully charged battery. Installation, setup and service
must be performed by authorized and qualified personnel only.
2.3 Unit Labels
2.3.1 Blank Rating Plate
1. Specific approvals, such as CE, FCC, IC, etc.
2. Type: ERGO F21
3. Eleven-digit Production Number
4. Eleven-digit System Number
5. Ingress Protection Rating
6. Frequency information
7. Supply voltage
8. Current rating
2.3.2 Read User Manual
The "Read User Manual" symbol on the transmitter acts as a reminder for the user to thoroughly read
through the manual before attempting to operate the system. This manual must always be placed in a
safe and easily accessible place when not being used for when there is the need to refer to it.
USER MANUAL |

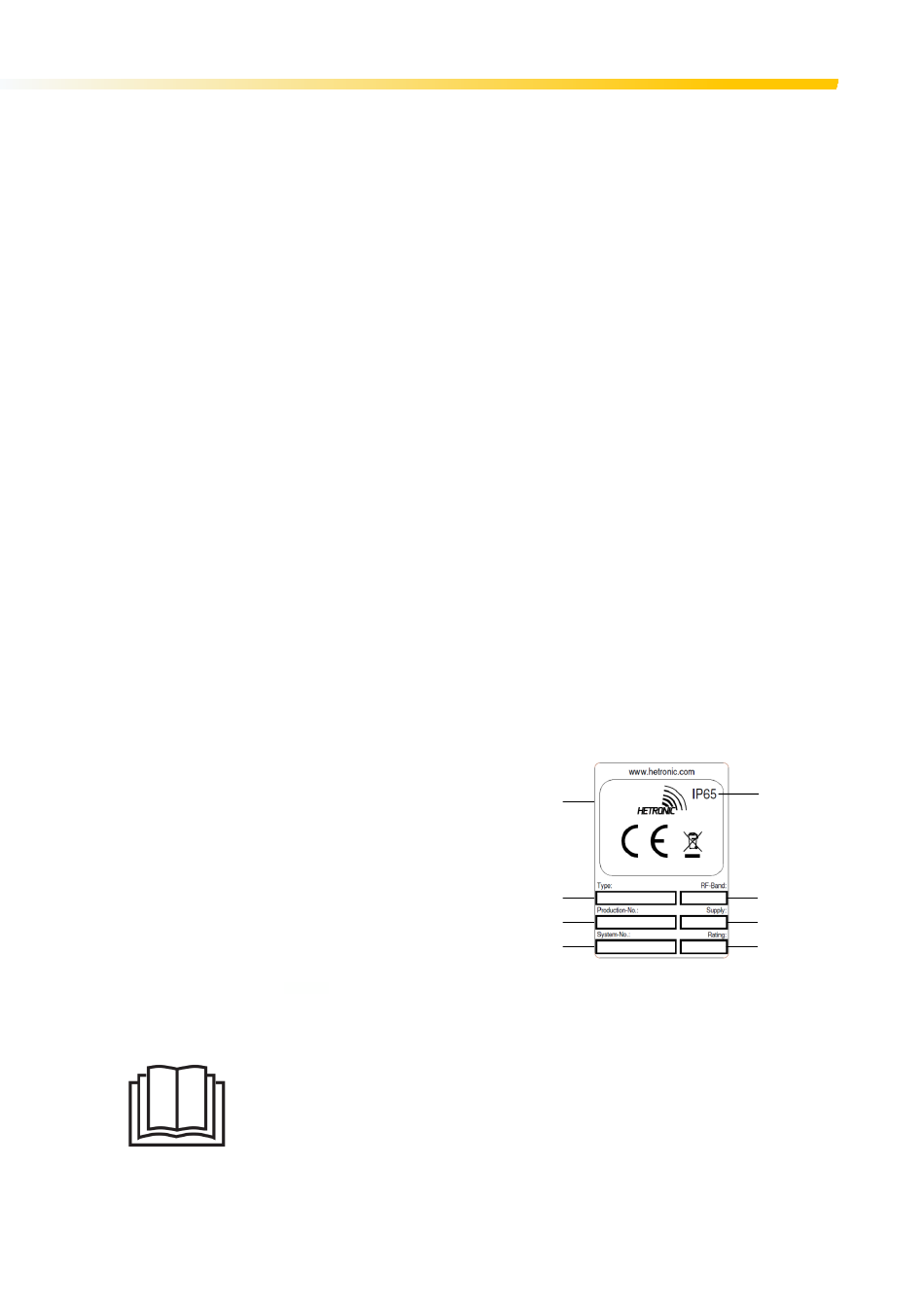

Figure 1. Product Rating Plate
6
ERGO F21
