- Page 1 ADL3000-E-B Installation and operation instruction V1.0 ACREL Co,.Ltd...
- Page 2 Declare The copyright is the property of Acrel. Any information in any paragraph or section cannot be extracted, copied or otherwise reproduced or propagated. Otherwise offenders shall take all consequences. All rights are reserved. Acrel reserves the right to modify the product specifications herein without notification.
-
Page 3: Table Of Contents
Content 1 General ............................1 2 Type description ..........................1 3 Function description ........................1 4 Technical parameter ........................2 5 Outline ............................2 6 Wiring and installing ........................3 7 Function description ........................8 8 Operation and display ........................ 8 9 Communication description ....................10... -
Page 4: General

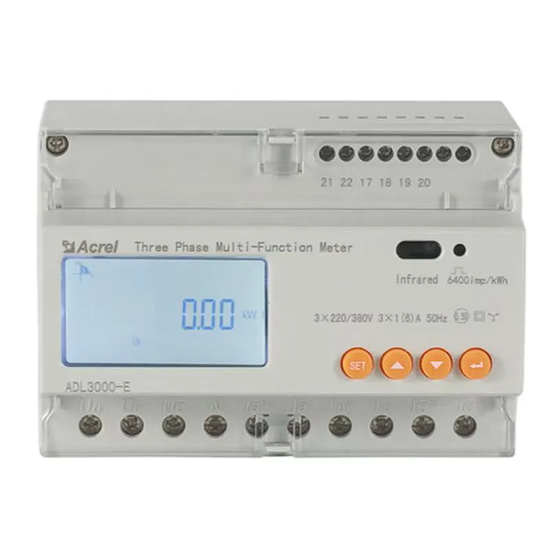

1 General ADL3000-E-B is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all... -
Page 5: Technical Parameter
“■” means standard, “□” means optional. Note: Harmonic is a standard while choosing outlay transformer, optional for another situation. 4 Technical parameter Specification 3 phase 4 wires, Earthed Reference voltage 3～66/115V、3～220/380V(Two sizes) Input voltage ±30% torlanc Voltag <10VA (Single phase) Consumption (Rate current or power for power input <10VA(Single phase)) Impedance... -
Page 6: Wiring And Installing
Fig 1 connect via CT Note : Labels can only be wiped with dry cloth. 6 Wiring and installation 6.1 Safety instruction Information for your own safety This manual does not contain all of the safety measures for operation of the equipment (module, device), because special operating conditions, and local code requirements or regulations may necessitate further measures. - Page 7 6.2 Wiring sample of voltage and current Ua Ub Uc Fig 2 Three phase four lines connect via CT Note : 1. ADL3000-E-b can adopt one access method: three-phase four wire. 2. One end of the transformer needs to be grounded (Fig2). product drawing Port...
- Page 8 Ib Currten Input Ib Currten Output Ic Currten Input Ic Currten Output Recommended cross section：1...16 mm2 (17...5 AWG) The necessary torque is 2 N•m (18 lb-in) . WARNING Use copper wire rated for 500V. Minimum temperature rating of the cable to be connected to the field wiring terminals, 80 °C. ...
- Page 9 or equipment damage. AVERTISSEMENT Utilisez un fil de cuivre évalué pour 500V. Température nominale minimale du câble à connecter aux bornes de câblage sur le terrain, 80 °C. Le non-respect de ces instructions peut entraîner la mort, des blessures graves ou des dommages à...
- Page 10 Fig 4 Communication, Swtich input The switch input adapts the method of on-off signal input and powered by outer power supply. It can be gotten by meter when there is a change of on or off via a switching input module. The parameter of switching input can not only get and show the state of local switching information but also achieve the communication via RS485, which called “remote information”...
-
Page 11: Function Description
8 Function description 8.1 Measurement The meter can measure all electrical parameters such as voltage, current, active power, reactive power, apparent power, power factor, frequency, 31 harmonic and total harmonic. The value format of voltage, current, frequency and power are listed as below. Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW 8.2 Calculating The meter can calculate the current active energy, forward active energy, reversing active... - Page 12 A, B, C phase. Note: 1 All the display menus above are in the model of ADL3000-E-B three phases four lines with multi-tariff rate function and can be changed by the keys. 2 There will not be power or power factor on each phase and will only show total power and power factor (Active, reactive, apparent) under the three phase three lines.
-
Page 13: Communication Description
“0000”, and enter the code. If you enter a wrong code, it will show “fail” and back to main menu; and if you enter a right code, you can set the parameter. After setting the parameter and press , it will show “save” and save the change by pressing in “yes”... - Page 14 10.1 ADDR list MODBUS-RTU protocol has 03H and 10H command to read and write registers respectively. The following chart is registers’ address list: Address Variable Length Notes E=data*PT*CT*0.0 0000H Current total active energy Data：data read in 000AH Current forward active total energy the communication, Pt：voltage ratio 0014H...
- Page 15 0078H Voltage between A-B U=data*PT*0.1 0079H Voltage between C-B Unit:V 007AH Voltage between A-C 0087H Forward active energy of A phase 0089H Forward active energy of B phase 008BH Forward active energy of C phase 008DH Voltage transfer(PT) 008EH Current transfer(CT) State of DIDO, over-voltage, loss- 008FH voltage...
- Page 16 017FH Total power factor 10.2 Sub harmonic data ADL3000-E-B has function of harmonic. The function include 31 harmonic statistics of voltage and current, harmonic voltage and current of each phase apparently, harmonic active/reactive power of each phase apparently, fundamental voltage and current of each phase apparently and fundamental active/reactive power of each phase apparently.
- Page 17 0601H THUb × × 061FH THUc Keep 3 decimal places 063DH THIa Harmonic current on × 065BH THIb × × 0679H THIc Keep 2 decimal places 0697H Fundamental voltage on A phase 0698H Fundamental voltage on B phase 0699H Fundamental voltage on C phase 069AH Harmonic voltage on A phase Keep 1 decimal places...
- Page 18 06B2H Total harmonic reactive power...
