Acrel ADL400 Installation And Operation Instruction

ADL400
Installation and operation instruction V1.0
1 General

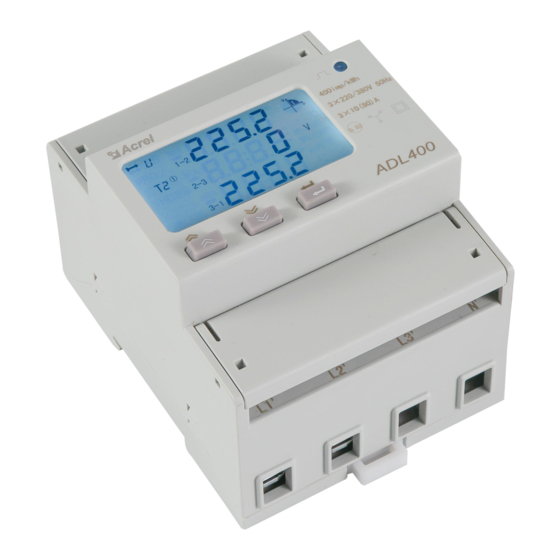

ADL400 is a smart meter designed for power supply system, industrial and mining
enterprises and utilities to calculate the electricity consumption and manage the electric
demand. It features the high precision, small size and simple installation. It integrates the
measurement of all electrical parameters with the comprehensive electricity metering and
management provides various data on previous 48 months, checks the 31st harmonic content
and the total harmonic content, realizes the remote communication and the remote control
with switching input and relay output and boasts the alarm output. It is fitted with RS485
communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of
control systems, SCADA systems and energy management systems. The meter meet the
related technical requirements of electronic meter in the IEC62053-21standards.
2 Function
Function Function description
Active kWh (positive and negative)
Measurement
Reactive kWh (positive and
of kWh
negative)
U、I
Measurement
of electrical
P、Q、S、PF、F
parameters
Measurement
of harmonics harmonic
12 bits section LCD display,
LCD Display
background light
Key 3 keys to communication and set
programming parameters
Pulse output Active pulse output
Adapt 4 time zones, 2 time int erval
lists, 14 time interval by day and 4
tariff rates
Max demanded kWh and time
Multi-tariff a nd
happened
functions
Frozen data on las t 48 months, last
90days
Date, time
Communication interface: RS485,
Communication Communication protocol:
MODBUS-RTU
3 Technical parameter
Specification
Reference Voltage
Measure Volt
ment age
Consumption
Impedance
Accuracy class
Curr Input current
ent
Consumption
Accuracy class
Power
Frequency
Measure Energy
ment
Clock
Digital Energy pulse output
signal
Width of pulse
Pulse
Pulse constant
Interface and communication
Commun
Range of communication
ication
address
Baud rate
Environ Relative temperature
ment
Relative humidity
CT Operated Meter
Function provide
3 phase 3 wires, 3 phase 4 wires
3x100V, 3x380V, 3x57.7V, 3x220/380V
<10VA(Single phase)
>2M
Error ± 0.2%
3 × 1(6)A ， 3 × 10(80)A
<1VA(Single phase rated current)
Error ± 0.2%
Active, reactive, apparent power, error ± 0.5%
45 ～ 65Hz ， Error ± 0.2%
Active energy (Accuracy class: 0.5, 1)
reactive energy (Accuracy class 2)
≤ 0.5s/d
1 active photocoupler output
80±20ms
1000imp/kWh,10000imp/kWh (Correspond
with the basic current
RS485 ： Modbus RTU
Modbus RTU:1~ 247
1200bps~19200bps
-25 ℃ ~+55℃
95% (No condensation)
4 Dimension drawing
■
■
■
■
□
■
Note：The torque of connect via CT should not be greater than 2.0N·m。
■
5 Wiring and installing
■
5.1 Wiring sample of voltage and current
□
□
L1
□
L2
■
L3
Neutral
Three phase four lines connect via CT
5.2 Switching input, output, NTC temperature measurement
Communication, pulse connection
6 Function description
6.1 Measurement
It can measure the electrical parameter,include U、I、P、Q、S、PF、F、1~31th
harmonic。 Such as:U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
6.2 Calculating
Can measure the active energy, reversing active energy, forward reactive energy,
reversing reactive energy
6.3 Demand
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active,
inductance performance reactive, capacitance performance reactive maximum demand
and the occur time.
Demand
Maximum demand Slip time The maximum value of demand in a period of time.
Dem and cycle
L1 L2 L3 Neutral
L1S1 L1S2
The average power in the demand cycle.
The time period between two same average value of
demand
L2S1 L2S2 L3S1 L3S2
