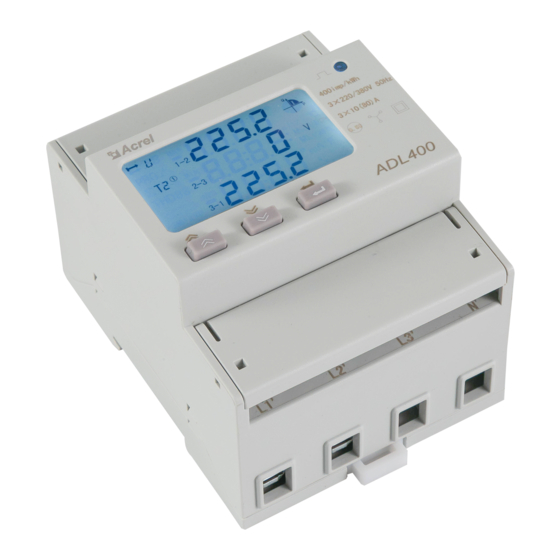

Acrel ADL400 Installation And Operation Instruction Manual

Hide thumbs Also See for ADL400:

Advertisement

Quick Links

359
ADL400
安装使用说明书 V1.4
Installation and operation instruction V1.4
安科瑞电气股份有限公司
ACREL Co,.Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADL400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acrel ADL400

Summary of Contents for Acrel ADL400

  • Page 1 ADL400 安装使用说明书 V1.4 Installation and operation instruction V1.4 安科瑞电气股份有限公司 ACREL Co,.Ltd...
  • Page 2 申明 版权所有，未经本公司之书面许可，此手册中任何段落、章节内 容均不得摘抄、拷贝或以任何形式复制、传播，否则一切后果由违者 自负。 本公司保留一切法律权利。 The copyright is the property of Acrel. Any information in any paragraph or section cannot be extracted, copied or otherwise reproduced or propagated. Otherwise offenders shall take all consequences. All rights are reserved. 本公司保留对本手册所描述之产品规格进行修改的权利， 恕不另...
  • Page 3 说明书修订记录 日期 旧版本 新版本 修改内容 Data Change 2019.11.13 V1.0 第一次编写 First version 2020.04.30 V1.0 V1.1 标题 6.2 处更改 Title 6.2 changes 2020.08.24 V1.1 V1.2 图 4 图 6 更改 Figure 4 Figure 6 Changes 2021.04.08 V1.2 V1.3 按键设置流程图修正 Correction of key setting flow chart 2022.9.22 V1.3 V1.4...

  • Page 4: Table Of Contents

    目 录 Catalog 1 概述 General ............- 1 - 2 型号说明 Type description ..........- 1 - 3 功能列表 Function description ..........- 1 - 4 技术参数 Technical parameter ..........- 2 - 5 外形尺寸 Outline ............- 4 - 6 接线与安装...

  • Page 5: 概述 General

    It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electronic meter in the IEC62053-21standards.

  • Page 6: 技术参数 Technical Parameter

    有功电能计量（正、反向） ■ Active kWh (positive and negative) 电能计量 无功电能计量（正、反向） Measurement Reactive kWh (positive and ■ of kWh negative) A、B、C 分相正向有功电能 ■ U、I 电量测量 ■ Measurement of electrical P、Q、S、PF、F ■ parameters 2~31 次谐波电压电流 谐波测量 Measurement 2~31 Voltage and current ■ of harmonics harmonic 12 位段式...
  • Page 7 表 2 技术参数说明 Table 2 technical parameter descriptions 项目 性能参数 规格 三相四线 Specification 3 phase 4 wires 参比电压 Reference 3×230/400V voltage 电 功耗 压 <10VA(单相)(Single phase) Consumption 阻抗 >2MΩ Impedance 精度等级 测 误差±0.2%（Error±0.2%） Accuracy class 量 Measur 输入电流 0.1-10(80)A(直接接入 Direct access model) 电...

  • Page 8: 接线与安装 Wiring And Installing

    ment 工作温度 -40℃ to +70℃（直接接入 Direct access model) Relative temperature 相对湿度 ≤95℅（无凝露）(No condensation) Relative humidity IP51 防护等级 IP Rating Must be installed in a suitable IP rated enclosure 5 外形尺寸 Dimension drawings 图 1 直接接入 Fig1 direct connect 注：直接接入的接线力矩应该在 3-4N·m，经互感器接入的接线力矩应该在 1.5-2N·m。 Note：The torque of direct connect should be 3-4N·m，and the torque of connect via CT should be 1.5-2N·m.

  • Page 9: 主要功能特点 Function Description

    Fig2 Three phase four lines connect via CT 图 3 三相四线直接接入 Fig 3 Three phase four lines direct connect 注： 1. 标准 35mm 导轨条安装（无需维护、修理、调整）； 2. 根据 2014/32/EU 指令，仪表拟安装在机械环境“M1”中，冲击和振动的重要性较低； 3. 根据 2014/32/EU 指令，仪表拟安装在电磁环境“E2”中。 Note： 1.Installation of standard 35mm guide rail ( No maintenance,repair or adjustment intended ) 2.The meter is intended to be installed in a Mechanical Environment‘M1’, with Shock and Vibrations of low significance, as per 2014/32/EU Directive.

  • Page 10: 操作与显示 Operation And Display

    如：U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW Such as:U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW 7.2 计量功能 Calculating 能计量当前组合有功电能，正向有功电能，反向有功电能，正向无功电能，反向无功电 能。 Can measure the active energy、reversing active energy、forward reactive energy、reversing reactive energy。 7.3 分时功能 Timing 两套时段表，一年可以分为...
  • Page 11 8.1 按键功能说明 Key function description 表 4 按键功能说明 Table 4 Key’s function description 按键图标 按键名称 按键功能 icon Name Function 查看界面中查看电压电流 电压电流类 编程界面中上翻及闪烁移位 Check the voltage and current 向上键 Voltage and current, up Leftward and change flash in programming menu 查看界面中查看功率 功率类...
  • Page 12 三相电压谐波含量 三相电流谐波含量 Harmonic content of three phase Harmonic content of three phase Voltage Current 相位角 时间 Phase angle Time 校验位、波特率、表地址 Check bit, baud rate, table address, 软件版本号、软件唯一识别码、全显检测； software version number, Software unique identifier，full display detection; 三相有功功率 总有功功率 Three phase active power Total active power - 8 -...
  • Page 13 三相无功功率 总无功功率 Three phase reactive power Total reactive power 三相视在功率 总视在功率 Three phase apparent power Total apparent power 三相功率因数 总功率因数 Three phase power factor Total power factor T3 represents the normal period, ① represents the first time table 当前组合有功总电能 当前组合有功尖电能 Current total active energy Current spike active energy 当前组合有功峰电能...
  • Page 14 当前组合有功谷电能 当前正向有功总电能 Current valley active energy Current forward active total energy 当前反向有功总电能 当前组合无功总电能 Current reversing active total energy Current total reactive energy 当前组合无功尖电能 当前组合无功峰电能 Current reactive spike energy Current reactive peak energy 当前组合无功平电能 当前组合无功谷电能 Current reactive flat energy Current reactive valley energy 当前正向无功总电能...
  • Page 15 A phase on B phase 当前正向 C 相有功总电能 Current forward active energy on C phase 说明： 1、以上所列为 ADL400 三相四线带有复费率功能的仪表所有显示界面名称，三个按键 可切换不同类型的显示内容，切换顺序如上所述； 2、对于 ADL400 不带有复费率功能的仪表，不显示日期、时间及各类的分时电能（即 尖、峰、平、谷四种费率时段的电能）。 Note: 1 All the display menus above are in the model of DTSD1352 three phases four lines with multi-tariff rate function and can be changed by the keys.
  • Page 16 to main menu; and if you enter a right code, you can set the parameter. After setting the parameter and keep press , it will show “save” and save the change by pressing in “yes” interface and quit without save by pressing in “no”...

  • Page 17: 通信说明 Communication Description

    通讯地址设置 ADDR Communicate’s ADDR 1-254 settings 1200、2400、4800、 波特率选择 Baud Baud choose 9600、19200 校验选择 Pari None、Odd、Even Parity choose 1-255 分钟， 大于 250 为常亮 背光时间设置 0-255minutes，more Backlight time than 250 stay light-on 3P4L:三相四线 3 phase 4 wires 网络选择 Wiring sample 3P3L:三相三线 3 phase 3 wires 电流方向...
  • Page 18 一种颜色，“B”端接另一种颜色。 4、 RS-485 总线(从上位机通信口开始到任一被连接的仪表终端通信口)长不超过 1200 米。 Note: 1、Wiring should follow the wiring requirements; 2、Connect all the meter in the RS485 net work even some do not need to communication, which is benefit for error checking and testing; 3、Use two color wires in connecting wires and all the A port use the same color. 4、No longer than 1200 meters of RS485 bus line.
  • Page 19 data shall be multiplied energy by the corresponding 当前反向总有功电能 transformation ratio.) 0014H Current reversing active total If the electric energy electric energy value is 1234, Pt is 当前反向有功尖电能 10,CT is 20,Then E = 0016H Current reversing active spike 1234 * 0.01* 10 * 20 electric energy =2468.00kwh .Other 当前反向有功峰电能...
  • Page 20 electric energy 当前反向总无功电能 0032H Current reversing reactive total electric energy 当前反向无功尖电能 0034H Current reversing reactive spike electric energy 当前反向无功峰电能 0036H Current reversing reactive peak electric energy 当前反向无功平电能 0038H Current reversing reactive flat electric energy 当前反向无功谷电能 003AH Current reversing reactive valley electric energy 003CH 时间：秒、分...
  • Page 21 Third time zone start data:day 第 3 时区起始日期：月 第 4 时区时段表号 0045H Third time zone start data:month Fourth time zone time period table serial number 第 4 时区起始日期：日 第 4 时区起始日期：月 0046H Fourth time zone start data:day Fourth time zone start data:month 1-8时段参数设置信息...
  • Page 22 0074H B 相功率因数 分辨率：0.001 Power factor of B phase Complement form 0075H C 相功率因数 Power factor of C phase Resolution：0.001 0076H 总功率因数 Total power factor 分辨率：0.01 0077H 频率 frequency Resolution：0.01 0078H A-B 线电压 Voltage between A-B 0079H C-B 线电压 Voltage between C-B 007AH A-C 线电压...
  • Page 23 Forward active electric energy of A phase B 相正向有功电能 0089H Forward active electric energy of B phase C 相正向有功电能 008BH Forward active electric energy of C phase 008DH 008EH 008FH 保留 Reserve 0090H 保留 Reserve 0091H 运行状态 Running state 0092H 零序电流...
  • Page 24 0-255 分钟，大于 250 常亮 00CAH 背光时间 The back light time 0-255minutes，more than 250 stay light-on 00CBH-0120H 保留 Reserve 日冻结时间:时 0121H Daily frozen time:Hour 月冻结:日、时 0122H Monthly frozentime:day、hour 0123H-0163H 保留 Reserve 0164H A 相有功功率 Active power of A phase 补码形式 0166H B 相有功功率...
  • Page 25 Resolution：0.001 Occur time:minute、hour Occur time:minute、 上 1 日正向有功最大需量 0188H hour Maximum forward active demand last day 发生时间：分、时 0189H Occur time:minute、hour 上 1 日反向有功最大需量 018AH Maximum reversing active demand last 发生时间：分、时 018BH Occur time:minute、hour 上 1 日正向无功最大需量 018CH Maximum forward reactive demand last 发生时间：分、时...
  • Page 26 当前正向无功需量 019AH Current forward reactive demand 当前反向无功需量 019BH Current reversing reactive demand 019BH-01FFH 保留 Reserve A 相电压极大值 0200H Maximum voltage on A phase 发生时间：月、日 0201H Occur date：month、day 发生时间：时、分 0202H Occur time：hour、minute B 相电压极大值及发生时间 0203H Maximum voltage on B phase and occur time C 相电压极大值及发生时间...
  • Page 27 Maximum reactive power on B phase and occur time C 相无功功率极大值及发生时间 022AH Maximum reactive power on C phase and occur time 总无功功率极大值及发生时间 022EH Maximum reactive power and occur time A 相视在功率极大值及发生时间 0232H Maximum apparent power on A phase and occur time B 相视在功率极大值及发生时间...
  • Page 28 F008H 版本号 The software version 9.2 历史电能冻结时间设定及历史电能数据 History energy frozen time and history energy energy date ADL400 日冻结时间设定寄存器、月冻结日期设定寄存器。 ADL400’s registers on frozen by day and by month. 表 9 冻结时间通讯地址表 Table 9 Frozen time communicate address 地址 名称 Name 备注 Note Address 无效...
  • Page 29 ADL400 能统计上 90 日的历史电能（各费率电能）。 历史电能只能通过块读取，长度为 120 个字节(60 个寄存器)，每块的顺序和内容如下： ADL400 can achieve the history energy statistic in last 48 months and last 90days. (Each tariff rate of energy can be recorded.)The history energy record can only be read by assemblage and the length of whole part is 120 byte (60 registers), and list below is the registers’ name: 表...
  • Page 30 反向有功峰电能 0010H Peak reversing active energy 反向有功平电能 0012H Flat reversing active energy 反向有功谷电能 0014H Valley reversing active energy 正向总无功电能 0016H Total forward reactive energy 正向无功尖电能 0018H Spike forward reactive energy 正向无功峰电能 001AH Peak forward reactive energy 正向无功平电能 001CH Flat forward reactive energy 正向无功谷电能...
  • Page 31 9.3 分次谐波数据 ADL400 可选配谐波测量，统计分相 31 次谐波电压电流、总谐波畸变率、分相谐波电 压电流、分相谐波有功功率无功功率、分相基波电流电压、分相基波有功功率无功功率。 ADL400 has function of harmonic. The function include 31 harmonic statistics of voltage and current, harmonic voltage and current of each phase apparently, harmonic active/reactive power of each phase apparently, fundamental voltage and current of each phase apparently and fundamental active/reactive power of each phase apparently.
  • Page 32 地址 名称 长度(字节) 备注 Address Name Length(Bit) Note 05DDH THDUa 分相电压电流总畸变率 05DEH THDUb 整形 05DFH THDUc 保留 2 位小数 Total distortion rate of voltage 05E0H THDIa and current on each phase 05E1H THDIb Keep 2 decimal places 05E2H THDIc 05E3H THUa 电压分相...
  • Page 33 B 相谐波电流 06A1H Harmonic current on B phase C 相谐波电流 06A2H Harmonic current on C phase A 相基波有功功率 06A3H Fundamental active power on A phase B 相基波有功功率 06A4H Fundamental active power on B phase C 相基波有功功率 06A5H Fundamental active power on C phase 总基波有功功率...
  • Page 34 Harmonic reactive power on C phase 总谐波无功功率 06B2H Harmonic reactive power 9.3 SOE 事件记录 SOE record 地址 名称 数据顺序 名称 Address Name Data list Name 上 1 次事件记录 事件发生：年-月 3001H 0000H Last event record Occur date: YY-MM 上 2 次事件记录 事件发生：日-时...
  • Page 35 Bit0:A 相过压； Over-voltage on A phase Bit1:B 相过压； Over-voltage on B phase Bit2:C 相过压； Over-voltage on C phase Bit3:A 相失压； Lose-voltage on A phase Bit4:B 相失压； Lose-voltage on B phase Bit5:C 相失压； Lose-voltage on C phase Bit6:A 相逆向； Reversing on A phase UI 事件记录...
  • Page 36 传真：0086-21-69158303 Fax: 0086-21-69158303 网址：www.acrel-electric.com Web-site: www.acrel-electric.com 邮箱：ACREL008@vip.163.com Email：ACREL008@vip.163.com 邮编：201801 Postcode: 201801 生产基地：江苏安科瑞电器制造有限公司 Manufacturer: Jiangsu Acrel Electrical Manufacturing Co., LTD. 地址：江苏省江阴市南闸街道东盟工业园区东盟路 5 号 Address： No.5 Dongmeng Road,Dongmeng industrial Park, Nanzha Street,Jiangyin City,Jiangsu Province,China 电话：0086-510-86179966 TEL：0086-510-86179966 传真：0086-510-86179975 Fax: 0086-510-86179975 网址： www.jsacrel.com Web-site: www.jsacrel.com 邮箱：...
