Table of Contents

5.1

MINIMAX

-Filter internal

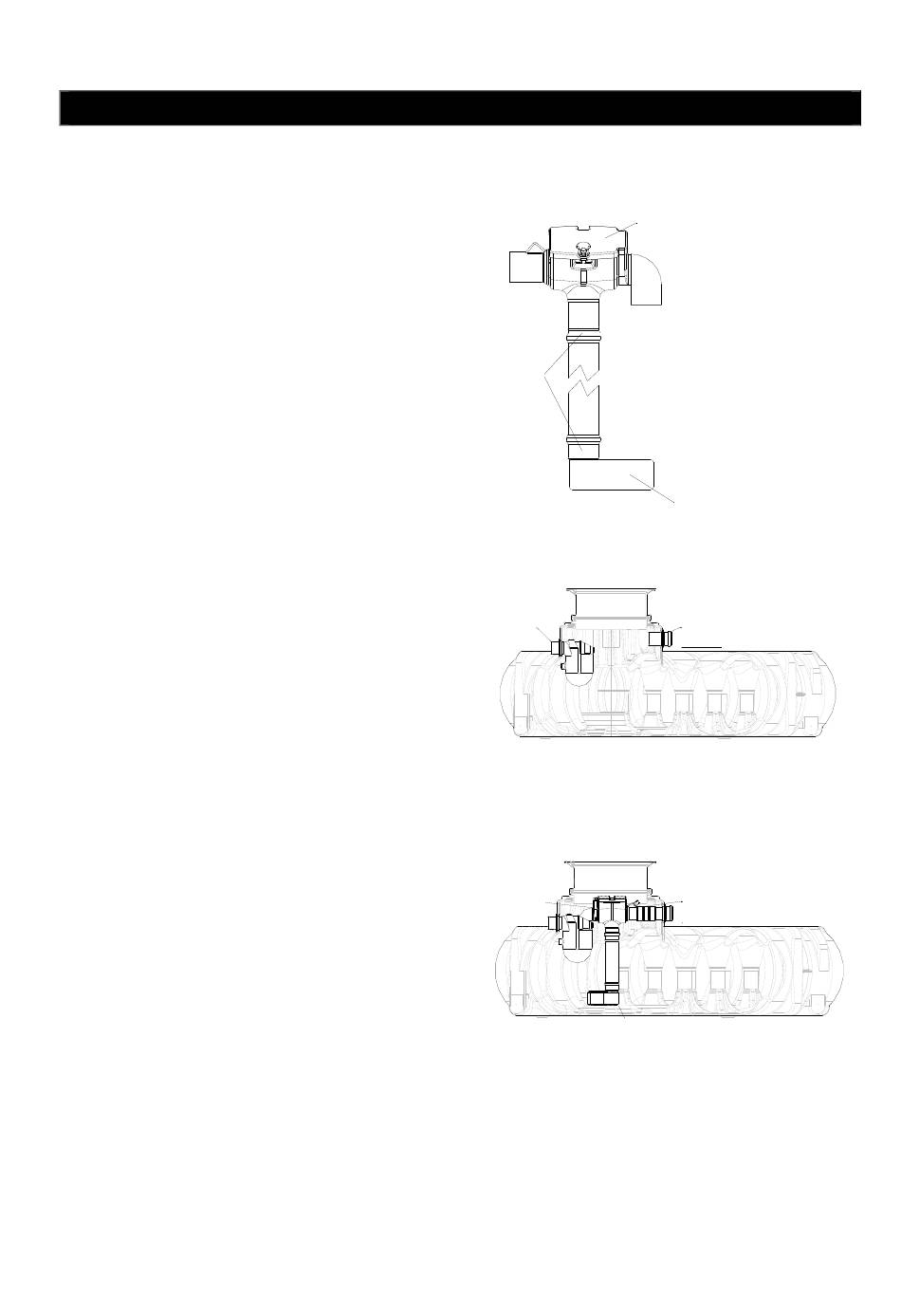

The MINIMAX

-Filter Internal is prepared as

shown in the adjacent depiction. The filter housing

is connected via the on site installed canalisation

pipe to the stabilising inlet well (included in the

MINIMAX add on packet). The couplings should

be secured with commercial self tapping screws.

Following this a 250 mm long inlet pipe and an

overflow siphon are pushed in to the Platin

underground tank until the end stop position as

shown in the adjacent depiction.

Now the prepared MINIMAX®-Filter internal is

installed in the tank, the elbow of the overflow

from the filter is also connected now to the siphon.

The inlet pipe is so to position that it is flush with

the filter inlet and then finally fixed in place with

the quick assembly collar.

Under no circumstance may a mesh barrier to

prevent small animals entering the tube be

installed as this will eventually lead to a blockage

from debris in the pipe.
