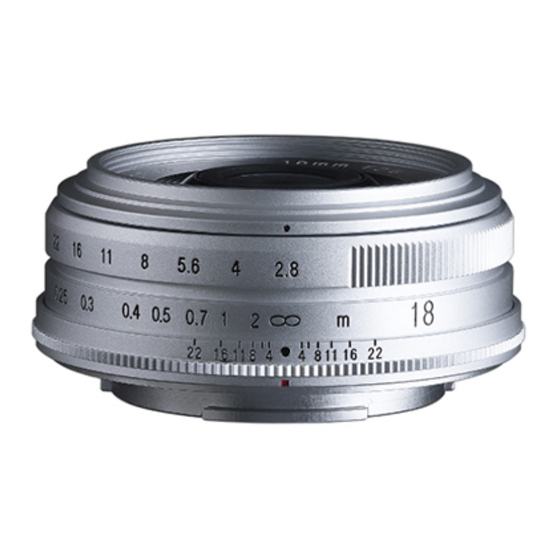

- Page 1 COLOR-SKOPAR 18mm F2.8 Aspherical X-mount INSTRUCTION MANUAL COSINA CO., LTD. Feb 2024, Ver 1.0...
- Page 2 Thank you for purchasing a Voigtlander product. The Voigtlander X-mount series is an interchangeable lens designed exclusively for fuji X-mount which covers the APS-C frame size. This product features manual focus and mechanical interlocking manual apertures. The data communication functions are made using electronic contacts * 1 reflects the lens data in the Exif information.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning and uses the equipment incorrectly, serious injuries and even death may be the result. WARNING If the user ignores this caution sign it might result in injuries and damage the equipment.
-
Page 4: Precautions For Use
Please note that using it with teleconverters, mount adapters, macro adapters, and other accessories, may cause problems. Never touch the lens surface. In case it is dirty or dusty use commercially available lens cleaners or an appropriate lens cleaning cloth. Please check here for electronic communication compatible camera information. www.cosina.co.jp/voigtlander/en/... - Page 5 Description of Parts ① Lens Hood ① ② Filter Ring ⑦ ② ③ Aperture Ring ③ ⑧ ④ Focus Ring ④ ⑨ ⑤ Depth of Field Scale ⑩ ⑤ ⑪ ⑥ Mount ⑥ ⑦ Aperture Index ⑫ ⑧ Aperture Scale ⑨...
- Page 6 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold the Depth of Field Scale ⑪ to attach/detach the lens. If you attach/ detach the lens while holding other parts of the lens barrel it may damage the lens.
- Page 7 Preparation (camera body settings) By setting the camera body as below, you can shoot using the functions of the lens and body. For more details on camera body settings, refer to the instruction manual of the camera you are using. 1.
- Page 8 2. Models that do not support electronic communications When using with a model that does not support electronic communications, set [Release without lens] to "ON" in the camera settings.
-
Page 9: Focus Check
How CPU/Contact works 1. Exif Data Image file can store the Exif data of lens. (For example, if you use Voigtländer 18mm F2.8) Lens VOIGTLANDER COLOR-SKOPAR 18mm F2.8 Focal length 18mm Maximum Aperture F2.8 Aperture The aperture value you used to take the picture 2. Focus check... -
Page 10: Image Stabilization
4. Image stabilization This lens supports the "camera shake" correction function. *The "camera shake" correction function can be switched "ON / OFF" by the appropriate setting on the camera body. For more details, please refer to the instruction manual of your camera. - Page 11 ● Specifications Product Name COLOR-SKOPAR 18mm F2.8 Aspherical Focal Length 18mm Maximum Aperture F2.8 Minimum Aperture Lens Construction 5 groups 7 elements Angle of View 75.4° Aperture Blades Minimum Focus 0.17m Macro Ratio 1:6.6 Filter Size Ø43mm Maximum Diameter Approx. Ø59.3mm Length Approx.
- Page 12 ● Specifications Supplied Accessory Front Cap, Rear Cap, Lens Hood, Hood Cap Corresponding shooting mode A [Aperture priority] M [Manual] * Specifications and information are subject to change without notice.
