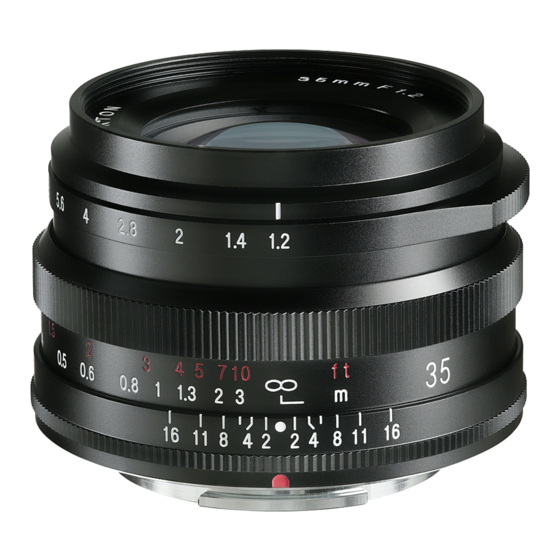

- Page 1 NOKTON 35mm F1.2 X-mount INSTRUCTION MANUAL COSINA CO., LTD. Aug 2021, Ver 1.0...
- Page 2 Thank you for purchasing a Voigtlander product. The Voigtlander X-mount series is an interchangeable lens designed exclusively for X-mount that covers the APS-C frame size. The optical system is optimized to meet the specifications of a digital image sensor. This product is based on manual focus and mechanical interlocking manual apertures.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning and uses the equipment incorrectly, serious injuries and even death may be the result. WARNING If the user ignores this caution sign it might result in injuries and damage the equipment.
- Page 4 Please note that using it with teleconverters, mount adapters, macro adapters, etc. may cause problems. Never touch the lens surface. In case it is dirty or dusty use commercial lens cleaner or appropriate lens cleaning cloth. Please check here for electronic communication compatible camera body information. www.cosina.co.jp/seihin/voigtlander/english/...
- Page 5 Description of Parts ① Lens Hood ② Filter Ring ① ③ Aperture Ring ⑧ ② ④ Focus Ring ③ ⑨ ⑤ Distance Scale ⑥ Mount Index ④ ⑩ ⑦ Mount ⑤ ⑪ ⑧ Aperture Index ⑥ ⑫ ⑨ Aperture Scale ⑦...
- Page 6 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold the Depth of Field Ring ⑫ to attach/detach the lens. To attach/ detach the lens while holding other parts of the lens barrel can damage the lens.
- Page 7 Preparation (camera body settings) By setting the camera body below, you can shoot using the functions of the lens and body. For details on camera body settings, refer to the instruction manual of the camera you are using. 1. Telecommunications compatible models *When using with a telecommunications compatible model, if the camera firmware is not current, the performance of this product may not be fully utilized or some functions may be limited, so please use the latest version of the camera firmware.
- Page 8 2. Models that do not support telecommunications When using with a model that does not support telecommunications, set [Release without lens] to "ON" in the camera body settings.
-
Page 9: Focus Check
How CPU/Contact works 1. Exif Data Image file can store the Exif data of lens. (For example, if you use Voigtländer 35mm F1.2) Lens VOIGTLANDER NOKTON 35mm F1.2 Focal length 35mm Maximum Aperture F1.2 Aperture The aperture value you used to take the picture 2. Focus check... -
Page 10: Image Stabilization
4. Image stabilization This lens supports the camera shake correction function. *The camera shake correction function can be switched "ON / OFF" by the appropriate setting on the camera body. For details, please refer to the instruction manual of the camera body. - Page 11 ● Specifications Product Name NOKTON 35mm F1.2 Focal Length 35mm Maximum Aperture F1.2 Minimum Aperture Lens Construction 6 groups 8 elements Angle of View 44° Aperture Blade Minimum Focus 0.3m Macro Ratio 1:6.7 Filter Size Ø46mm Maximum Diameter Approx. Ø59.6mm Length Approx.
- Page 12 ● Specifications In-body camera shake correction Possible function * only on camera body with Image Stabilization Supplied Accessory Front Cap, Rear Cap, Lens Hood Corresponding shooting mode A [Aperture priority] M [Manual] * Specification and information is subject to change without prior notice.
