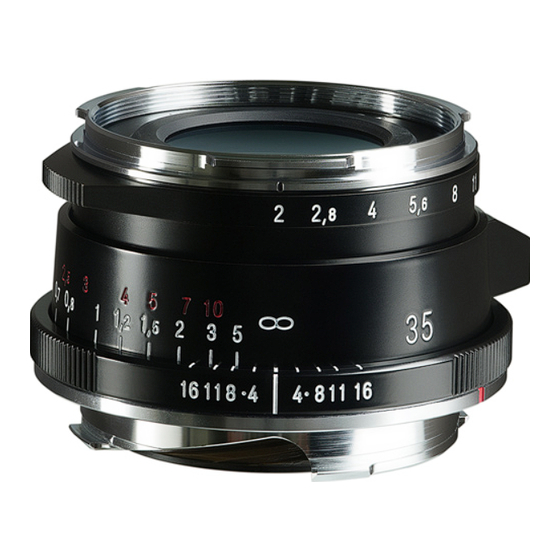

- Page 1 APO-LANTHAR 35mm F2 Aspherical VM INSTRUCTION MANUAL COSINA CO., LTD. Mar 2021, Ver 1.0...
- Page 2 Voigtländer VM-mount lenses cover full frame format and are manually controlled lenses. The user sets the focus and aperture. They are designed to be used on both rangefinder film cameras and digital cameras with M-type lens mount. They can also be used on mirrorless cameras with the appropriate adapters Features of Voigtländer VM-mount lens ■...
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning sign and uses the equipment the wrong way serious injuries and even death might be the WARNING result.
- Page 4 Description of Parts ① Filter Ring ⑧ ① ② Aperture Ring ② ⑨ ③ Focus Ring ④ Distance Scale ⑤ Depth of Field Ring ⑥ Distance Index ③ ⑦ Mount ④ ⑧ Aperture Index ⑤ ⑩ ⑨ Aperture Scale ⑥ ⑪...
- Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. Please hold the Depth of Field Ring ⑤ to attach/detach the lens. To attach/detach the lens while holding other parts of the lens barrel can damage the lens.
- Page 6 ● Optional Lens Hood LH-13 Optional Lens Hood LH-13 are available to be purchased separately. Please ask your dealer for details. ● Attachment and Removal of optional Lens Hood To attach, line-up the white mark on the Lens Hood with Aperture Index ⑧ on the lens and turn the Lens Hood clockwise while pushing it toward the lens.
- Page 7 ● Specifications Product Name APO-LANTHAR 35mm F2 Aspherical Focal Length 35mm Maximum Aperture Minimum Aperture Lens Construction 9 groups 11 elements Angle of View 63.6° Aperture Blade Rangefinder Coupling ∞ ~ 0.7m Minimum Focus 0.5m Filter Ø49mm Maximum Diameter Approx. Ø55.6mm Length Approx.
