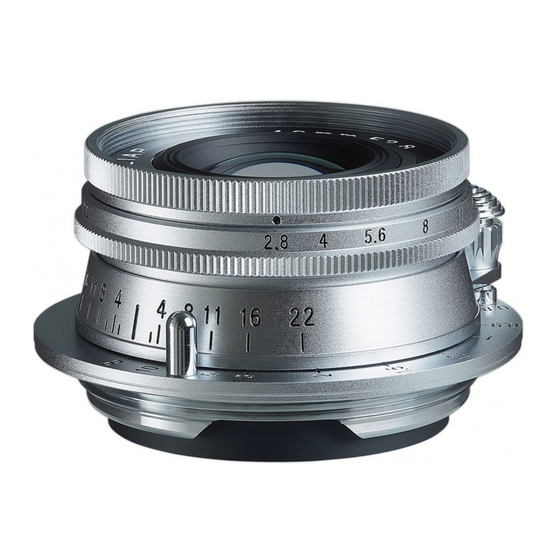

HELIAR 40mm F2.8 Aspherical VM
INSTRUCTION MANUAL
COSINA CO., LTD.
Mar 2022, Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the M Aspherical 8.F2 40mm HELIAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VOIGTLANDER M Aspherical 8.F2 40mm HELIAR

  • Page 1 HELIAR 40mm F2.8 Aspherical VM INSTRUCTION MANUAL COSINA CO., LTD. Mar 2022, Ver 1.0...
  • Page 2 Voigtländer VM-mount lenses cover the full frame format and are manually controlled lenses. The user sets the focus and aperture. They are designed to be used on both rangefinder film cameras and digital cameras with M-type lens mount. They can also be used on mirrorless cameras with appropriate adapters.
  • Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning sign and uses the equipment the wrong way serious injuries and even death might be the WARNING result.
  • Page 4 Description of Parts ① Lens Hood ① ⑦ ② Filter Ring ② ③ Aperture Ring ⑧ ③ ④ Focus Ring ⑨ ④ ⑩ ⑤ ⑤ Distance Index ⑥ Mount ⑪ ⑥ ⑦ Aperture Index ⑧ Aperture Scale ⑨ Focus Lever ⑩...
  • Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. When attaching and detaching, use the focus lever ⑨ , This is fixed at the infinity position, and focus stop ⑭ to rotate the lens. Holding and rotating other parts may cause a functional failure.
  • Page 6 ● Attaching Filter Screw the filter ( 34mm) to the front of the lens. Ø ● Note on Black Painted Models The mounts with black paint finish are not compatible with a 6-bit code system. The lens will not be recognized when used with cameras equipped with This system.Please set the lens detection output to OFF ( If LEICA M11 firmware is less than V1.30, Please set to AUTO).
  • Page 7 ● Specifications Product Name HELIAR 40mm F2.8 Aspherical Focal Length 40mm Maximum Aperture F2.8 Minimum Aperture Lens Construction 3 groups 5 elements Angle of View 57.0° Aperture Blade Rangefinder Coupling ∞ ~ 0.7m Minimum Focus 0.7m Filter Ø34mm Maximum Diameter Approx.
