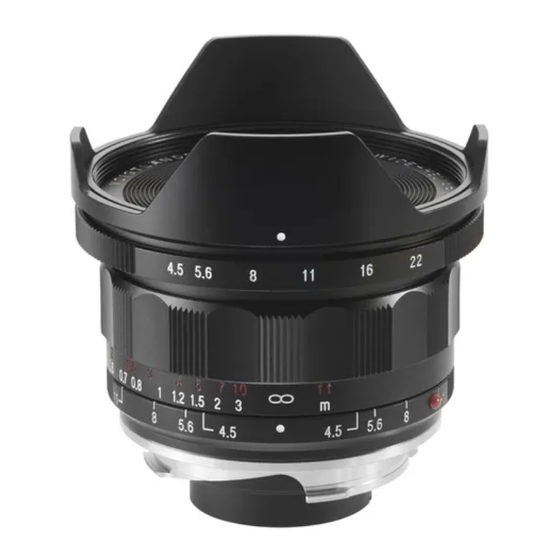

VOIGTLANDER Z-mount SUPER WIDE-HELIAR 15mm F4.5 Aspherical Instruction Manual
Hide thumbs
Also See for Z-mount SUPER WIDE-HELIAR 15mm F4.5 Aspherical:
- Instruction manual (9 pages)
Related Manuals for VOIGTLANDER Z-mount SUPER WIDE-HELIAR 15mm F4.5 Aspherical
Summary of Contents for VOIGTLANDER Z-mount SUPER WIDE-HELIAR 15mm F4.5 Aspherical
- Page 1 SUPER WIDE-HELIAR 15mm F4.5 Aspherical Z-mount INSTRUCTION MANUAL COSINA CO., LTD. Feb 2023, Ver 1.0...
- Page 2 ■ Highly rigid and durable all-metal lens barrel ■ Manual focus for reliable fine-focusing *1 When using this product, some functions may be restricted depending on the camera's firmware. Please use with the latest firmware. Please check the Cosina website for the latest information and details. www.cosina.co.jp/voigtlander/en/...
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores these warnings and uses the equipment incorrectly, serious injuries and even death may result. WARNING If the user ignores this caution sign it might result in injuries and damage the equipment.
- Page 4 Description of Parts ① Filter Ring ② Lens Hood ① ③ Aperture Ring ⑧ ② ④ Focus Ring ⑨ ③ ⑤ Distance Scale ⑥ Depth of Field Ring ④ ⑦ Mount ⑤ ⑧ Aperture Index ⑩ ⑨ Aperture Scale ⑪ ⑥...
- Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to Attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold the Depth of Field Ring ⑥ to attach/detach the lens. Attaching/ detaching the lens while holding other parts of the lens barrel may damage the lens.
- Page 6 How CPU/Contact works 1. Exif Data Image file can store the Exif data of lens. (For example, if you use Voigtländer 15mm F4.5) Lens 15mm /f4.5 Focal length 15mm Maximum Aperture F4.5 Aperture The aperture value you used to take the picture 2.
- Page 7 ● Specifications Product Name SUPER WIDE-HELIAR 15mm F4.5 Aspherical Focal Length 15mm Maximum Aperture F4.5 Minimum Aperture Lens Construction 9 groups 11 elements Angle of View 110.0° Aperture Blades Minimum Focus 0.126m Macro Ratio Filter Size Ø58mm Maximum Diameter Approx. Ø67.6mm Length Approx.
- Page 8 ● Specifications Supported Sensor Size Full-frame Electric Contact Available Exif Data Available In-body image stabilization Supported (3-axis) * only on camera body with Image Stabilization Supplied Accessory Front Cap, Rear Cap Mount Nikon Z mount * Specifications and information is subject to change without notice.
