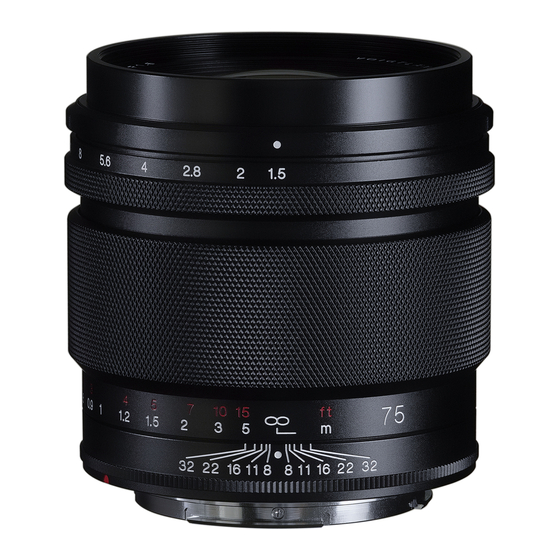

- Page 1 NOKTON 75mm F1.5 Aspherical RF-mount INSTRUCTION MANUAL COSINA CO., LTD. Apr 2024, Ver 1.0...
- Page 2 Thank you for purchasing a Voigtländer product. Voigtländer RF-mount series are manual focus interchangeable lenses that mount directly to Canon RF mount cameras without an adapter. The optical system is optimized for the image sensor of mirrorless cameras using the Canon RF mount. The lens mount is equipped with electronic contacts that establish communication between the lens and camera body.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning and uses the equipment incorrectly, serious injuries and even death may be the result. WARNING If the user ignores this caution sign it might result in injuries and damage the equipment.
-
Page 4: Precautions For Use
Never touch the lens glass surface. If the glass needs cleaning, use a commercially available lens cleaning solution, or photo lens cleaning tissues or photo lens cleaning cloth. Please check the Cosina website for the latest information and details. www.cosina.co.jp/voigtlander/en/... - Page 5 Description of Parts ① Lens Hood ② Filter Ring ① ③ Aperture Control Ring ④ Aperture Ring ⑤ Focus Ring ⑩ ② ⑥ Distance Scale ③ ⑪ ⑦ Depth of Field Scale ④ ⑧ Mount Index ⑤ ⑨ Mount ⑩ Aperture Index ⑪...
- Page 6 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold the Depth of Field Scale ⑫ to attach/detach the lens. If you attach/ detach the lens while holding other parts of the lens barrel it may damage the lens.
- Page 7 ● Selective Aperture Control System You can choose two modes – with or without Click Stops - on the Aperture Control Ring. 1. Push the Aperture Control Ring ③ towards the Aperture Ring ④ . 2. Turn the Aperture Control Ring ③ 180 degrees. 3.
- Page 8 How CPU/Contact works 1. Exif Data Image file can store the Exif data of lens. (For example, if you use Voigtländer 75mm F1.5) Lens model Voigtlander NOKTON 75mm F1.5 Focal length 75mm Aperture The aperture value used to take the...
- Page 9 ● Specifications Product Name NOKTON 75mm F1.5 Aspherical Focal Length 75mm Maximum Aperture F1.5 Minimum Aperture Lens Construction 6 groups 7 elements Angle of View 32.6° Aperture Blades Minimum Focus 0.5m Macro Ratio 1:4.9 Filter Size Ø62mm Maximum Diameter Approx. Ø74.0mm Length Approx.
- Page 10 ● Specifications Exif Data Available In-body camera shake correction possible function * only on camera bodies with Image Stabilization Supplied Accessories Front Cap, Rear Cap, Lens Hood, Other Selective Aperture Control System *1 With out EOS RP *2 The aperture value display of the Canon EOS R system does not indicate values other than 1/3 step, so the maximum aperture value data in the Exif information other than the lens name is displayed as "F1.6".
