Summary of Contents for VOIGTLANDER NOKTON 25mm F0.95 Type II

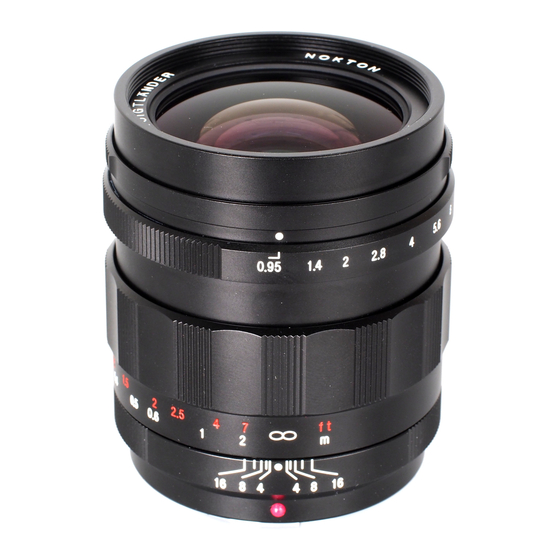

- Page 1 NOKTON 25mm F0.95 Type II INSTRUCTION MANUAL Cosina Co., Ltd. Aug.16 Ver 1.0...
- Page 2 Voigtländer Micro Four Thirds-mount lenses are all metal construction with precise focusing even at full aperture. Minimum focus distance ranges from 17cm to 23cm depending of the focal length of the lens. This allows macro shots with smooth bokeh. All lenses in this series cover the image circle of Micro Four Thirds sensors with full resolution even when wide open.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning sign and uses the WARNING equipment the wrong way serious injuries and even death might be the result. If the user ignores this caution sign it might result in CAUTION injuries and damage the equipment.
- Page 4 ・This lens can be mounted on the camera which is based on the Micro Four Thirds System lens mount. ・This lens is a manual focusing lens without electronic interface. Focusing is manual by setting the camera to “M mode”/ “Manual mode” or “A mode”/ “Aperture priority mode”.
- Page 5 ・Owing to the fact that this is an ultra fast lens, the depth of field is extremely shallow when it is used at wide open aperture or close to it. Change of ambient temperature can affect the focusing. For compensation, you can focus slightly beyond infinity. It is recommended that you use the focus confirmation which is available on most Micro 4/3 cameras.
-
Page 6: Description Of Parts
Description of Parts ① Lens Hood ① ② Aperture Control Ring ③ Aperture Ring ④ Focusing Ring ⑤ Depth of Field Ring ② ⑧ ③ ⑥ Distance Index ⑨ ⑦ Mount ④ ⑧ Aperture Index ⑨ Aperture Scale ⑩ ⑤ ⑩... - Page 7 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold Depth of Field Ring ⑤ to attach/detach the lens. To attach/detach the lens while holding other parts of the lens barrel can damage the lens.
- Page 8 ● Selective Aperture Control System You can choose two modes – with or without Click Stops - on the Aperture Control Ring. 1. Push the Aperture Control Ring ② towards the Aperture Ring ③ . 2. Turn the Aperture Control Ring ② 180 degrees. 3.
-
Page 9: Specifications
● Specifications NOKTON 25mm F0.95 Type II Focal Length: 25mm Maximum Aperture: 1:0.95 Minimum Aperture: Lens Construction: 8 groups 11 elements Angle of View: 47.3° Aperture Blade: Minimum Focus: 0.17m Macro Ratio: 1:3.9 φ 60.6mm (Without Hood) Maximum Diameter: Length: 70mm (Without Hood) φ...
