  • Page 1 NOKTON D23mm F1.2 Aspherical Z-mount INSTRUCTION MANUAL COSINA CO., LTD. May 2022, Ver 1.0...
  • Page 2 Thank you for purchasing a Voigtländer product. Voigtländer Z-mount series is a manual focus interchangeable lens that can be directly connected to the Nikon Z mount without an adapter. The optical system is optimized for the image sensor of mirrorless cameras using the Nikon Z mount.
  • Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning and uses the equipment incorrectly, serious injuries and even death may be the result. WARNING If the user ignores this caution sign it might result in injuries and damage the equipment.

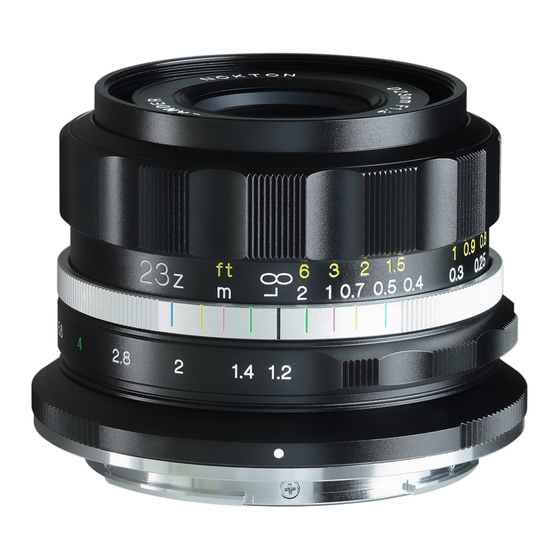

  • Page 4 Description of Parts ① Lens Hood ② Filter Ring ③ Focus Ring ① ④ Depth of Field Ring ⑤ Aperture Ring ⑥ Mount Index Ring ② ③ ⑦ Mount ⑧ ⑧ Distance Scale ⑨ ④ ⑨ Depth of Field Scale ⑩...
  • Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for how to attach/detach the lens. * Please make sure to set the power of the camera to “OFF”. Please hold the Mount Index Ring ⑥ to attach/detach the lens. To attach/detach the lens while holding other parts of the lens barrel may damage the lens.
  • Page 6 How CPU/Contact works 1. Exif Data Image file can store the Exif data of lens. (For example, if you use Voigtländer D23mm F1.2) Lens 23mm /f1.2 Focal length 23mm Maximum Aperture F1.2 Aperture The aperture value you used to take the picture 2.
  • Page 7 ● Specifications Product Name NOKTON D23mm F1.2 Aspherical Focal Length 23mm Maximum Aperture F1.2 Minimum Aperture Lens Construction 6 groups 10 elements Angle of View 63.3° Aperture Blade Minimum Focus 0.18m Macro Ratio 1:4.9 Filter Size Ø46mm Maximum Diameter Approx. Ø65.8mm Length Approx.
  • Page 8 ● Specifications Electric Contact Available Exif Data Available In-body image stabilization Supported (3-axis) * only on camera body with Image Stabilization Supplied Accessory Front Cap, Rear Cap, Lens Hood Mount Nikon Z mount * Specifications and information is subject to change without notice.
