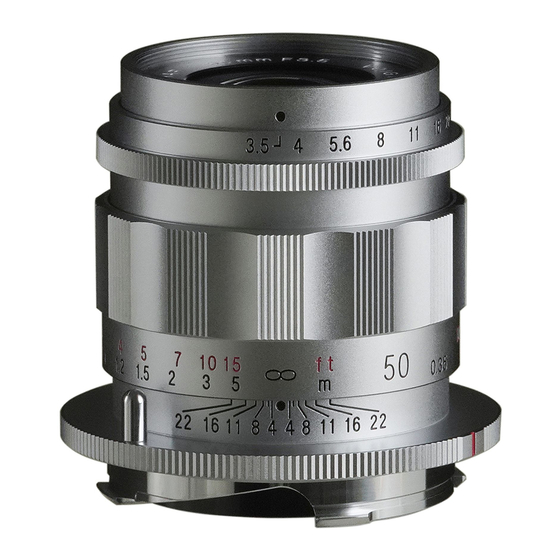

- Page 1 APO-LANTHAR 50mm F3.5 Type II INSTRUCTION MANUAL COSINA CO., LTD. Aug 2024, Ver 1.0...
- Page 2 Voigtländer VM-mount lenses cover the full frame format and are manually operated. The user manually sets the focus and aperture. They are designed to be used on both rangefinder film cameras and digital cameras with M-type lens mount. They can also be used on mirrorless cameras with appropriate adapters.
- Page 3 Tips for lens care and safety These tips are to protect the user from injury or damaging the lens. If the user ignores this warning sign and uses the equipment the wrong way serious injuries and even death might be the WARNING result.
- Page 4 Description of Parts ① Lens Hood ② Filter Ring ① ③ Aperture Ring ⑨ ④ Focusing Ring ② ⑩ ⑤ Distance Scale ③ ⑥ Depth of Field Ring ⑦ Distance Index ④ ⑧ Mount ⑤ ⑨ Aperture Index ⑩ Aperture Scale ⑪...
- Page 5 ● How to attach/detach the lens Please refer to the instruction manual for your camera for lens mounting / unmounting. Please be sure to hold the Depth of Field Ring ⑥ when attaching/ detaching the lens. To attach/detach the lens while holding other parts of the lens barrel may damage the lens.
- Page 6 ● Attaching Mount Adapter This lens can be used with below mentioned Voigtländer Adapters. VM-E Mount Adapter II VM-E Close Focus Adapter VM-X Close Focus Adapter VM-Z Close Focus Adapter ● Attaching Lens Hood Screw the Lens Hood ① to the front of the lens. To remove the hood, press the lens with hood attached into the palm of your hand while gently turning the lens counter clockwise.
- Page 7 ● Specifications Product Name APO-LANTHAR 50mm F3.5 Type II Focal Length 50mm Maximum Aperture F3.5 Minimum Aperture Lens Construction 6 groups 8 elements Angle of View 45.7° Aperture Blade Rangefinder Coupling ∞ ~ 0.7m Minimum Focus 0.35m (With focusing click at 0.7m) Filter Ø39mm Maximum Diameter...
