LSS2200-8P
Quick Start Guide
The LSS2200-8P is a managed Layer 2+ Gigabit Ethernet switch offering eight (8) 1GBase-T interfaces with full IEEE
802.3bt 90W support, two (2) 10/5/2.5/1GBase-T multi-gigabit SFP+ slots, two (2) programmable Digital Input/Outputs
with 12V power output, and one (1) RJ-45 console port. The switch offers 720W total PoE budget for powering LED
lighting, high-powered security and surveillance cameras and other IP devices.
Note: See the full Install Guide for important information: Product Description, Ordering Information, Optional Accessories,
Related Manuals, Features & Specifications, Application Example, Pre-Installation, Safety, Unpacking, Package Contents, Front
Panel, LED Descriptions, Reset Button, Back Panel, Installing the Switch, Mounting the Switch, Installing SFP/SFP+ Modules,
Connecting PDs, Connecting Power Cords, Connecting DI/DO Relay Wires, DI/DO Use Case, Power Supply Info, Initial Switch
Config, Troubleshooting, Compliance & Safety Information, Cautions, Warnings, and Electrical Safety Warnings.
Remarque
: Consultez le guide d'installation complet pour obtenir des informations importantes : description du produit,
informations de commande, accessoires en option, manuels associés, fonctionnalités et spécifications, exemple d'application,
pré-installation, sécurité, déballage, contenu de l'emballage, panneau avant, descriptions des voyants, bouton de réinitialisation,
Panneau arrière, installation du commutateur, montage du commutateur, installation des modules SFP/SFP+, connexion des
PD, connexion des cordons d'alimentation, connexion des fils de relais DI/DO, cas d'utilisation DI/DO, informations sur
l'alimentation, configuration initiale du commutateur, dépannage, conformité et sécurité Informations, mises en garde,
avertissements et avertissements de sécurité électrique.

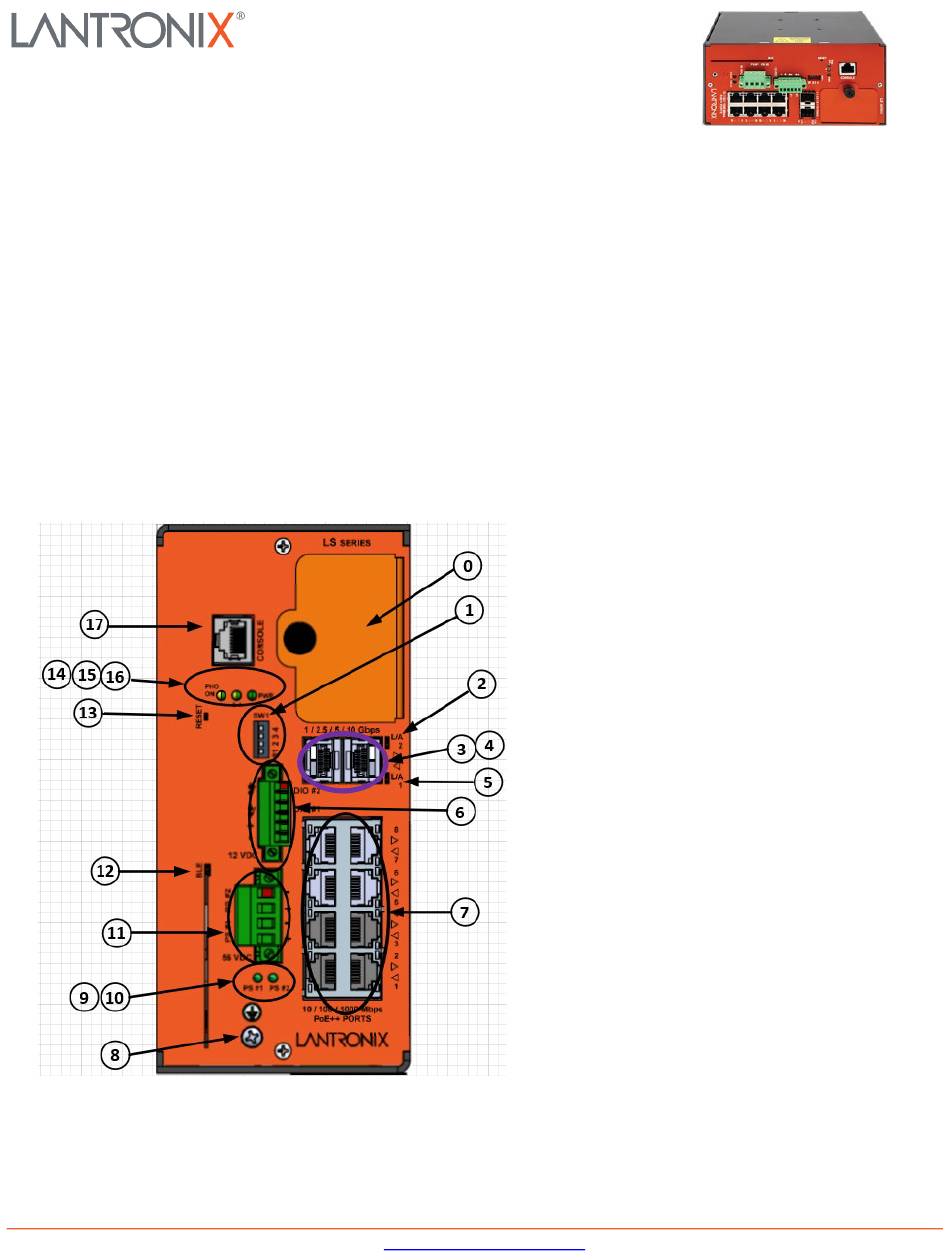

Front Panel
Note: PHO is currently Disabled by default; do not override until fully supported.)
(*
RESET Button
The RESET button is inset from the front panel. Use a thin object such as a paperclip to depress the button.
Press the front panel RESET button for 1-5 seconds to reset the switch.
Press the front panel RESET button for 10-20 seconds to restore the switch to its factory defaults.
33859 Rev. C
⓪
①
Expansion slot/cover (for future use)
SW1 : 4-position DIP Switch:
#1 - Enable/Disable PHO
#2 - Input 1 relay normal state (not active)
②
#3 & 4 - PoE power down selection
③④
L/A : Link Activity LED for SFP++ Port 2
⑤
⑥
L/A : Link Activity LED for SFP++ Port 1
⑦
DIO1 & DIO2 : Digital Input/Output 1 & 2
⑧
Port 1 - 8 : 10/100/1000 PoE++ Ports
⑨ ⑩
Ground screw
⑪
56 VDC + /- : Terminal connector for dual 56VDC
⑫
⑬
BLE : Bluetooth Low Energy connector
⑭⑮⑯
RESET : System reset button
⑰
CONSOLE Port
https://www.lantronix.com/
*
Port 9 & 10: Two 10/5/2.5/1G SFP++ Ports
(SFP++ Port 1 & 2)
PS #1 and PS #2: Power Supply 1 and 2 LEDs
input power
PHO On LED, S1 LED, and P (Power) LED
to PoE Power interlock
Page 1 of 6
