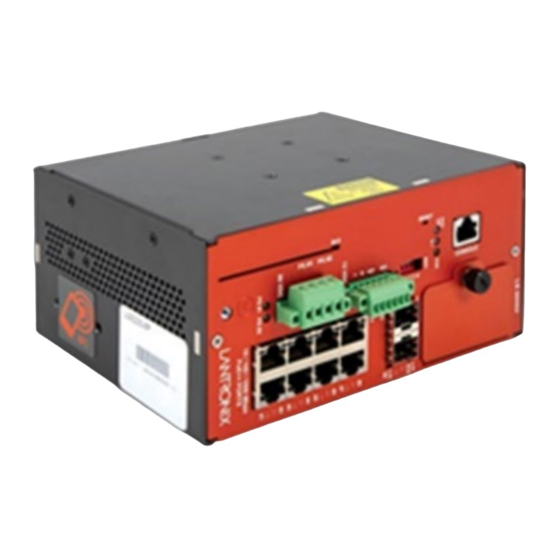

- Page 1 LSS2200-8P Managed Layer 2 Gigabit Ethernet PoE++ Switch (8) 10/100/1000Base-T IEEE 802.3bt + (2) 10G/5G/2.5G/1G SFP+ Multi-Gig Slots MobileApp User Guide Part Number 33870 Revision A October 2022...
- Page 2 LSS2200-8P MobileApp User Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Lantronix LSS2200-8P MobileApp User Guide Contents 1. Introduction ................................4 Product Description ..............................4 About This Manual ..............................4 Related Manuals ..............................4 Installation ................................4 System Requirements ............................4 Software Components ............................4 Automatic Operation ............................4 Operation ................................5 Quick Instructions ...............................5 How to Obtain and Install............................5 Switch Configuration ............................9... -
Page 4: Introduction
About This Manual This manual describes how to obtain, install, and operate the LSS2200-8P MobileApp. Note that this manual may provide links to third party websites for which Lantronix is not responsible. Related Manuals LSS2200-8P Quick Start Guide, 33859 •... -
Page 5: Operation
3. Read the End User License Agreement; check the box that you have read and agree to the terms and hit Submit. 4. A Lantronix representative will confirm that you are authorized to access the Mobile App and send you a link to download. This could take up to 24 hours. - Page 6 Lantronix LSS2200-8P MobileApp User Guide 9. From the home page there are two options: INITIALIZE is used with NFC to pre-configure the switch prior to installation. TROUBLESHOOT is used with BLE to access the switch to check or change configuration or reboot the switch after installation without having to physically access the switch with a cable.
- Page 7 Lantronix LSS2200-8P MobileApp User Guide Configure – To create a configuration file follow these steps: 1. Select Initialize. 2. Select the Configure tab. 3. At the DHCP checkbox, check DHCP for automatic IP address assignment, or leave unchecked to manually enter IP addresses.
- Page 8 Lantronix LSS2200-8P MobileApp User Guide Read NFC Tag – is used to check the configuration of a switch. 1. On the Mobile App, select Initialize. 2. Select Read NFC Tag. 3. Hold the smart phone or tablet so the NFC reader is directly over the NFC target on the front cover of the switch.
-
Page 9: Switch Configuration
Lantronix LSS2200-8P MobileApp User Guide Switch Configuration Switch configuration can also be via: Console Port (Serial) (RS-232 RJ-45) (out-of-band) • Command Line Interface (CLI) • GUI via Ethernet (in-band) • NFC (Switch Manager App) • Note that there are BLE commands in Exec mode and Config mode. -
Page 10: Detailed Instructions With Sample Screen Shots
Lantronix LSS2200-8P MobileApp User Guide Detailed Instructions with Sample Screen Shots The Mobile App interfaces with NFC and BLE to configure and monitor the switch using an Android-based smart phone or tablet. The Mobile App startup page is shown below:... -
Page 11: Nfc Interface
Lantronix LSS2200-8P MobileApp User Guide NFC Interface The NFC interface allows easy setup and access. NFC replaces DIP switches and allows a simple configuration process that requires very little training for employees. It also simplifies installation in situations where more than one switch is being installed, since a range of IP addresses can be designated to configure multiple switches at one time. - Page 12 Lantronix LSS2200-8P MobileApp User Guide Add / Set User Credentials Username: Enter the Username that you wish to use to access the switch via the Mobile App. Password: Enter the Password that you wish to use to access the switch via the Mobile App.
- Page 13 Lantronix LSS2200-8P MobileApp User Guide TRANSFER is used to transmit the saved configuration(s) information into the switch(es). Note: the switch does not need to be powered, connected, or even removed from the box to do this. Simply lift the switch box lid and follow the steps.
- Page 14 Lantronix LSS2200-8P MobileApp User Guide Read NFC Tag is used to check the configuration that has already been transferred to the switch. Select READ NFC TAG, then hold the smartphone or tablet so the NFC reader is positioned directly over the NFC tag on the switch that you want to check.
-
Page 15: Ble Interface
Lantronix LSS2200-8P MobileApp User Guide BLE Interface The BLE interface allows access to read/change equipment settings without requiring physical access to the switch using a console cable once it is mounted high on a wall or pole. The BLE interface provides alarm/status info, since LEDs and alarms aren’t useful when products are located inside cabinets or enclosures, which eases... - Page 16 Lantronix LSS2200-8P MobileApp User Guide Username: After selecting the device to pair with, enter the Username that you selected for the specific switch configuration. Password: Enter the Password that you selected for the specific switch configuration, then click the LOGIN button.
- Page 17 Lantronix LSS2200-8P MobileApp User Guide A list of available devices will display in the Pairing box on the BLE Pairing Prompt page as shown below. Locate the device with the BLE Mac address of the switch you want to troubleshoot. Check if the devices have successfully paired;...
- Page 18 Lantronix LSS2200-8P MobileApp User Guide The BLE login page is shown below for a switch that is paired, already logged in, and prompting for an action. Parameter descriptions: qwerty keyboard: Keyboard keys for entering CLI commands. See the Operation Guide.
-
Page 19: Switch Cli Commands
Lantronix LSS2200-8P MobileApp User Guide Switch CLI Commands The CLI Command prompt is shown below. See the related manual section for the full set of available CLI commands. Example: show version command LSS2200-8P # show version Version Information =================== Model: LSS2200-8P Firmware Version: 1.5.0.0R16... -
Page 20: Update Existing Application
To upgrade an existing version of the Mobile App, request a new version from the Download Request page on the Lantronix website, and follow the on-screen instructions. Download and save the MobileApp (e.g., eos-mobileapp_1.0.0.0R3) to a location on your mobile device. This update requires no new permissions. -
Page 21: Troubleshooting
Lantronix LSS2200-8P MobileApp User Guide Troubleshooting Specific Issues Problem: When reading the NFC tag, the MobileApp displays the config in unreadable characters. Example: LSS2200-8P # show version Version Information =================== Model: LSS2200-8P Firmware Version: 1.5.0.0R16 Hardware Rev: MAC Address: 00:0D:2C:b8:7e:be... -
Page 22: General Troubleshooting
Lantronix LSS2200-8P MobileApp User Guide General Troubleshooting Use the NFC app to configure before or during installation. Use the BLE app to troubleshoot after installation. 1. Check the Release Notes for any known issues. 2. Verify your port configuration. See the Install Guide. -
Page 23: Bluetooth Troubleshooting
Lantronix LSS2200-8P MobileApp User Guide Bluetooth Troubleshooting Note: use the Mobile App for Bluetooth pairing; do not use the Android Bluetooth pairing function. Also, the Mobile App will not allow you to disable the BLE when the device is paired. -
Page 24: Glossary Of Terms
Lantronix LSS2200-8P MobileApp User Guide Glossary of Terms Note that the mention or definition of a term does not imply that the switch supports that particular feature. 802.11b standard has a maximum raw data rate of 11 Mbit/s, and uses the same media access method defined in the original standard. - Page 25 Lantronix LSS2200-8P MobileApp User Guide NDEF: (NFC Data Exchange Format) is a light-weight binary format, used to encapsulate typed data. It is specified by the NFC Forum, for transmission and storage with NFC, however it is transport agnostic. NDEF defines messages and records. An NDEF Record contains typed data, such as MIME-type media, a URI, or a custom application payload.
