HSP588

4.4 Cutting operation

Once the stroke-end adjustment procedure is executed (as described in the previous paragraph), the
machine is ready to carry out a complete cutting cycle. Act as follows:
IMPORTANT: for a correct use of the cutting press we recommend to always place the cutting-die in the
middle of the striking plate in order to avoid projections of the tool and, in the long run, substantial
damages to the travelling head
a)
lay the material to be cut on the cutting table and place the cutting-die in the working area;
b) actuate either the pushbutton for travelling head displacement from right to left (O and L1) or the
pushbutton for travelling head displacement from left to right (I and L2) until the travelling head covers the
cutting-knife completely (Fig. 12);
(I)

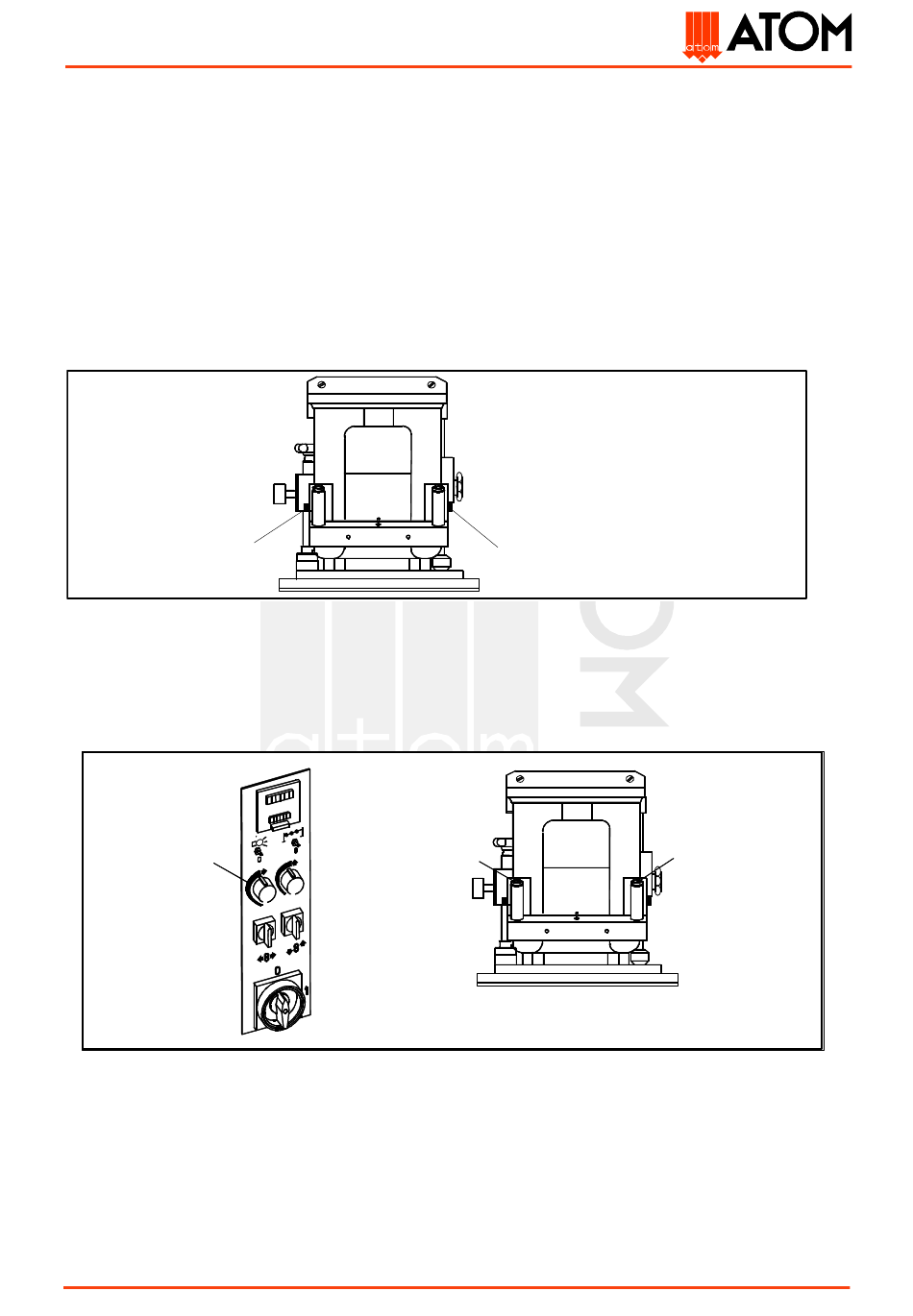

Fig. 12
c) simultaneously press the cutting pushbuttons (L) and keep them depressed until the striking plate
carries out the complete cutting operation and starts its ascent; the travelling head will make the automatic
return displacement towards the starting position: the amount of such an automatic return can be properly
adjusted through the potentiometer (D) (Fig. 13);
(D)
Fig. 13
Use and maintenance manual
(O)
(L) (L)
pag. 30
