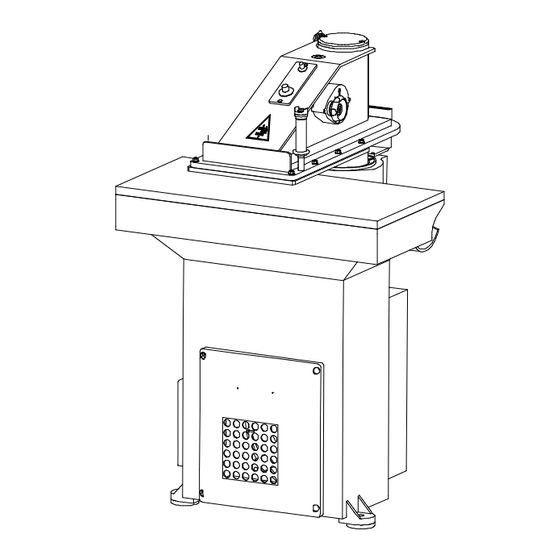

S100 Series

COMANDI DISPONIBILI - - VERFÜGBARE STEURUNGEN

COMMANDES DISPONIBLES - - AVAILABLE CONTROLS

MANDOS DISPONIBLES - - COMANDO DISPONIVEL

I- - FUSTELLATRICE A

BRACCIO ROTANTE

GB- -CUTTING PRESS WITH

TURNING ARM

F- -PRESSE A DECOUPER

A BRAS TOURNANT

D- -STANZMASCHINE MIT

SCHWENKARM

E- -CORTADORA A TROQUEL

CON BRAZO GIRATORIO

P- -PRENSA HIDRÁULICA

COM BRAÇO GIRATÓRIO

SE Series

S/SE108/116/120C/120/122

/124C/124/125C/125/125L

Table of Contents

Need help?

Do you have a question about the S100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Atom S100 Series

Page 1 S100 Series SE Series COMANDI DISPONIBILI - - VERFÜGBARE STEURUNGEN COMMANDES DISPONIBLES - - AVAILABLE CONTROLS MANDOS DISPONIBLES - - COMANDO DISPONIVEL I- - FUSTELLATRICE A BRACCIO ROTANTE GB- -CUTTING PRESS WITH TURNING ARM F- -PRESSE A DECOUPER A BRAS TOURNANT...
Page 2: Important Notice
To define this area refer to the page stating machine overall dimensions. Any reproduction of this catalogue is absolutely prohibited. ATOM S.p.A. expect you may utilize the product at the best with your full satisfaction. For any doubt or further advice, do not hesitate to contact ATOM S.p.A.
Page 3: Machine Positioning
Machine lifting (S/SE116/120C) To fit in two iron bars into the holes made in the machine back room accomodation and lift the machine by two suitable safety slings (see Fig. 3). We recommend not to lift the machine more than 50 cm. ( ~ 20 in.) max. Avoid that people not in charge stand close to the machine. 300 mm 25 mm max.
Page 4: Machine Connection
Machine connection Forobviousreasons ofpossibleincompatibility,theconnectingplugisnot mountedonthemachineelectriccable. Thereforeit isnecessary tomount the correct plug. Beforeconnectingupthemachine, ensurethat thefactory voltagecorresponds totheoneindicatedonthelabel fixedonthefront partof themachine base (Fig. 6). If, for any reason, the voltage of the motor should be changed, it is imperative to adapt the transformer voltage to the desired one. Carry out this operation with the machine completely disconnected from the electric network! Fig.
Page 5 Fig. 11 Machine equipped with three- - pushbutton cutting power selector and two potentiometers (S100 Series) c) On the left handle there is a push- -button box with three push- -buttons: the No.1, the No.2 and the No.3; these act as power selectors and the operator has not to adjust the power each time he changes the cutting- -die size.
Page 6: Cutting Operation
e) ThepushbuttonNo.3(Fig. 14), ontheright, is usedtocut materials particularly difficult tocut by means of tools withagreat lineardevelopment. Furthermore it is possible to gradually increase its value by means of the potentiometer shown in the picture till reaching the maximum power of the machine.
Page 7: Periodical Maintenance
In case of clicking presses equipped with the three- push- button- unit and two potentiometers (S100 Series): 4) Reset the values of both potentiometers and, after having positioned the die on the machine cutting table without any material in between, by means of the turning arm adjustment wheel, place the turning arm at 15 ÷...
Page 8: Troubleshooting
Check the correct voltage of 40/45V arrives at the electromagnet (Fig. 23). Fig. 23 Machine equipped with three pushbuttons cutting power selector and two potentiometers (S100 Series) c) If theledDL5does not light up, but theleds D37(correspondingtothemicroswitchof theright handle)andtheledcorrespondingtothepush- -but- ton pressed on the left box (D29 or D30 or D31) light up regularly check and if necessary replace the fuse (code 02001434, tav. 7) and at last the printedcircuit board(code02E03947, tav.
Page 9: Technical Data
Fig. 25 3º TROUBLE: Breaking of the cable setting arm ascent/descent a) The breaking of the steel cable (code 01001567, tav.4- -5- -6) causes the immediate ascent of the arm beyond the maximum limit (Fig. 26). Immediately switch off the motor, to avoid its burning out, and replace the damaged part. Fig.
Page 10: Optional Accessories
Acoustic emission of the machine Features of working and NOT OPERATIVE machine Leq < 70 dB (A) Lpc < 130 dB (C) Features of working and OPERATIVE machine: 1) Hide, thickness 1.5 mm at 10 SPM with 1 layer Leq = 75 dB (A) and Lpc < 130 dB (C) 2) Imitation leather, thickness 1.5 mm at 10 SPM with 4 layers Leq = 77 dB (A) and Lpc <...
Page 11 Instructions for spare parts request IMPORTANT: in order to guarantee the perfect efficiency of the machine it is imperative to use ATOM original spare parts. For a quick supply of parts the following information is requested: - - a) required quantity;...
Page 12 Schema oleodinamico / Oildynamic diagram / Schéma huiledynamique / Öldynamischer S100 Kreis / Diagrama circuito oleodinámico / Esquema do circuito hidráulico Legenda schema oleodinamico Legenda circuito hidráulico Rif. Denominazione componente Ref. Descripción de los componentes Cilindro di taglio Cilindro de corte Valvola limitatrice alta pressione Válvula limitadora de alta pressão Pressostato...
Page 13 S/SE108/116/120C/120/122/124C/124/125C/125/125L Tav. 1 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/4/04 data chius. tav. 01002005- -S/SE108 01010413- -S/SE116/120C 01011455 02000519 01001367 01011463 02001140- -S/SE108 02001164- -S/SE108 02000492 02001209- -S/SE116 02001185- -S/SE120C 02002630- -S/SE108 02002631- -S/SE116/120C 02002625- -S/SE120/124C/125C 02002632 02001186- -S/SE124/125/S125L 02003632- -S/SE108/116/120C 02001563- -S/SE122 02003674...
Page 14 S/SE108/116/120C/120/122/124C/124/125C/125/125L Tav. 2 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/3/03 data chius. tav. 03000928 01001283 02E03927 02000600- -S/SE116/120C 02000498 02000349- -S/SE116/120C 01011545 02000348 02001683 02E06266 01002041- -S/SE108 01001288 01002254- -S/SE116/120C 01E00581 01001278 02001793 02000123 02001682 01011542 02000496 01001311 01001577 01003362 01011540 01001578...
Page 15 S/SE108/116/120C/120/122/124C/124/125C/125/125L Tav. 3 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/3/03 data chius. tav. 01012471- -S/SE108 01011451- -S/SE116/120C 01011475- -S/SE120/124C 01011497- -S/SE124 01011485- -S/SE125C 01011499- -S/SE122/125 01011500- -S/SE125L 02000121 02000221- -S/SE108 02001366- -S/SE116/120C 02000338 02001237 01003408 01002056- -S/SE108 02000215- -S/SE108 01011453- -S/SE116/120C/120/124C 01001587- -S/SE124 01003406...
Page 16 S/SE108 Tav. 4 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/03/03 data chius. tav. 03000890 03000883 02001746 02002712 01011904 02003639 02001835 01011910 02003584 01001567 01003374 02003585 02007929 02003636 02003637 02007109 02000984 02002507 02008727 02003583 02000521 01011903 01010357 02002831 01011909 01002080 02001233 01011906 02003584...
Page 17 S/SE116/120C Tav. 5 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/03/03 data chius. tav. 03000890 03000885 02001746 02002838 01011911 02003639 02002712 01011904 02002712 02002838 02010992 01011910 02001835 02003584 01001567 01011905 01011900 02003636 01003374 02003586 02003585 02003637 02000984 02008727 02002507 02003582 02003899- -V380/415- -50Hz 02003583 02003898- -V380/415- -60Hz...
Page 18 S/SE120/122/124C/124/125C/125/125L Tav. 6 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/03/03 data chius. tav. 03000886 02003639 02003587 02002712 01011913 03000890 02001746 02003589 01011904 01011910 02003584 02001835 01001567 01003374 02003588 02003585 02003636 02003637 02000984 02002507 01011903 01011905 02008727 01011909 02003900 - - 50Hz 02003899 - - 60Hz 02003583 02003584...
Page 19 S/SE108/116/120C/120/122/124C/124/125C/125/125L Tav. 7 Dall’equipm. N. all’equipm. N. ; Data apert. tav.14/03/03 data chius. tav. 02001421 03E01981 01002006 02002846 02000519 02E03294 02E03302 02001434 02003318 02E06338 02000649 01000376 02E03947...
Page 20 Schema elettrico / Wiring diagram / Schéma des connexions / Stromkreis / Diagrama de S100 1127 conexión / Esquéma elèctrico Motore trifase e selettore di potenza / Three- phase motor and cutting power selector / Moteur triphasé et sèlecteur de puissance / Dreiphasenmotor und Dreifache Druckknöpfe / Motor trifásico y selector de pressión / Motor trifásico e quadro com três botões.
Page 21 S100 Wiring diagram nomenclature 1130 Ref. Component descrition Ref. Component description Printed circuit board Cutting Emergency device switch 24V DC counter ( by request ) Push- -button no. 1 microswitch Transformer primary fuse (1 A) Push- -button no. 2 microswitch Pump motor Push- -button no.
