HSP588

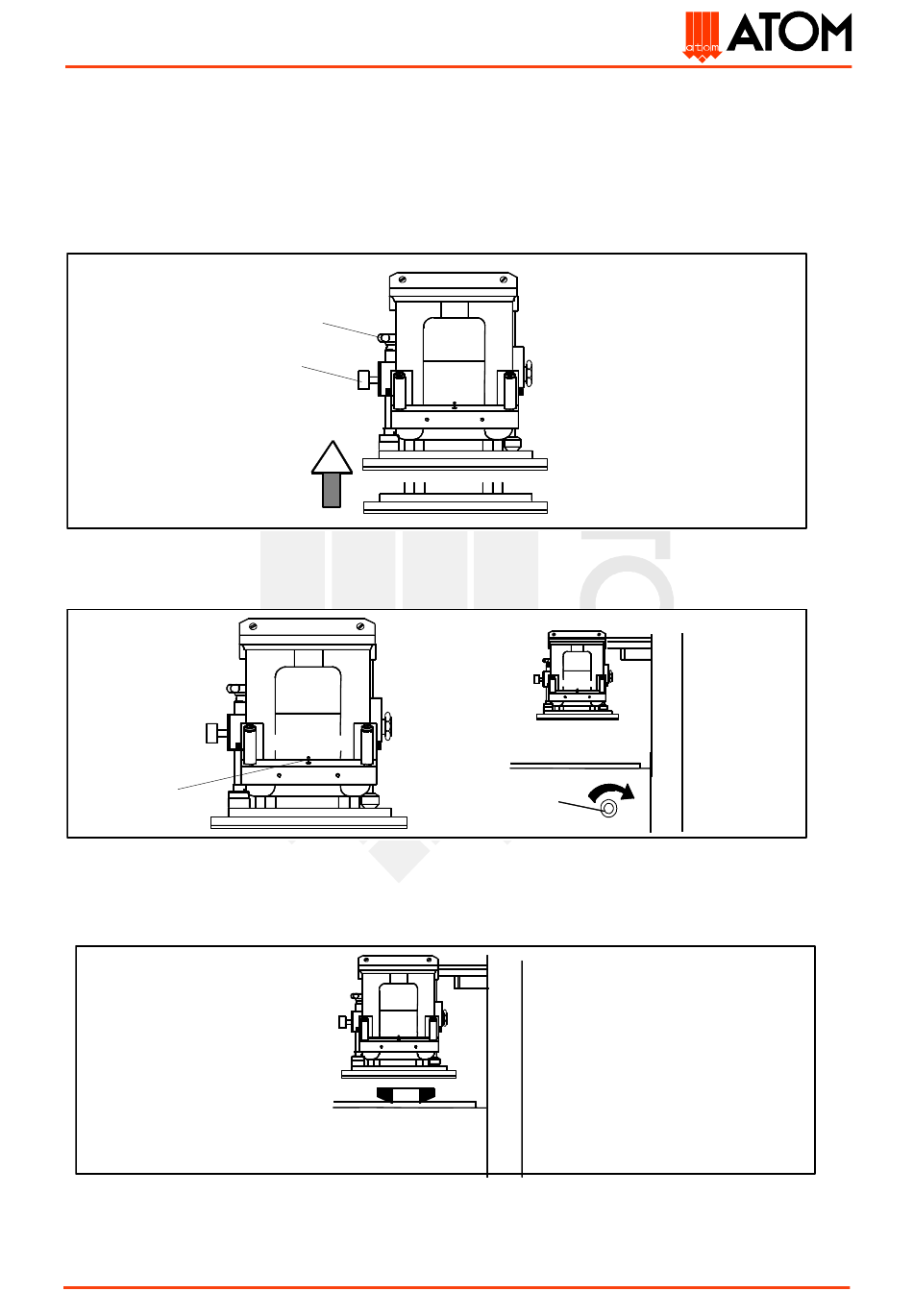

4.3 Stroke-end adjustment

To adjust the cutting stroke-end of the machine, operate as follows:
a) loosen the screw (M) and fully rotate anticlockwise the adjusting handwheel (H): the striking plate
will rise up to its highest limit (Fig. 3).
Fig. 3
b) move the selector (G) to ADJUSTMENT position and fully turn the handwheel (V) clockwise (Fig. 4).
(G)
Fig. 4
c) place the cutting-die between the cutting board and the striking plate without any material to be
cut (direct contact with the cutting board) (Fig. 5)
Fig. 5
Use and maintenance manual
(H)
(M)
ADJUSTMENT
(V)
pag. 27
