Overall Dimensions - Atom HSP588 Instruction, Use And Maintenance Manual

HSP588

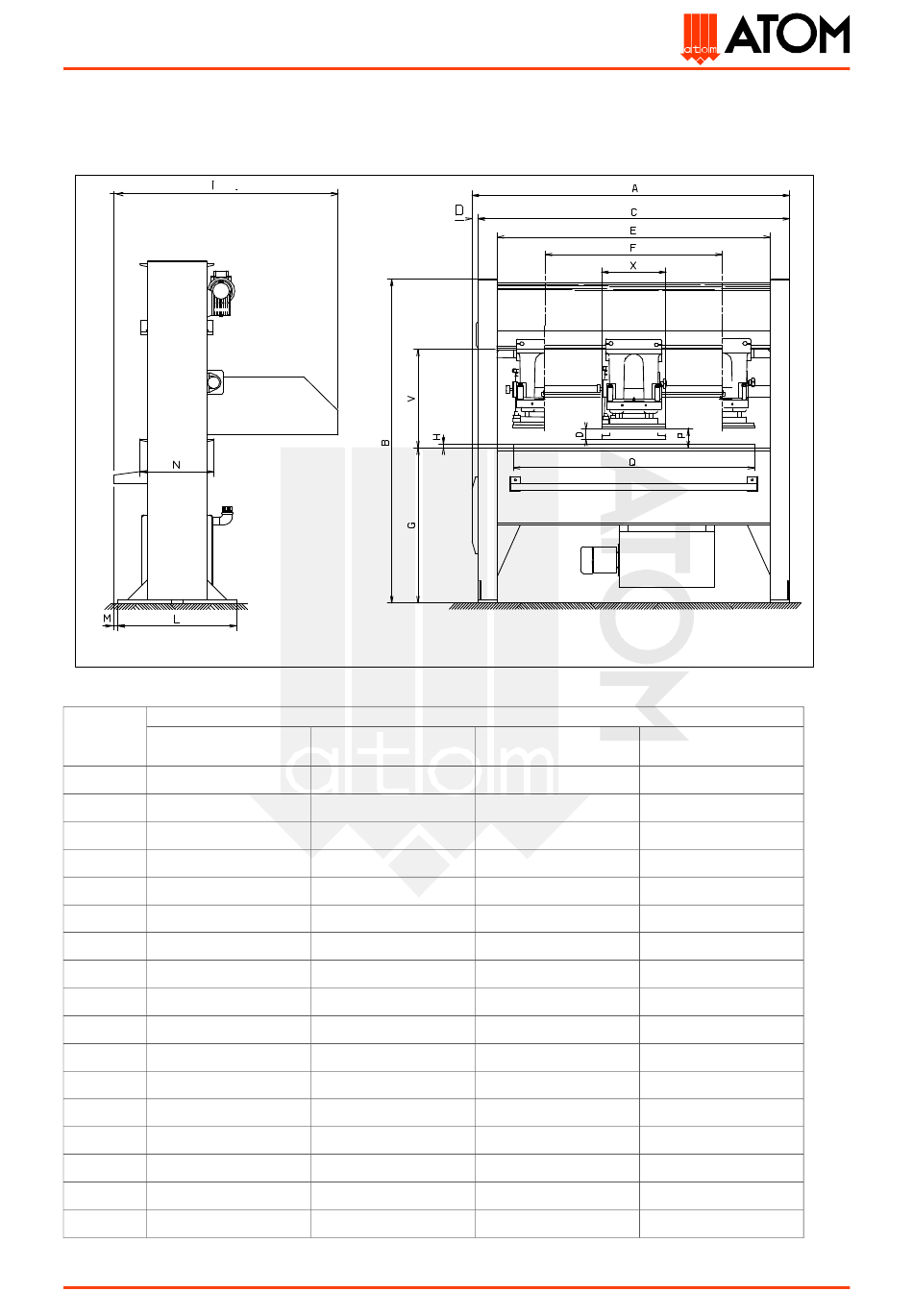

1.5 Overall dimensions

Fig. 1
Ref.
(mm)
HSP 588/1
A 2140
B 2010
C 1940
D 200
E 1700
F 1100
G 965
H 25
I 1299
L 700
M 9
N 430
O 150
P 143
Q 1520
V 780
X 430x430
Use and maintenance manual
Machine types
HSP 588/2 HSP 588/3
2140
2010
1940
200
1700
1100
965
25
1379
700
9
500
150
143
1620
780
500x500 500x500
HSP 588/5
2140 2540
2010 2160
1940 2340
200 200
1700 2100
1100 1500
965 965
25
1379 1379
700 700
9
500 500
150 150
143 143
1620 2020
780 780
500x500
25
9
