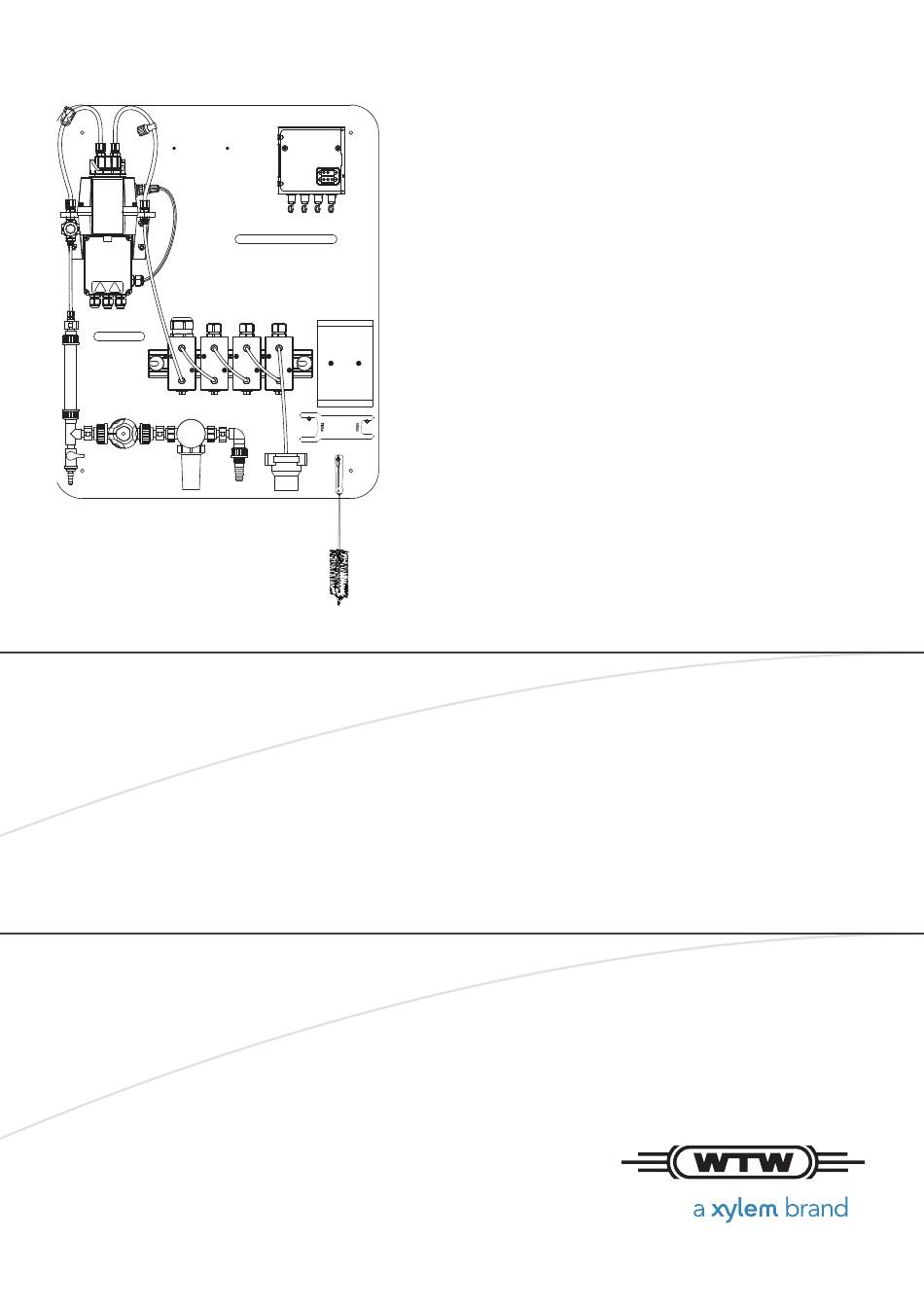

  • Page 1 OPERATING MANUAL ba77278e01 01/2024 DW/P DRINKING WATER PANEL...
  • Page 2 DW/P © Copyright 2024 Xylem Analytics Germany GmbH Printed in Germany. ba77278e01 01/2024...

  • Page 3: Table Of Contents

    DW/P Inhaltsverzeichnis Inhaltsverzeichnis Overview ......... . .5 How to use this operating manual .
  • Page 4 Inhaltsverzeichnis DW/P Maintenance and cleaning ......27 Maintenance ........27 Cleaning .

  • Page 5: Overview

    DW/P Overview Overview How to use this operating manual Structure of the DW/P operating manual Operating manual DW/P Operating manuals for components figure 1-1 Structure of the DW/P operating manual The operating manual has a modular structure. It consists of the operating man- ual for the drinking water panel DW/P and the operating manuals of all the com- ponents used.

  • Page 6: Drinking Water Panel Dw/P

    Overview DW/P Drinking water panel DW/P 1.2.1 Design of the system The DW/P drinking water panel is a modular, preassembled, and preconfigured measuring system for online analysis. The components of the drinking water panel can be assembled individually. Variants of the drinking water panel Variants Equipping option...

  • Page 7: Functional Units On The Drinking Water Panel

    DW/P Overview 1.2.2 Functional units on the drinking water panel figure 1-2 Units of a fully equipped drinking water panel 1 Sample inlet 2 Turbidimeter 3 IQ S system ENSOR with boreholes for the installation of further MIQ modules 4 Guide rail with mounted flow through armatures 5 Accessories 6 Sample drain ba77278e01...
  • Page 8 Overview DW/P Details on the basic The basic units of the drinking water panel consist of other components. units Specified is the maximum equipment. Some components are optional, according to the selected configuration: 1 Sample inlet – Connection for the sample inlet –...

  • Page 9: Components In The Liquid Circle

    DW/P Overview 1.2.3 Components in the liquid circle figure 1-3 Components in the liquid circle 1 Sample inlet 2 Pressure reducer 3 Dosage ball valve 4 Sampling valve 5 Flow indicator 6 Turbidimeter (optional) 7 Flow through armature for a chlorine sensor (optional) 8 Flow through armatures for other sensors (optional) 9 Sample drain ba77278e01...

  • Page 10: Components Outside Of The Liquid Circle

    Overview DW/P 1.2.4 Components outside of the liquid circle figure 1-4 Components outside of the liquid circle 1 Boreholes at the 4 corners, for wall fastening 2 Guide rail for mounting the flow through armatures 3 Cable outlet to tidy up cables behind the drinking water panel 4 MIQ/IDS interface module 5 Cable outlet to tidy up cables behind the drinking water panel 6 Maintenance console...

  • Page 11: Safety Instructions

    DW/P Safety instructions Safety instructions Safety information 2.1.1 Safety information in the operating manual This operating manual provides important information on the safe operation of the product. Read this operating manual thoroughly and make yourself familiar with the product before putting it into operation or working with it. The operating manual must be kept in the vicinity of the product so you can always find the information you need.

  • Page 12: Safe Operation

    Safety instructions DW/P Safe operation 2.2.1 Authorized use The authorized use of the drinking water panel DW/P is exclusively for drinking water and swimming pool water. Only the operation and running of the Alyza IQ according to the instructions and technical specifications given in this operating manual is authorized (see chapter 6 A CCESSORIES...

  • Page 13: Personal Protective Equipment (Ppe)

    DW/P Safety instructions Personal protective equipment (PPE) The PPE includes clothing and other equipment that is used to protect you against risks at your place of work. You must always wear your PPE while doing dangerous jobs to avoid injuries or damage to your health. Personal protective equipment Typical examples Protective goggles...

  • Page 14: Installation

    Installation DW/P Installation Scope of delivery  DW/P drinking water panel with mounted components – Inlet section - Pipes and glands - Pressure reducer - Sampling valve - Flow indicator – Turbidimeter, depending on the configuration – MIQ/IDS2 or MIQ/IDS4, depending on the configuration –...

  • Page 15: Steps For Installation

    DW/P Installation 3.2.2 Steps for installation Install the drinking water panel (see section 3.2.3 M DW/P OUNTING OF THE DRINKING WATER PANEL Connect any IQ S modules ENSOR (see section 3.2.4 C IQ S ONNECTING THE ENSOR ET MODULES Prepare the turbidimeter for operation (see section 3.2.5 P REPARING THE TURBIDIMETER FOR OPERATION Connect the turbidimeter to the MIQ/IC2 module...

  • Page 16: Mounting Of The Dw/P Drinking Water Panel

    Installation DW/P 3.2.3 Mounting of the DW/P drinking water panel figure 3-1 Dimensions 1 Height: 850 mm 2 Width: 700 mm 3 Distance from the edge (4 holes at the corners): 60 mm 4 Recommendation for distance under the drinking water panel: approx.
  • Page 17 DW/P Installation NOTE The DW/P drinking water panel may only be installed in closed, frost-free rooms. Other requirements for the mounting location:  Free wall (at least 850 x 700 mm, see figure 3-1)  Distance under the drinking water panel Recommendation: approx.

  • Page 18: Connecting The Iq Sensor Et Modules

    Installation DW/P Securely fasten the drinking water panel. Make sure that the drinking water panel does not bend. 3.2.4 Connecting the IQ S modules ENSOR Any modules included in the scope of delivery (e.g. MIQ/IDS) have to be connected with the IQ S .

  • Page 19: Installing The Power Supply

    DW/P Installation 3.2.7 Installing the power supply Installation activities for the power supply may only be performed by a qualified electrician: The following components have their own power supply:  Turbidimeter  IQ S ENSOR The IQ S supplies the components of the ENSOR IQ S with power.

  • Page 20: Installing The Chlorine Sensor Into The D 19 Flow Through

    Installation DW/P 3.2.8 Installing the chlorine sensor into the D 19 flow through armature Before installing a sensor in a flow through armature: Connect the chlorine sensor to the ADA Cl/IDS adapter (see operating manual of the chlorine sensor). figure 3-2 Flow through armature D 19 for the chlorine sensor 1 Flow through armature 2 Screw gland for fixing the sensor in the flow through armature 3 Sample feed tube...
  • Page 21 DW/P Installation figure 3-3 Install the chlorine sensor in the flow through armature 1 Marking on the chlorine sensor 2 Top edge screw gland 3 Outlet 4 Inlet Align the marking (1) on the sensor with the top edge (2) of the screw gland.

  • Page 22: Installing The Sensor In The D 17 Flow Through Armature

    Installation DW/P 3.2.9 Installing the sensor in the D 17 flow through armature Before installing a sensor in a flow through armature: Connect sensors with plug-in head with the AS/IDS-x cable (see operating manual of the sensor). Recommendation on the order of the sensors: To avoid bending sensor cables too much: Install the sensor with the longest shaft in the flow through arma- ture farthest from the cable opening.

  • Page 23: Connecting The Sensors To The Miq/Ids Module

    DW/P Installation For FDO 925 oxygen sensor: Slide the spacer (30 mm) over the shaft. Push the screw gland of the flow through armature onto the sensor and tighten slightly. Push the screw gland further over the sensor until the shaft of the sen- sor is in contact with the screw gland.

  • Page 24: Connection Of Sample Outlet And Sample Inlet

    Installation DW/P 3.2.11 Connection of sample outlet and sample inlet The outlet funnel cover is attached to the outlet funnel. Loosen the cover of the outlet funnel from the fastening. Push the open drain tube from the last flow through armature through the cover of the outlet funnel until it protrudes inside.

  • Page 25: Providing Sample Flow At The Sample Inlet

    DW/P Installation Insert long cables into the cable passage under the IQ S ENSOR module stack. 3.2.13 Providing sample flow at the sample inlet Ensure that the fluid circuit is completely closed and tight. Plug the sample feed tube into the connector for the sample feed on the drinking water panel and secure it with a tube clamp.

  • Page 26: Starting The Measuring Operation

    Installation DW/P Starting the measuring operation Prerequisite:  The system is started up.  The sample flow is set.  All sensors are displayed in the measured value display on the terminal of the IQ S ENSOR Make the settings for sensors on the IQ S ENSOR (see system operating manual of the IQ S ENSOR...

  • Page 27: Maintenance And Cleaning

    DW/P Maintenance and cleaning Maintenance and cleaning Maintenance Component Maintenance Sensor See operating manual of the sensor Other components See operating manuals of the components Cleaning Drinking water panel Clean the drinking water panel, tubes and component surfaces by wiping them with a moist cloth.

  • Page 28: System Expansion

    Maintenance and cleaning DW/P Screw in the screws on the undersides of the flow through armatures again. Install the sensors in the flow armatures (see section 3.2.8 I D 19 NSTALLING THE CHLORINE SENSOR INTO THE FLOW THROUGH ARMATURE see section 3.2.9 I D 17 NSTALLING THE SENSOR IN THE FLOW THROUGH...
  • Page 29 DW/P Maintenance and cleaning figure 4-1 Flow through armatures (example D 19) 1 Flow through armature 2 Sample feed tube 3 Sample outlet tube 4 Guide rail for mounting flow through armatures 5 Click screw connection sample inlet 6 Click screw connection sample outlet 7 Holes for mounting the flow through armature Insert a screw with washer in each of the two holes (7) and mount the flow armature on the rail.

  • Page 30: Connect The Tube To The Click Screw Connection Of The Flow Through Armature

    Maintenance and cleaning DW/P 4.3.3 Connect the tube to the click screw connection of the flow through arma- ture 1 Sleeve of the click screw connection (blue) figure 4-2 Click screw connection (closed) Pull out the sleeve of the click screw connection (1) until it audibly dis- engages with a click.

  • Page 31: Technical Data

    DW/P Technical data Technical data Drinking water panel Drinking water panel Dimensions (H x W x D) Approx. 850 x 700 x 13 mm Material PVC rigid foam, spumed, white Mounting 4 holes in the drinking water panel Diameter 8.5 mm Distances 60 mm from the edge Ambient...

  • Page 32: Components

    Technical data DW/P Components Maintenance Dimensions (H x W) 160 x 120 mm console MTC/C Material Kömacel (PVC hard integral foam board), white Flow through Material armature D 17 Sealing material for pH, ORP, con- ductivity, oxygen Application temperature Max. 40 °C Flow rate Max.
  • Page 33 DW/P Technical data Flow through Material armature D 19 Sealing material for chlorine Application temperature Max. 40 °C Flow rate Max. 60 l/h Pressure load Max. 0.5 bar Process connection Polyurethane tube – Outer diameter: 6 mm – Inner diameter: 4 mm –...
  • Page 34 Technical data DW/P Pressure reducer Material Brass, plastic, stainless steel Pr-DN10 Sealing and membrane mate- rial Application temperature Max. 40 °C Pressure before pressure reg- Max. 25 bar ulator (inlet) Pressure after pressure regula- Max. 6 bar* Minimum pressure difference 1 bar Figure *.Deviating values when operated on the drinking water plate (see section 5.1)

  • Page 35: Components With Power Supply

    DW/P Technical data Dosing ball valve Housing material PVC-U Do-DN10 Ball sealing material PTFE Pressure Max. 10 bar *.Deviating values when operated on the drinking water plate (see section 5.1) Components with power supply Some components of the drinking water panel require a power supply. For more information, see the component operating manual.

  • Page 36: Accessories, Maintenance Equipment And Replacement Parts

    Accessories, maintenance equipment and replacement parts DW/P Accessories, maintenance equipment and replacement parts Description Model Order no. Flow through armature for sensors D 17 401990 Flow through armature for chlorine sensors D 19 401991 MIQ module for 2 IDS sensors MIQ/IDS2 480032 MIQ module for 4 IDS sensors...

  • Page 37: Disposal

    DW/P Disposal Disposal Handle and dispose of all waste in compliance with local laws and regulations. EU only: Correct disposal of this product — WEEE Directive on waste elec- trical and electronic equipment This marking on the product, accessories or literature indicates that the product should not be disposed of with other waste at the end of its working life.
  • Page 38 Disposal DW/P ba77278e01 01/2024...
