Installation, Operating,
Maintenance and Safety Instructions for

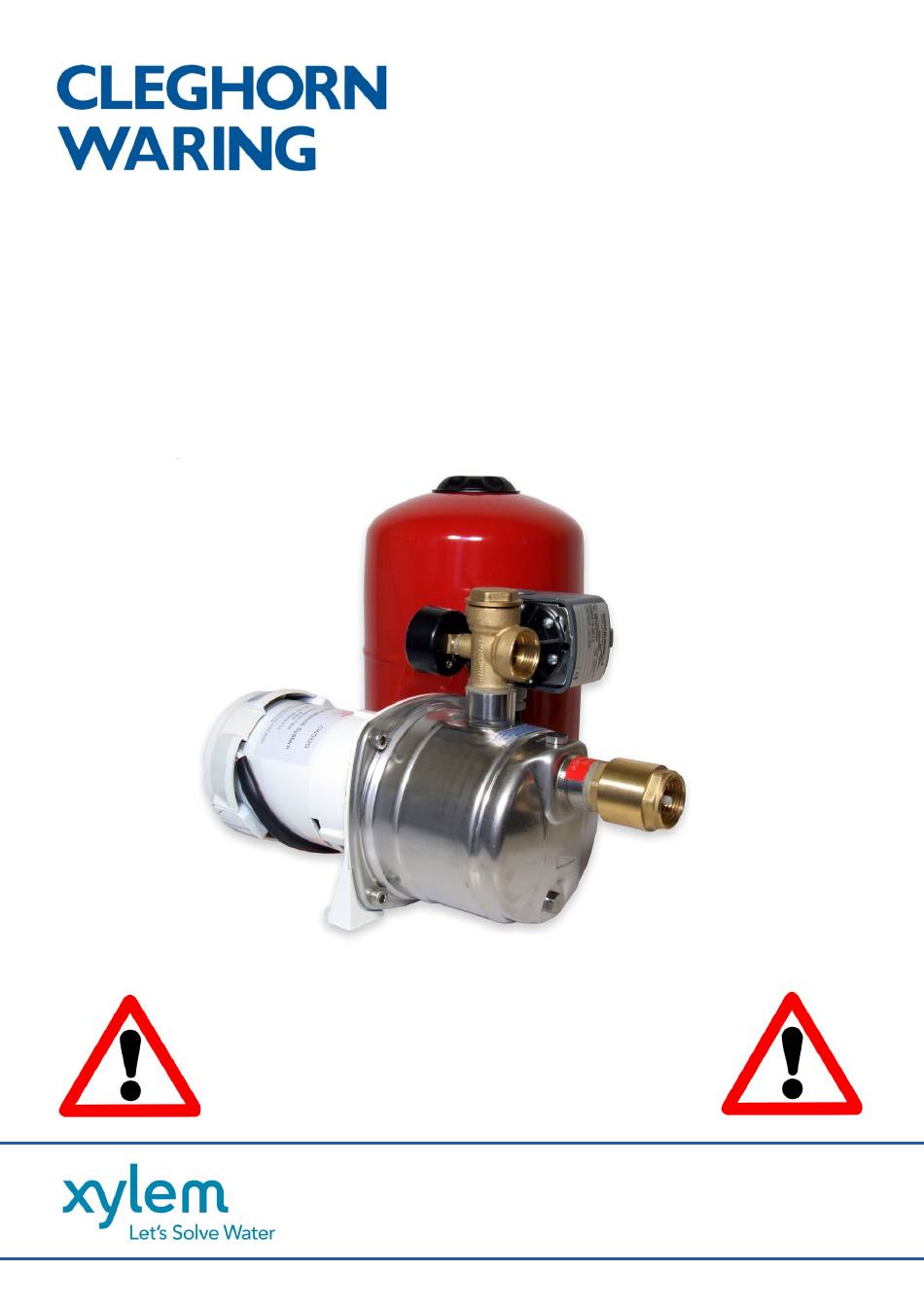

Pressurised water system for boats
To obtain the best performance from your
'Pressurised water system' please read these
Failure to observe the recommended procedures
may result in early and severe damage, and may
invalidate the supplier's guarantee.
CW332
24 volt d.c.
instructions carefully.
Xylem Water Solutions UK Ltd
Bingley Road • Hoddesdon • Hertfordshire • EN11 0BU • UK
Telephone: +44 (0)1462 480380 Fax: +44 (0)1462 482422
mail@cleghorn.co.uk
www.jabscoshop.com
24V DC-CW332
DOC531/11
Advertisement
Table of Contents
Related Manuals for Xylem CLEGHORN WARING CW332
Summary of Contents for Xylem CLEGHORN WARING CW332
- Page 1 Failure to observe the recommended procedures may result in early and severe damage, and may invalidate the supplier’s guarantee. Xylem Water Solutions UK Ltd Bingley Road • Hoddesdon • Hertfordshire • EN11 0BU • UK Telephone: +44 (0)1462 480380 Fax: +44 (0)1462 482422 mail@cleghorn.co.uk...
-
Page 2: Table Of Contents
Contents: Page 1. Checking your pump on delivery ............. 2 2. Scope of use ................... 2 3. Installing the pump ................3 4. Fitting the accumulator tank ............4 - 5 5. Connecting the electric supply ............6 6. Starting the pump ................6 - 7 7. -
Page 3: Installing The Pump
3. INSTALLING THE PUMP 1. Locate the pump in a dry, well-ventilated space. Provide adequate access, so that maintenance work can be carried out without difficulty. 2. Secure the pump to a firm, horizontal base. Mounting on rubber pads can help to reduce vibration and transmitted noise. -
Page 4: Fitting The Accumulator Tank
INCORRECT If a long inlet line is unavoidable, it may be advantageous to increase the size of the pipe. Check with your pump supplier if in doubt. Fit an inlet strainer to protect the pump from entry of solid material. The strainer should be of suitable material, with approximately 0.5mm mesh size and with an open area of at least 2½... - Page 5 Accumulator Tank Bracket Kit Fitting instructions...
-
Page 6: Connecting The Electric Supply
Your accumulator tank may be up to half - full of water in normal operation. It needs to be secured in place firmly to prevent movement and possible damage to pipe work and fittings. The accumulator tank contains an internal membrane, and may be mounted vertically, horizontally or in any convenient position close to the pump. -
Page 7: Operating The Pump
4. Check the water level in the supply tank, open taps and other outlets. Check that isolating valves in the inlet and discharge lines are fully open. 5. Switch on the pump. After a short time, water and air should start to flow from the open outlets. -
Page 8: Maintenance & Repair
8. Maintenance & Repair Your CW332 pump is designed to give long service with minimal attention. The shaft seal and the brushes in d.c. electric motors are wearing parts and may eventually need to be replaced. 9. Trouble Shooting PROBLEM POSSIBLE CAUSE ACTION Motor fails to start when... - Page 9 Insufficient flow or - pump running in - check direction of pressure reverse pump rotation - Inlet or discharge pipe - check pipework, blocked strainers - air leak - check pipework, strainers and pump connections Pump will not reach cut- - low voltage - check voltage at pump, out pressure...
-
Page 10: Spare Parts
10. Spare Parts REF № DESCRIPTION Drain plug Pump body Filler plug Diffuser + Venturi Impeller nut Impeller Mechanical Seal ‘O’ ring Seal housing Slinger Motor 1” BSP non-return valve 1” BSP nipple 5 way adaptor 1” BSP plug Pressure switch Pressure gauge 8 litre accumulator tank Accumulator tank fitting kit...
