HEADER

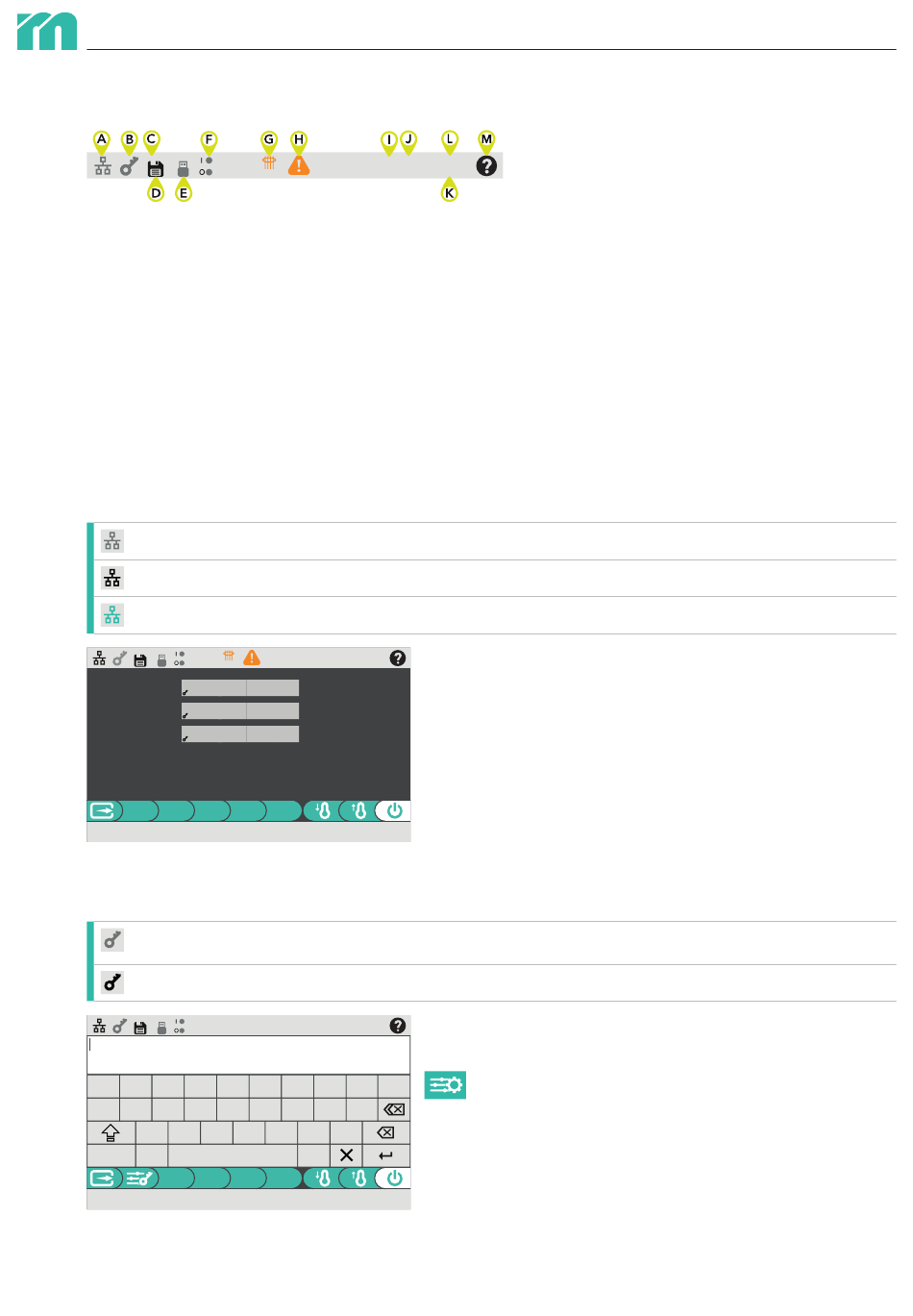

The header contains operating elements and status information.
Program 1
E ä Status USB stick (display only)
F ä Status digital input / alarm output (display only)
G ä Status residual current (display only)
H ä Alarm status
I
ä Select temperature unit
J ä Change language
K ä Date / Time
L Firmware version (display only)
M Call up on-screenä Help
STATUS NETWORK / NETWORK SETTINGS
The status of the network interface can be recognised by the colour of the network symbol.
The device is not connected to any network.
The device is connected to a network, no data is communicated.
The device is connected to a network and data is being communicated.
Program 1
IP adress:
Subnet mask:
Gateway:
LOGIN
The key symbol indicates the authorisation level for changing the setting parameters.
The user has access to the parameters that don't require a login. This authorisation level applies, for example,
after switching on the profiTEMP IM.
The user has logged in with the valid password and has access to all parameters.
Program 1
q w e
a s d
y x
?123 ,
20
10 mA
pT IM 072122O
°C EN 01.08.2022
10 mA 08:10:24
192 : 168 : 0 : 200
255 : 255 : 255 : 0
192 : 168 : 0 : 1
Network
pT IM 072122O
°C EN 01.08.2022
08:10:24
r t z u i o
f g h j k l
c v b n m
.
Login
A ä Status Network / Network settings
pT IM 072122O
B ä Login
°C EN 01.08.2022
08:10:24
C Currently loaded mould program (display only)
D ä Manage mould programs
To change the network settings, a ä Login is required.
After tapping on the network symbol, the network interface can be
configured (IP address, subnet mask, gateway). Click on the input field
to be changed, make the entry and confirm.
Tap the key symbol to log in. Enter the password in the screen page.
The factory default password is user. It can be changed at any time.
Tap the button to change the password. Follow the prompts
p
and enter the old password to be changed. Then enter the
new password and confirm it again.
