Manual profiTEMP IM
3

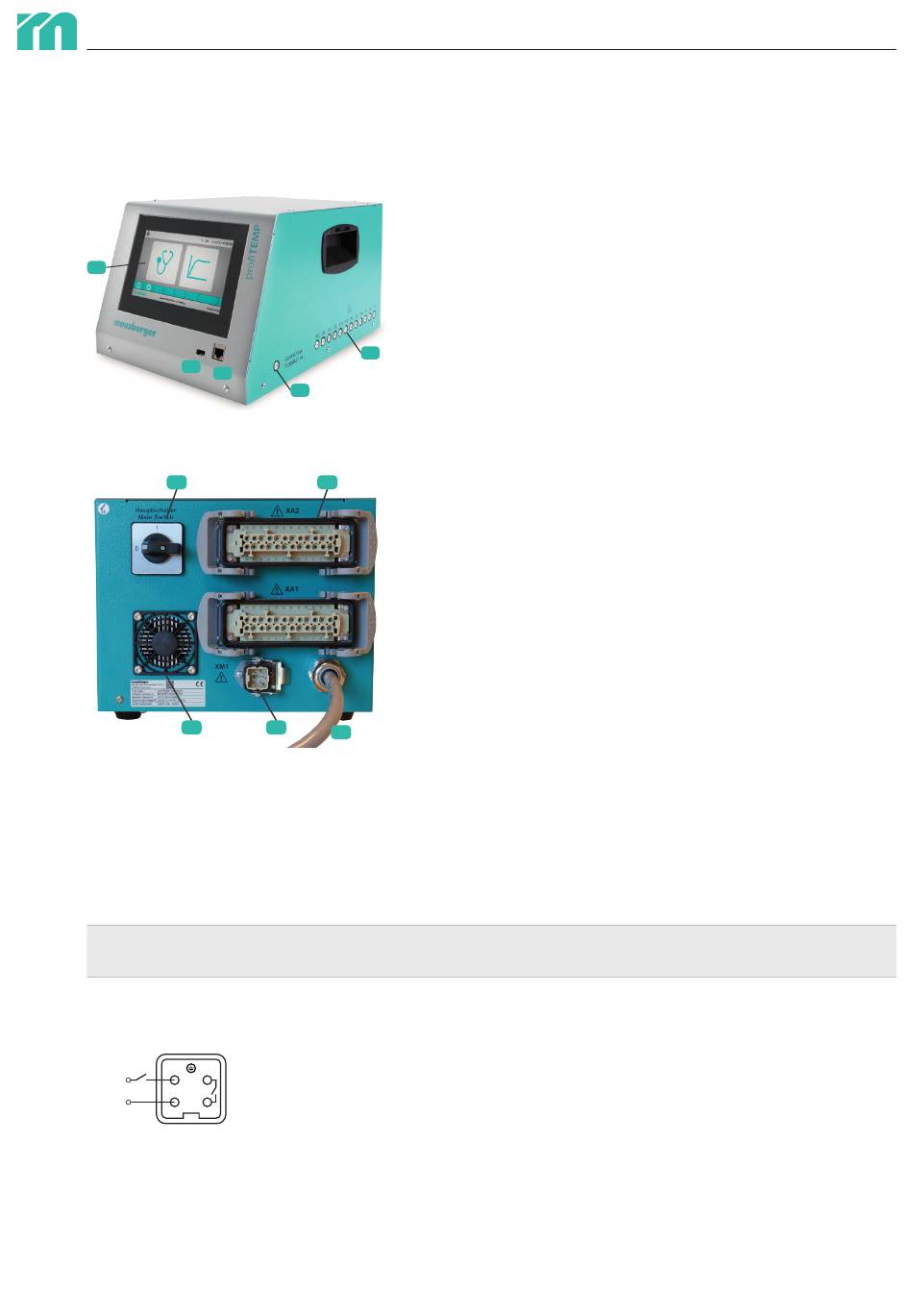

DESIGN AND CONNECTIONS

3.1

FRONT/SIDE VIEW

C
A
3.2

REAR VIEW

A
C
3.3

MAINS CONNECTION

The device may only be operated with the mains voltage indicated on the label. The 32 A CEE mains socket intended
for connection must be checked for sufficient and permissible fuse protection. The installation of the mains socket must
include a disconnecting device in the form of a switch or circuit breaker which disconnects all live wires. This must be
suitably located and easily accessible by the user. It must be marked in such a way that it can be clearly assigned to the
connection.
When using a mains connection adapter for operation on a 16 A CEE socket, the system parameter ä [SP21] Current
limit L1/L2/L3 must be adjusted.
3.4

DIGITAL INPUT / ALARM OUTPUT XM1

24 VDC 3
0 VDC 4
1/2 Alarm output (max. 230 VAC / 1 A)
3/4 Digital input 24 VDC / 0 VDC (external voltage)
5 Protective conductor
10
D
B
E
B
E D
E
The potential-free alarm output activates a collective alarm of all zones in case of error messages
5
(function configurable ä [SP40] Function digital output).
1
The digital input is used to activate a function (configurable ä [SP41] Function digital input, e.g.
2
standby, boost).
A USB port
B Network connection
C Operating screen (7" touch screen)
D Heating fuses
E Control fuse
A Main switch
B Mould connection XA1 and XA2
C Fan / air outlet
D Digital input / alarm output XM1
E
Mains connection
