Skyrc e3 Instruction Manual

Ver. 2
WARNING AND SAFETY NOTES
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similar qualified persons in order to avoid a hazard.
This charger is suitable for charging rechargeable LiPo batteries. Do not attempt to
recharge non-rechargeable batteries. Charging other types of batteries may cause fire or
explosion.
Never leave the charger unattended when it is connected to its power supply.
The allowable AC input voltage is 100-240V AC. Never connect it to any other voltage.
Protect charger from dust, dirt and damp.
Never place the charger and batteries connected to it on any form of flammable surface.
Never operate the charger in the vicinity of inflammable material or gas.
During charging, the battery must be placed in a well ventilated area . Never place the
charger on a carpet or similar surface.
Take great care to maintain correct battery polarity, and avoid shot-circuit. Read the battery
manufacturer's instructions and adhere to them strictly.
The charger must only be plugged into an earthed socket-outlet (for portable class 1
battery chargers for outdoor use)
The connection to the supply mains is to be in accordance with the national wiring rules
when battery chargers for installation in caravans and similar vehicles.
WARRANTY
AND
SERVICE
We guarantee this product to be free of manufacturing and assembly defects for a period of one
year from the time of purchase. The warranty only applies to material or operational defects,
which are present at the time of purchase. During that period, we will repair or replace free of
service charge for products deemed defective due to those causes. For any repair or replace
service, please contact your dealer in the first instance, who is responsible for processing
guarantee claims.
This
warranty
is
not
valid
for
any
damage
or
subsequent
damage
arising
as
a
result
of
misuse,

modification
or
as
a
result
of
failure
to
observe
the
procedures
outlined
in
this
manual.
INSTRUCTION MANUAL
SK-100081
- 1 -
INTRODUCTION
Thank you for your choice of the SKYRC e3, 100-240V AC balance charger. This unit is simple to
use but its operation does require some knowledge on the part of the user. Please read this entire
operating manual completely and attentively before using this product, as it covers a wide range of
information on operating and safety.

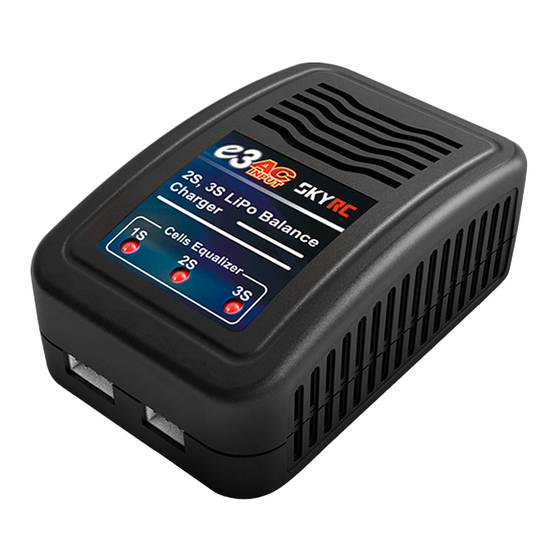

SKYRC e3 Charger is an economic, high quality 100-240V AC balance charger, designed for
charging LiPo batteries from 2-3 cells in balance mode. The circuit power is 11W and max charge
current can reach to 1.2A.

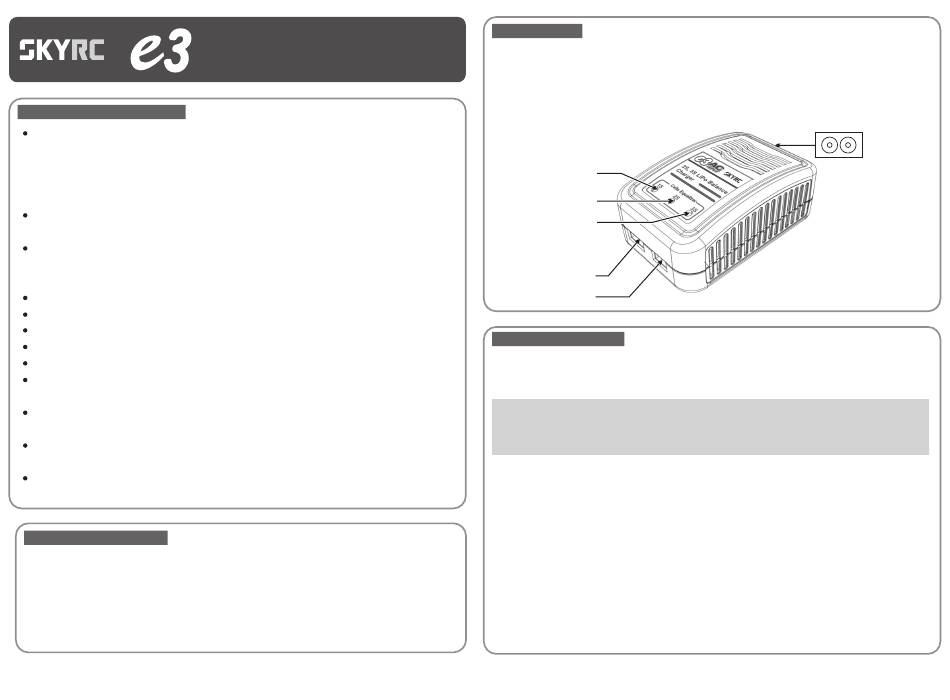

Cell 1 LED Indicator
Cell 2 LED Indicator
Cell 3 LED Indicator
3-Cell Balance Port
2-Cell Balance Port
CHARGE PROCEDURES
SKYRC e3 comes with the built in power supply. You can connect the AC power cord to the
AC socket (100-240V AC) directly.
Please refer to following steps to charge the battery,
Note: Please DON'T connect more than one battery to the balance ports
simultaneously. ONE battery is allowed to connect to the balance port at a
time and this charger can charge ONE battery at a time.
1) Insert the AC power cord into the charger.
Insert the AC cord into a wall socket (100-240V). All LEDs will light green and flash red to
2)
indicate the charger is ready to charge.
3) Connect battery balance wire to balance port which is in front side of the charger, after 2
seconds, the charger detects the voltage of the battery and starts to charge.
4) The charger starts charging. The LEDs will glow constant red. If the battery pack is 2-cell, Cell 1
and Cell 2 LEDs will glow constant red; if the battery pack is 3-cell, Cell 1, Cell 2 and Cell 3
LEDs will glow constant red.
5) When a cell is completely charged, its corresponding LED will glow constant green. A 2-cell
pack is fully charged when LEDs 1 and 2 are constant green. For 3-cell pack, all LEDs will glow
constant green to indicate the pack is fully charged.
6) Unplug the battery from the charger and the charge status LED will stay green and flash red
which indicates the charger is ready to charge another battery.
AC 100-240V
Power Jack
- 2 -
