Skyrc NC1500 Instruction Manual

INSTRUCTION
MANUAL
NC1500

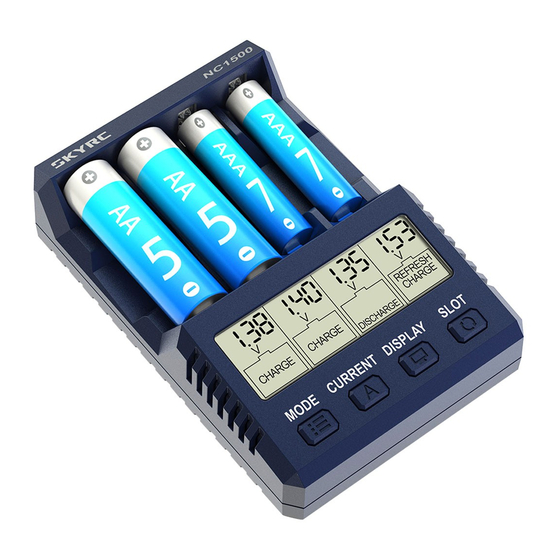

AA/AAA NiMH Battery Charger & Analyzer

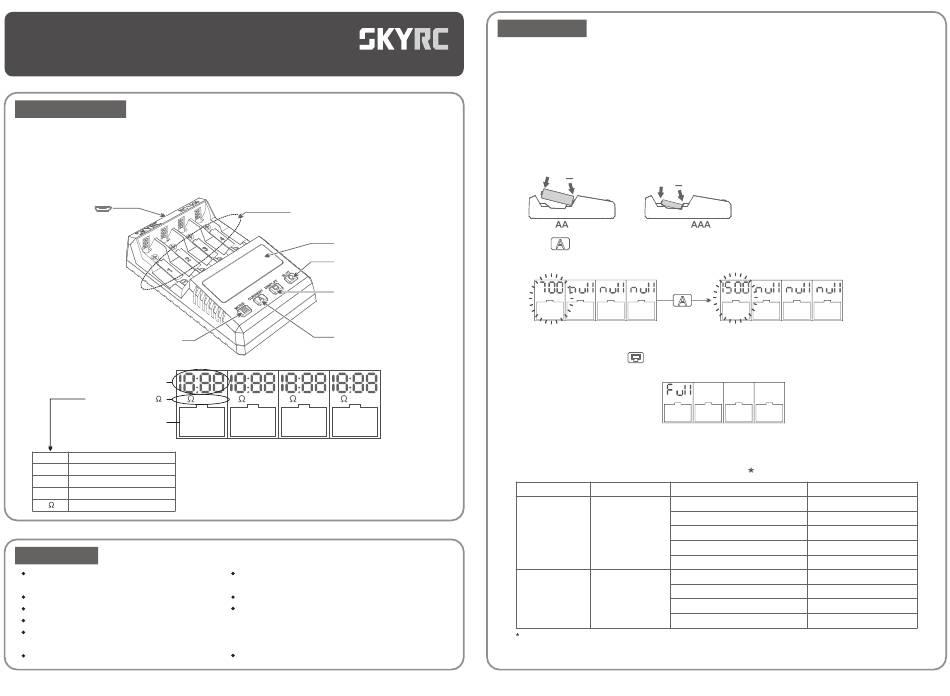

INTRODUCTION
Thank you for purchasing SkyRC NC1500 AA/AAA Battery Charger & Analyzer.
Charging batteries is usually a primitive, boring and mundane activity, and it still is. What matters during the charging
activity, especially for AA/AAA NiMH battery charging? No doubt, accuracy and safety. The creation of NC1500 charger
not only arises out of need, but also from the desire to have a simple but safe and accurate charger for such battery.
NC1500 has 4 independent slots and supports AA/AAA NiMH batteries, offers maximum charge rate of 1500mA.
USB Power Input
5V/2.1A
A good USB power
adapter with at least
2.1A(or 2100mA)
output is required.
To change the operation modes
among REFRESH, CHARGE and
DISCHARGE.
Number Display Area
m V mAh
m
Unit(mA,V,mAh,h, )
REFRESH
Function Indicator CHARGE
DISCHARGE
*At the start of a program, the device always performs a quick standard
mA Charge or discharge current
Battery voltage test first in order to determine the internal battery resistance. Aged or
V
Battery capacity poor condition batteries have a higher IR and therefore heat up more
mAh
Hour (duration of operation) during charge or discharge. The values are estimates and will vary
h
m * Battery internal resistance depending on the state of the batteries and operation environment.
FEATURES
Four independent slots, can charge 1-4 pcs of
NiMH AA or AAA in any combinations.
Individual battery charging status
LCD display for easy reading.
Four buttons for easy operation.
Three modes of operation:
CHARGE, DISCHARGE and REFRESH.
Battery internal resistance detection
SK-100154
Battery
Slots
LCD Display
To switch access between slots.
To display the battery
voltage, current, capacity,
elapsed time and internal
resistance.
To select charge or
discharge current.
m V mAh m V mAh m V mAh
REFRESH REFRESH REFRESH
CHARGE CHARGE CHARGE
DISCHARGE DISCHARGE DISCHARGE
Powered by any USB adapter, smartphone charger
or power bank.
Maximum 1500mA charge rate for 1 or 2 batteries.
Termination methods:
- Individual minus delta voltage (-dV)
- Individual safety timer
- Temperature sensor
Trickle charge: to always have fully charged batteries
OPERATION
1. CHARGE
This function allows you to charge a single AA or AAA or mixed with AA and AAA battery up to four at one time.
Charges your battery with selected constant current. Charging terminates when the battery is full or some other
termination criteria has been met. Useful when battery needs to be recharged. Should be used on batteries
known to be in good condition and which have been in continuous use.
Note: As the 4 slots are independent from each other, we only take slot 1 as an example for below
operation mode descriptions.
1) Connect the USB power adapter to the charger. A good USB power adapter with at least
2.1A(or 2100mA) output is required to power up NC1500.
2) Insert a battery into slot.
+
+
3) Press to select charge current (200, 500, 700, 1000, 1500mA),
Maximum charging current can be set at 1500mA when only ONE or TWO batteries are charged.
The maximum charging current for THREE or FOUR batteries is 1000mA.
mA
CHARGE
Press CURRENT
After setting, the interface will stop flashing and CHARGE will initiate automatically 8 seconds later.
4) Once the process is initiated, no other operations, like mode change, current selection etc. will be accepted.
Users, however, can click to check the battery real-time parameters like current, voltage, charge
capacity, internal resistance and elapsed time.
5) Displays Full when the CHARGE
process has finished.
CHARGE
Trickle charging: After the battery is fully charged, the charger will give a small amount of current to
maintain the fully charged level.
Charging Time with Various Charging Current
Size of Battery Battery Capacity Charging Current Selected (mA)
AA 2600mA
AAA 1000mA
Charge times are a guide only. Timing may differ according to brands/mAh capacity and environment conditions at
the time of charge
mA
CHARGE
Estimated Charging Time
1500 (1 or 2 Pcs) ~100min
1000 ~2h 30min
700 ~3h 30min
500 ~5h
200 ~13H
1000 ~60min
700 ~70min
500 ~100min
200 ~5h
