Skyrc e8 Instruction Manual

INTRODUCTION
Thank you for your choice of the SKYRC e8, 100-240V AC balance charger. This unit is simple to use but
its operation does require some knowledge on the part of the user. Please read this entire operating
manual completely and attentively before using this product, as it covers a wide range of information on
operating and safety.

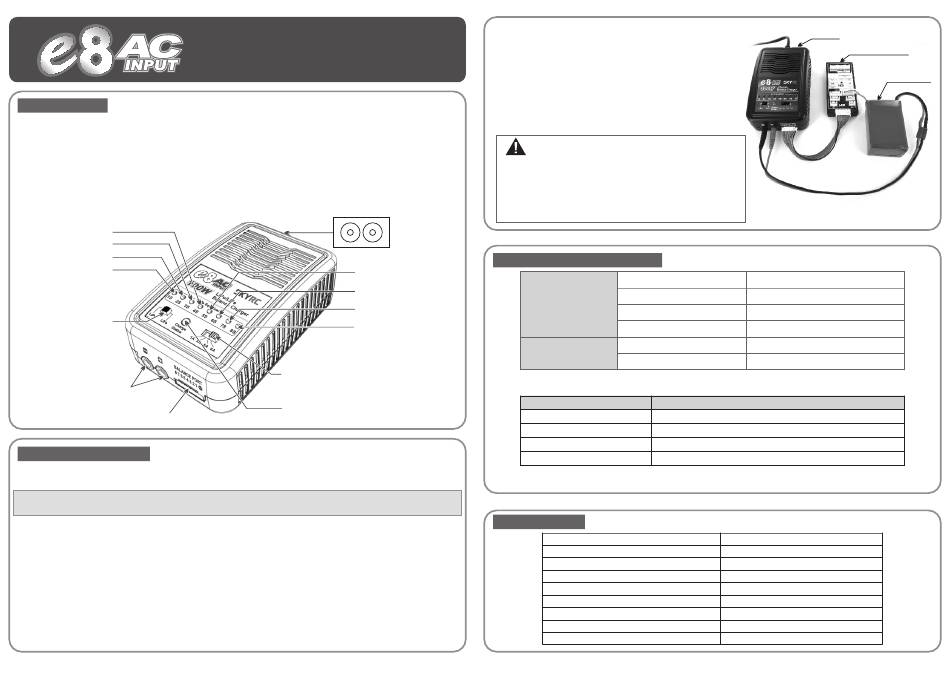

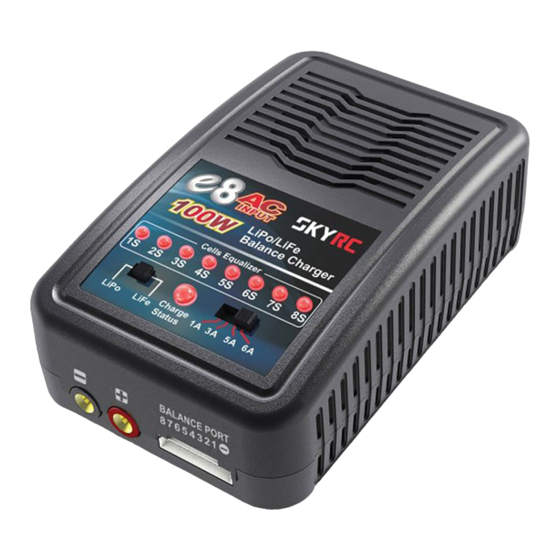

SKYRC e8 Charger is an economic, high quality 100-240V AC balance charger, designed for charging
LiPo and LiFe batteries from 2-8 cells in balance mode. The circuit power is 100W and max charge
current can reach to 6A. There are four different charge current 1A/3A/5A/6A which can be selected. You
could select the proper charge current according to battery capacity.
Cell 4 LED Indicator
Cell 3 LED Indicator
Cell 2 LED Indicator
Cell 1 LED Indicator
Battery Type Switch
Battery
Socket
XH Balance
Socket
CHARGE PROCEDURES
SKYRC e8 comes with the built in power supply. You can connect the AC power cord to the AC socket
(100-240V AC) directly.
Note: This charger can charge LiPo and LiFe batteries ONLY in balance mode. In this case, you must use
balance board to connect the charger with the battery.
Please refer to following steps to charge the battery,
1) Insert the AC power cord into the charger.
2) Insert the AC cord into a wall socket (100-240V). All LEDS will light for 1 second and the charge status LED will flash
green which indicates the charger is ready to charge.
3) Select the battery type LiPo/LiFe by the slide switch.
Select the proper charging current 1A/3A/5A/6A by the slide switch.
4)
5) Connect the battery to the charger main battery lead to battery socket and balance wires to balance socket.
6) The charger starts charging. The charge status LED and the cell status LED will glow constant red. If the battery
pack is 2-cell, Cell 1 and Cell 2 LEDs will glow constant red; if the battery pack is 3-cell, Cell 1, Cell 2 and Cell 3
LEDs will glow constant red; and so on.
7) During the charging progress, when the charge status LED glows constant red, the charger is charging in CC mode;
INSTRUCTION MANUAL
SK-100096
Cell 5 LED Indicator
Cell 6 LED Indicator
Cell 7 LED Indicator
Cell 8 LED Indicator
Charge Current Switch
Charge Status LED Indicator
-
1
-
when the charge status LED glows constant orange,
the charger is charging in CV mode;
8) When the cell LED is flashing, this cell is discharging
for balancing.
9) When the battery is fully charged, the charge status
LED will glow constant green.
10) Unplug the battery from the charger and the charge
status LED will flash green which indicates the
charger is ready to charge another battery.
CAUTION:
This diagram shows the correct way to connect your battery to
the e8 charger while charging in balance mode.
Failure to connect as shown in this diagram will damage this
charger.
The main battery leads must be connected along with the
balance lead connector as shown before charging your battery.
AC 100-240V
Power
Jack
EXPLANATION OF LED STATUS
Charge Status LED
Cell Status LED
* Error Message
If there is an error, the charge status LED and one of the cell LED will blink in sequence.

LED Status
charge status LED + Cell 1 LED
charge status LED + Cell 2 LED
charge status LED + Cell 3 LED
charge status LED + Cell 3 LED
In this case, please disconnect the power cord from the wall socket and unplug the battery from the charger.
SPECIFICATION
AC Input
Battery Type
Cell Count
Charge Current
Cell Terminate Voltage
Circuit Power
Current Drain for Balancing
Dimension
Weight
CONNECTION DIAGRAM
The charger is ready to charge.
LED green blinking
LED glows constant red The charger is charging in CC mode.
The charger is charging in CV mode.
LED glows constant orange
The charging process finishes.
LED glows constant green.
The cell is charging.
LED glows constant red.
The cell is discharging.
LED flashes red
Error Message
The voltage difference among cells is too big (more than 300mV)
Wrong connection
Over current protection
Reverse polarity
100-240V Charger/Cell Status
LiPo/LiFe
2-8 cells
1A/3A/5A/6A ± 10%
LiPo: 4.2V ± 0.02V / LiFe: 3.6V ± 0.02V
100W
200mA
150x93x51mm
450g
-
2
-
Charger
Balance Adaptor
LiPo Battery
