Summary of Contents for Regulus RGC 300 HP 2.5

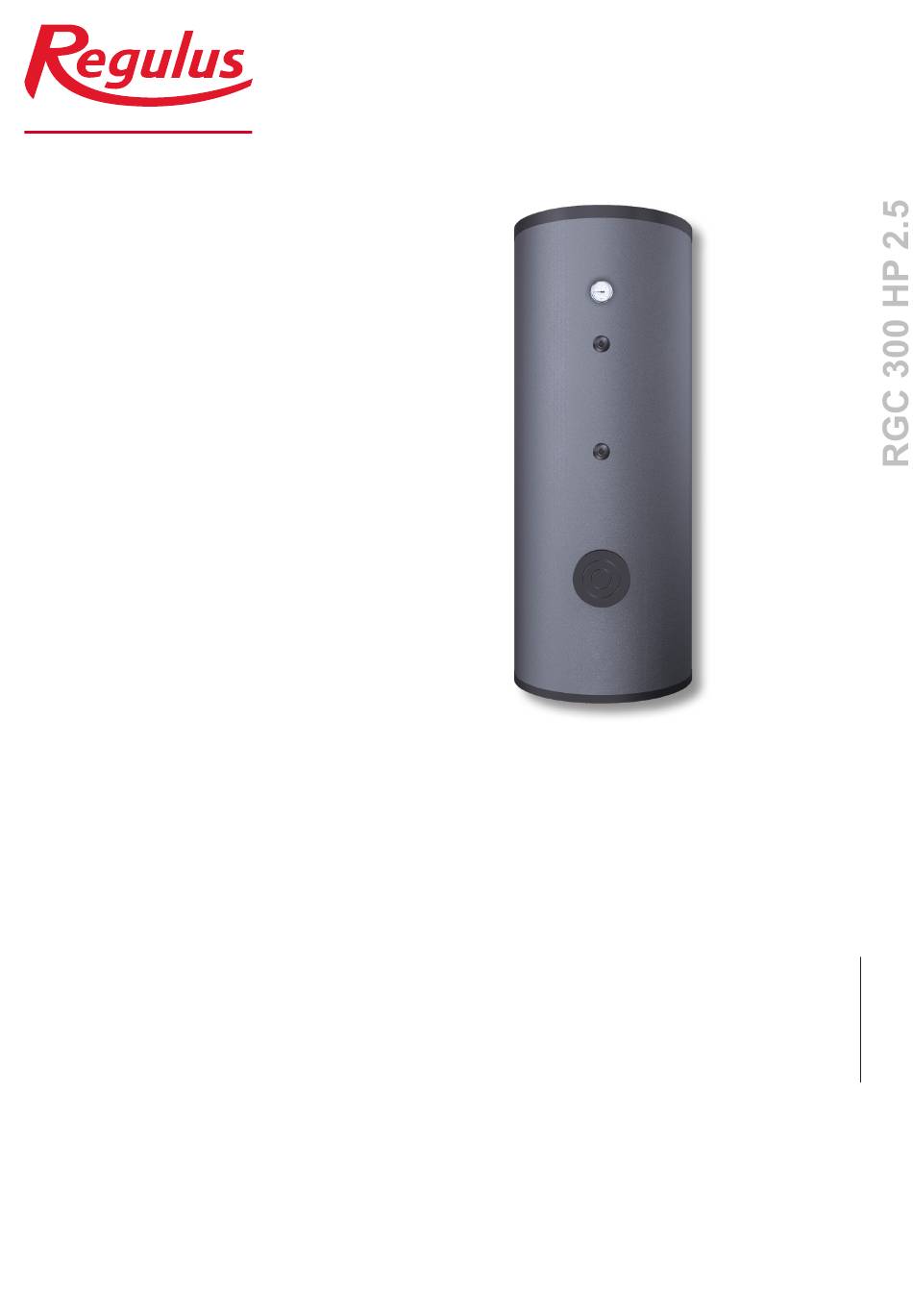

- Page 1 Installation and Operation Manual Hot Water Storage Tank with enlarged heat exchanger for heating RGC 300 HP 2.5 RGC 300 HP 2.5...
-
Page 2: Table Of Contents
6.2 Installation of an electric heating element ................6.3 Connection to water mains ....................6.4 Electronic anode rod installation ..................6.5 Commissioning ........................7 Maintenance, Replacement of Magnesium Anode Bar ..............8 Disposal ............................9 Warranty ............................REGULUS - RGC 300 HP 2.5 - www.regulus.eu │... -
Page 3: Description

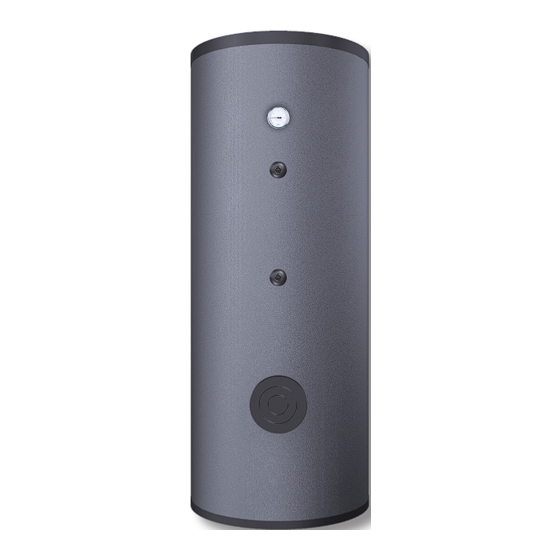

1 - Description RGC 300 HP 2.5 Hot Water Storage Tank (further “tank“) with one enlarged heat exchanger with G 1“F connections. The tank permits installation of an electric heating element into a G 6/4“ connection located on a flange. -
Page 4: Technical Data And Dimensions
El. heating element models ETT-A, D, F, M, N, P Heating element max. length 470 mm Electronic anode rod code 9176 Spare parts (magnesium anode rods) Mg anode (A1), G 5/4" code 464 REGULUS - RGC 300 HP 2.5 - www.regulus.eu │... - Page 5 G 1/2ʺ F Heat sources Inlet to heat source G 1ʺ F 1846 Return to heat source G 1ʺ F 1258 Other Flange 8 x M10 Magnesium anode rod G 5/4ʺ F 1205 REGULUS - RGC 300 HP 2.5 - www.regulus.eu │...
-
Page 6: Typical Layout Example With Hot Water Storage Tank
5 - Typical Layout Example with Hot Water Storage Tank Example - With a heat pump REGULUS - RGC 300 HP 2.5 - www.regulus.eu │... -
Page 7: Installation And Commissioning
Hot water quality must meet the conditions shown in the Table of limit values for total dissolved solids in hot water. Table of limit values for total dissolved solids in hot water Description Total dissolved solids (TDS) Chlorides Max. value 6.5 - 9.5 600 mg/l 40 mg/l 100 mg/l 20 mg/l 200 mg/l 0,2 mg/l REGULUS - RGC 300 HP 2.5 - www.regulus.eu │... -
Page 8: Maintenance, Replacement Of Magnesium Anode Bar
Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered warranty violation! v1.0-04/2023 ©2023 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
