Installation and Operation Instructions
STORAGE WATER HEATERS
RDC 160, RDC 200 and RDC 300
EN
v. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDC 160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Regulus RDC 160

Summary of Contents for Regulus RDC 160

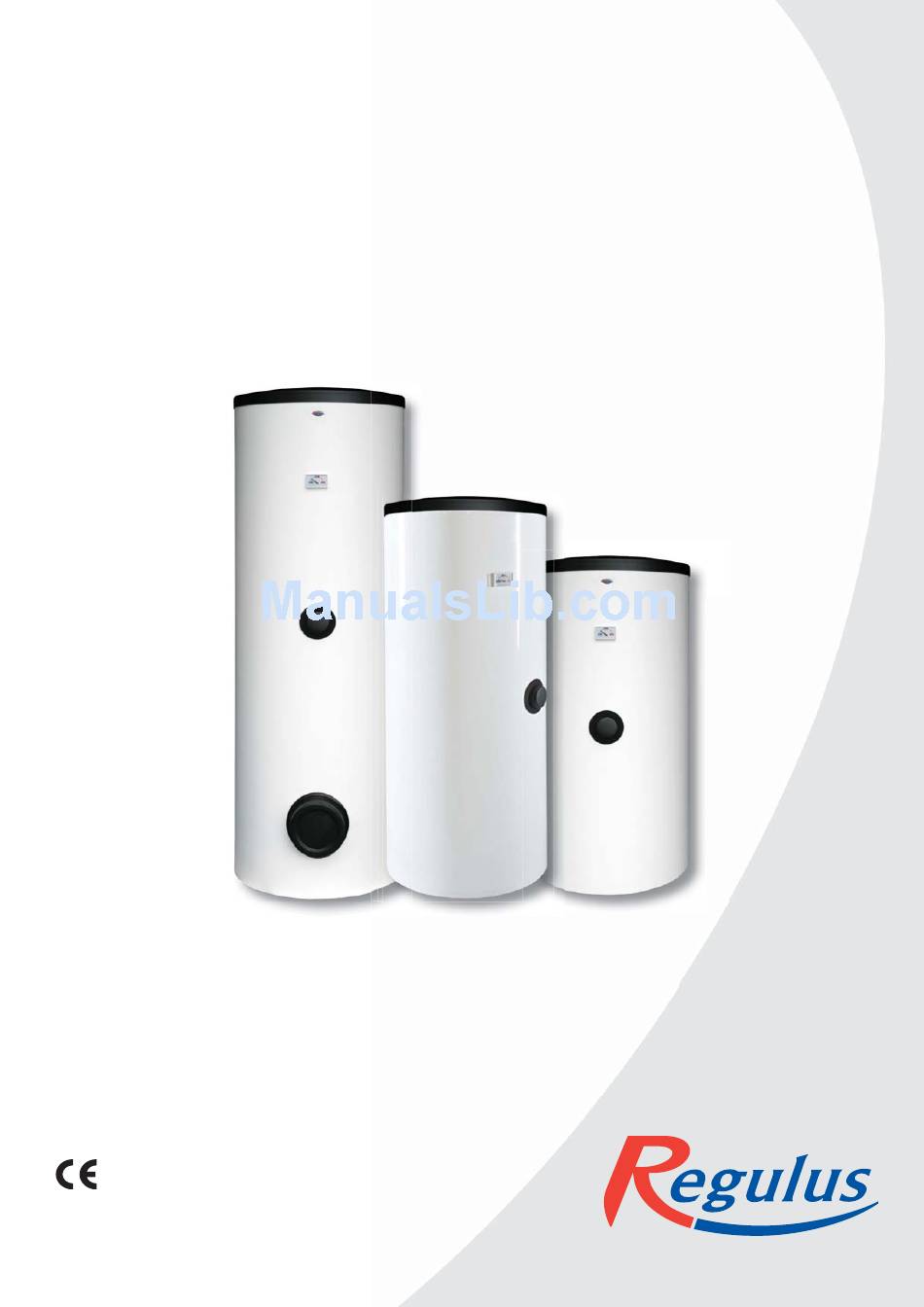

  • Page 1 Installation and Operation Instructions STORAGE WATER HEATERS RDC 160, RDC 200 and RDC 300 v. 1.1...

  • Page 2: General Information

    Tanks are supplied with a CFC-free hard polyurethane insulation 50 mm thick. (RDC 160 - 42 mm). The RDC 160 and RDC 200 models have a mantle of sheet metal, white painted. The RDC 300 tank has a surface of white PS. Tanks are fitted with 3 height-adjustable legs enabling compensation of max. 10 mm height difference.

  • Page 3: Technical Data And Dimensions

    Max. working pressure in heat exchanger .......... 10 bar DHW heating from 10 °C to 45 °C at heating water temp. of 60 °C ... 545 l/h (19 kW) Empty weight ..................70 kg REGULUS - STORAGE WATER HEATERS RDC - www.regulus.eu │...
  • Page 4 Max. working pressure in heat exchanger .......... 10 bar DHW heating from 10 °C to 45 °C at heating water temp. of 60 °C ... 590 l/h (24 kW) Empty weight ..................97 kg REGULUS - STORAGE WATER HEATERS RDC - www.regulus.eu │...
  • Page 5 Max. working pressure in heat exchanger .......... 10 bar DHW heating from 10 °C to 45 °C at heating water temp. of 60 °C ... 860 l/h (35 kW) Empty weight ..................114 kg REGULUS - STORAGE WATER HEATERS RDC - www.regulus.eu │...
  • Page 6 5 - Typical Installation Examples Example I. With a gas boiler. gas boiler heating system recirc. 3-way zone valve Example II. With a solar system and el. backup heating. bb bbb recirc. REGULUS - STORAGE WATER HEATERS RDC - www.regulus.eu │...

  • Page 7: Installation And Commissioning

    In this case, just visual check of the electronic anode indication lamp is sufficient. RDC 160 and RDC 200 tanks are not designed for use of an electronic anode rod.
  • Page 8 Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered a warranty violation! 01/2014 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu 143 00 Praha 4 E-mail: sales@regulus.cz CZECH REPUBLIC REGULUS - STORAGE WATER HEATERS RDC - www.regulus.eu │...

This manual is also suitable for:

Rdc 300Rdc 200
