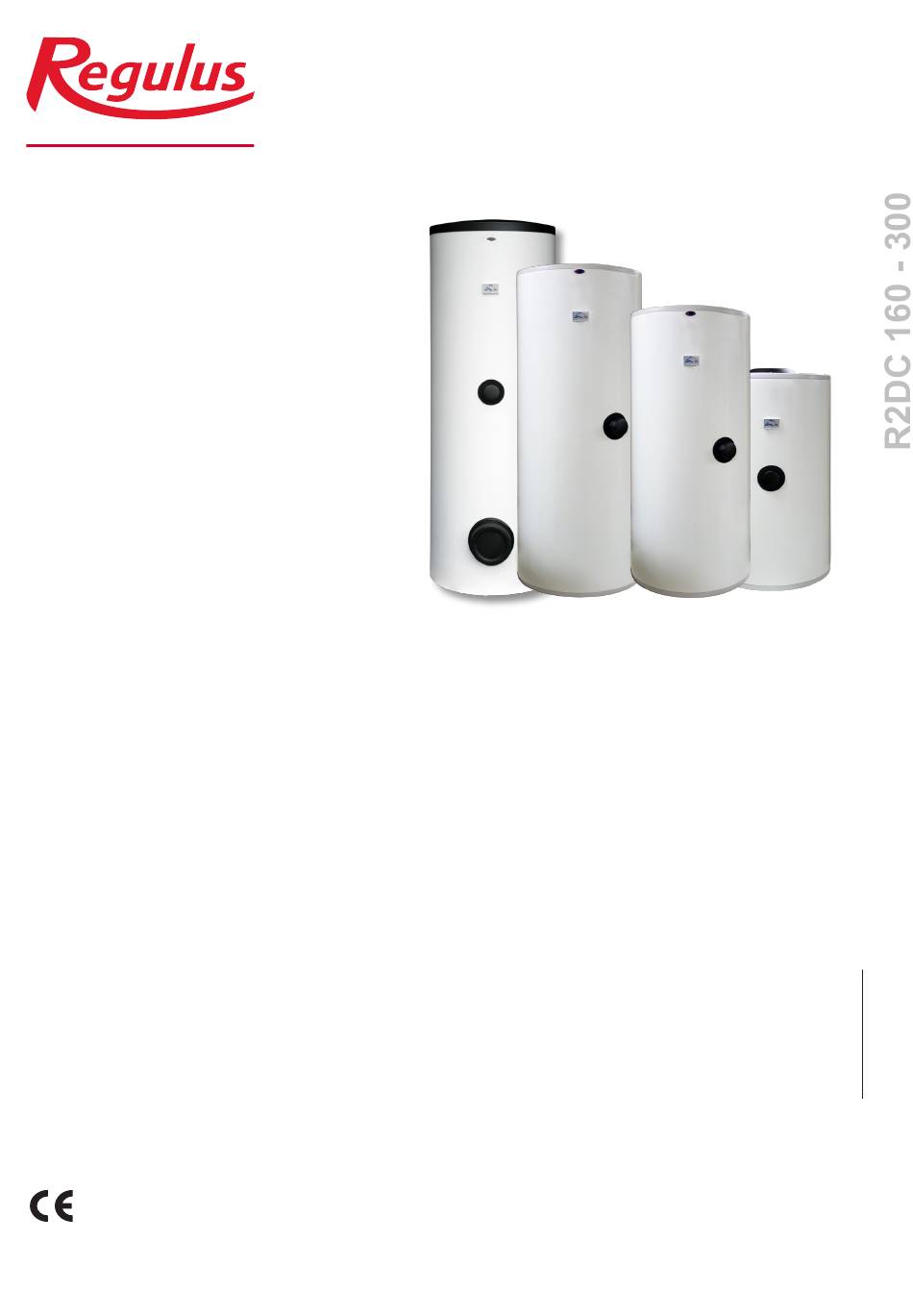

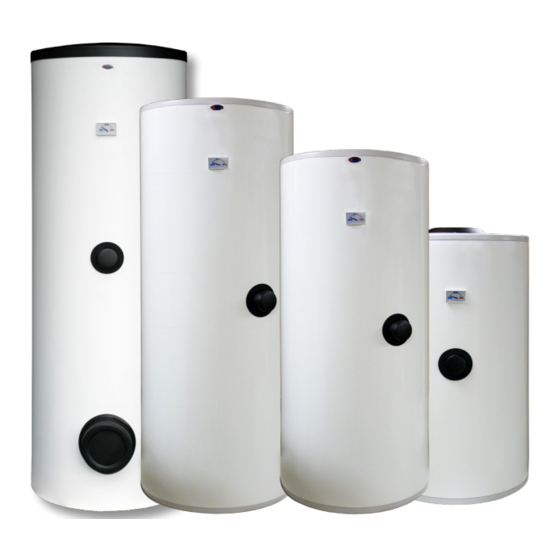

- Page 1 Installation and Operation Manual HOT WATER STORAGE TANKS R2DC 160, R2DC 200, R2DC 250 and R2DC 300 R2DC 160 - 300...
-
Page 2: General Information
1.5 - Packing Tanks are delivered standing, each on its pallet, R2DC 160, R2DC 200 and R2DC 250 are packed in a card- board wrap with polystyrene filling. R2DC 300 is screwed to its pallet, wrapped in foil and protected by a cage of wooden laths. - Page 3 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..270 (11) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..320 (13) l/h (kW) Empty weight: ..............76 kg REGULUS - R2DC - www.regulus.eu │...
- Page 4 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..400 (16) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..400 (16) l/h (kW) Empty weight: ............... 105 kg REGULUS - R2DC - www.regulus.eu │...
- Page 5 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..400 (16) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..470 (19) l/h (kW) Empty weight: ..............120 kg REGULUS - R2DC - www.regulus.eu │...
- Page 6 DHW heating Δt=35 °C (80/60 - 10/45) - upper heating coil: ..400 (16) l/h (kW) DHW heating Δt=35 °C (80/60 - 10/45) - lower heating coil..590 (24) l/h (kW) Empty weight: ..............125 kg REGULUS - R2DC - www.regulus.eu │...
-
Page 7: Typical Installation Example
ÚT central heating (heating system) ball valve check valve automatic air vent valve pressure temperature relief valve REDV pressure reducing valve (optional) drain valve expansion vessel service valve PV-ÚT HC safety valve Magnet Filterball REGULUS - R2DC - www.regulus.eu │... -
Page 8: Installation And Commissioning
In order to prevent water loss, an expansion tank should be installed at the cold water inlet as well (8l volume for R2DC 160, R2DC 200 and R2DC 250, 12l volume for R2DC 300). Should the water be too hard, install a water softener before the tank. In case the water contains mechanical impurities, install a strainer. -
Page 9: Maintenance, Replacement Of Magnesi- Um Anode Bar
This product is covered by warranty according to the conditions described in this Manual and according to the Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered a warranty violation! REGULUS - R2DC - www.regulus.eu │... - Page 10 ©2023 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
