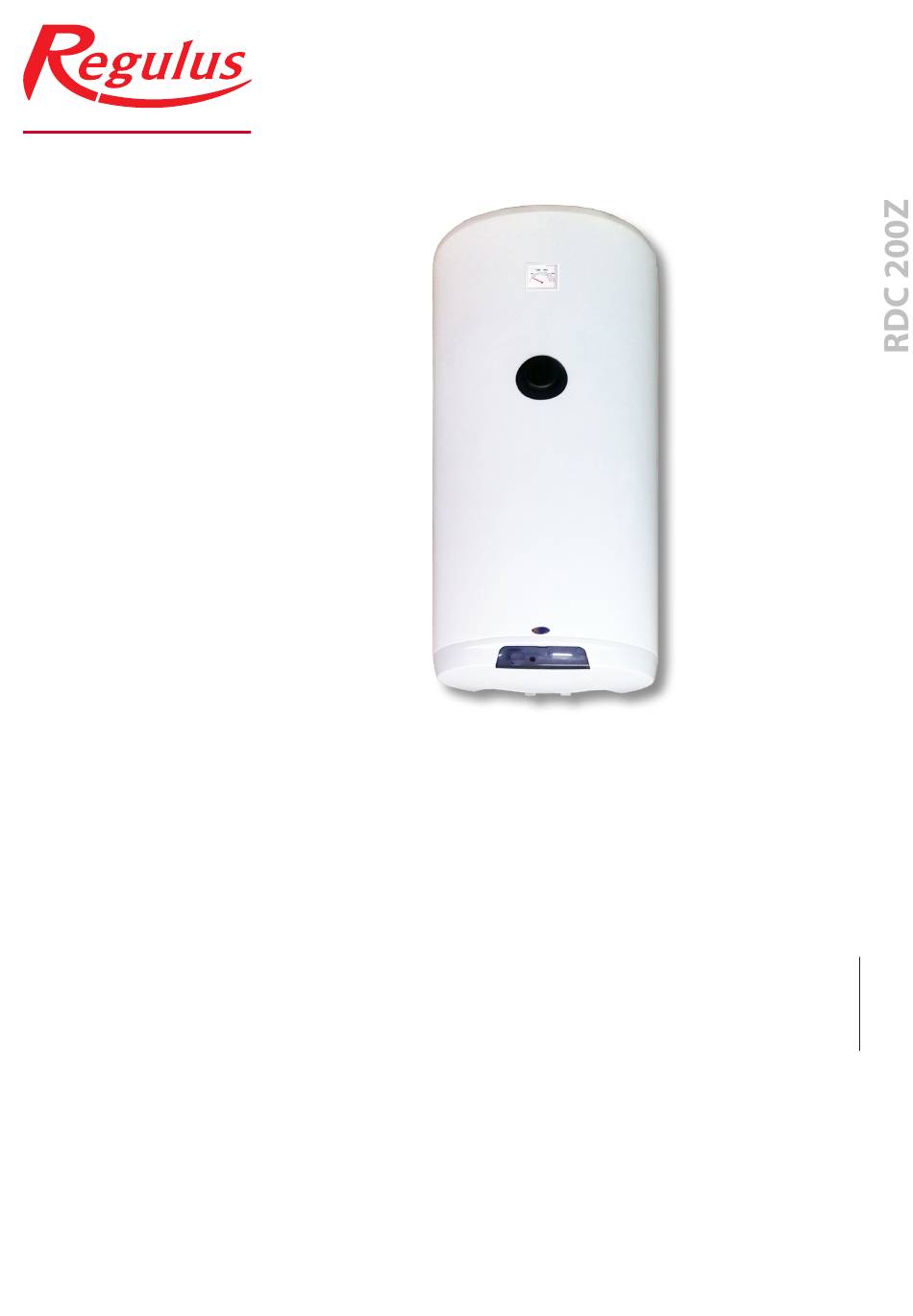

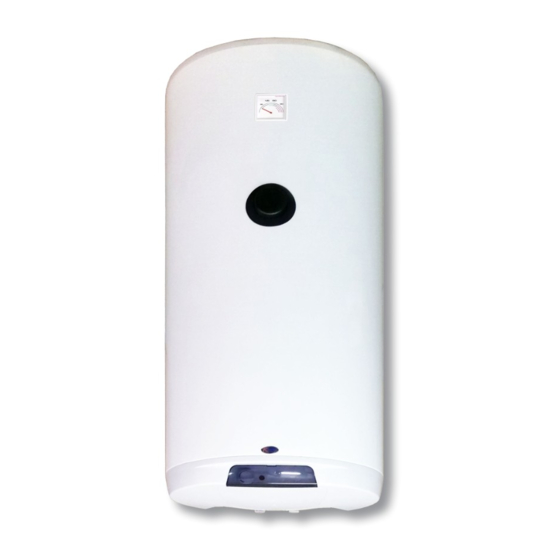

- Page 1 Installation and Operation Manual WALL HUNG HOT WATER STORAGE TANK RDC 200Z RDC 200Z...
-
Page 2: General Information
DIN 4753. Further qualitative improvement is ensured by a magnesium anode rod installed inside the tank. 1.3 - Thermal insulation Tanks are supplied with a CFC-free hard polyurethane insulation 42 mm thick. The RDC 200Z model has a mantle of sheet metal, white painted. -
Page 3: Technical Data And Dimensions
(The indicator is a part of the tank, located in the upper part of the jacket.) Earthing bolt M 8(M10) x 20 Lower bracket 4 washers, diam. 13 2 toothed washers diam. 13 4 fixing bolts, M12x30 Upper bracket Tank in transport position Zásobník v dopraní poloze RDC 200Z - www.regulus.eu │... - Page 4 5 - Typical Installation Examples Example I. With a gas boiler. plynový boiler kotel heating system otopný systém recirc. 3-way zone valve 3c.ZV Example II. With a solar thermal system and el. auxiliary heating bb bbb recirc. RDC 200Z - www.regulus.eu │...
-
Page 5: Installation And Commissioning
Hot water quality must meet the conditions shown in the Table of limit values for total dissolved solids in hot water, page 4 of this Manual. Set the heating controller in compliance with the documentation and manufacturer’s recommendations. Check regularly a proper function of all control and adjusting elements. RDC 200Z - www.regulus.eu │... - Page 6 Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered warranty violation! v1.0-05/2018 ©2018 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
