CIB UNIGAS RX92R-FGR Manual page 45

ER

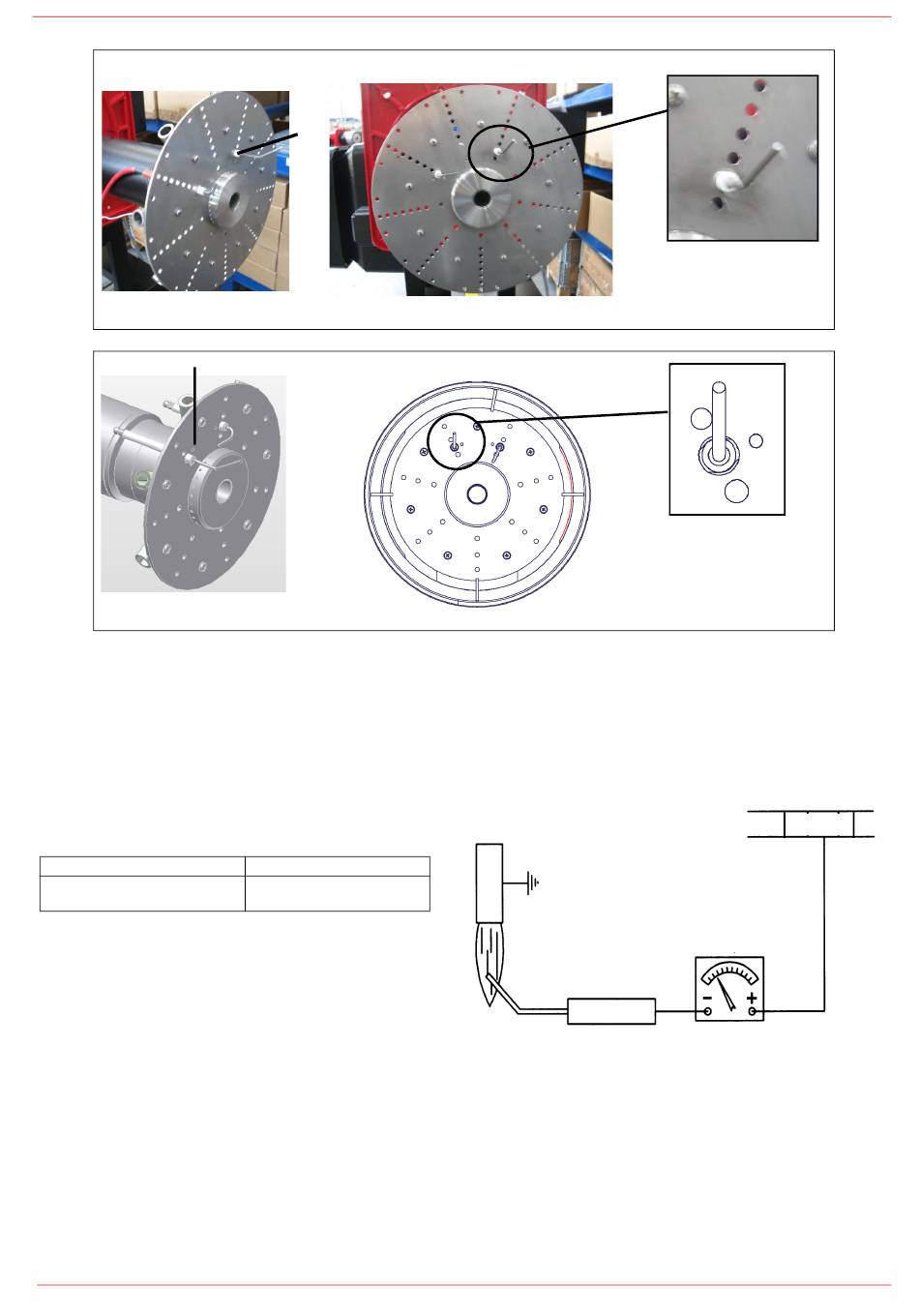

Checking the detection current with electrode (natural gas)
To check the detection signal follow the scheme in the picture below. If the signal is less than the value indicated, check the position of
the detection electrode or detector, the electrical contacts and, if necessary, replace the electrode or the detector.
Control box
Siemens LMV5x
electrodes - type B
ER
electrodes - type C
Minimum detection signal
6 µA (values on display:
50%)
Flame
Detection electrode
45
PART IV: MAINTENANCE
Connector
X10-03.1
µA DC SCALE
