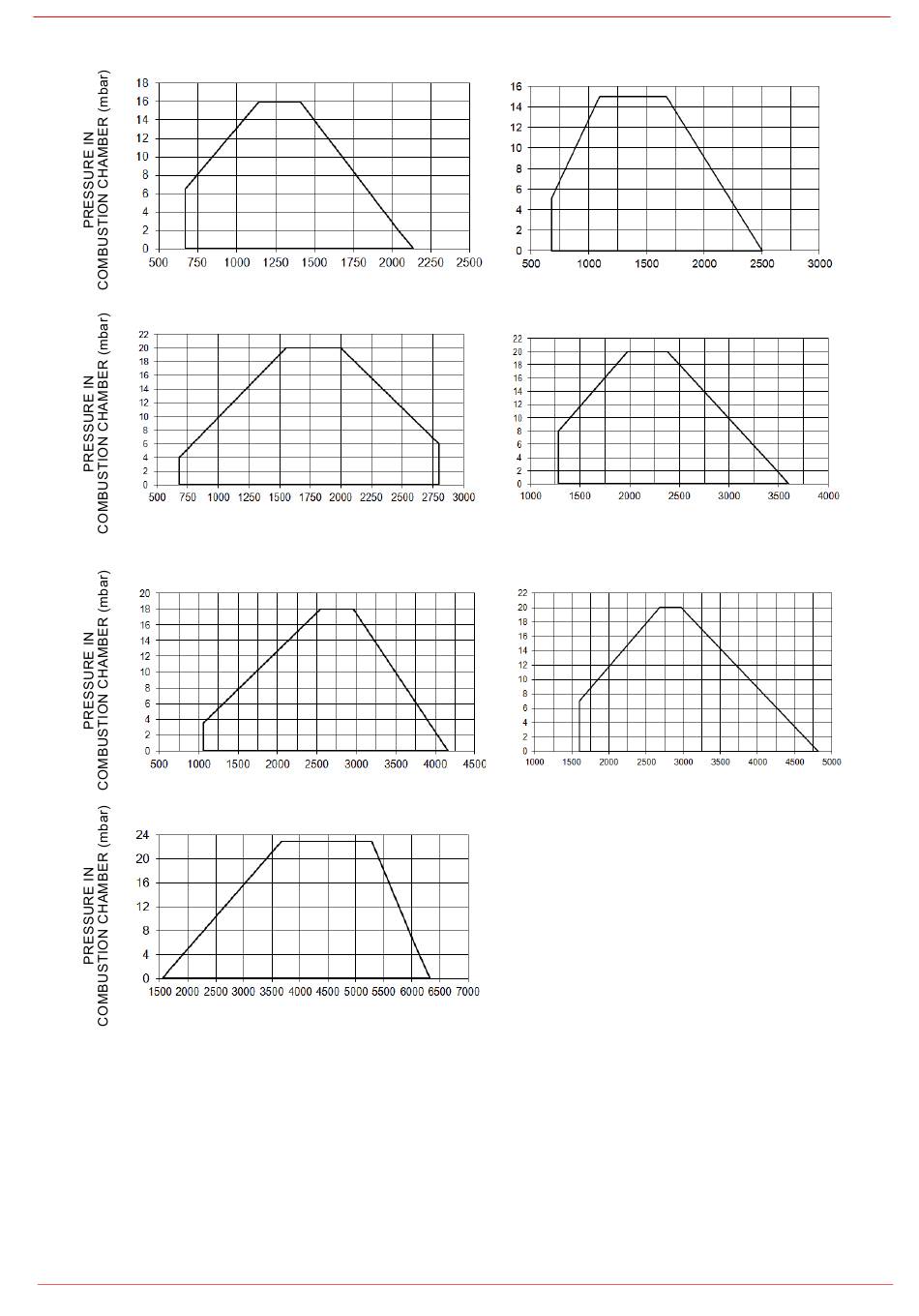

Performance Curves

RX92R-FGR

RX512R-FGR

RX515-FGR

RX525-FGR

To get the input in kcal/h, multiply value in kW by 860.

Data are referred to standard conditions: atmospheric pressure at 1013mbar, ambient temperature at 15° C

NOTE: The performance curve is a diagram that represents the burner performance in the type approval phase or in the laboratory

tests, but does not represent the regulation range of the machine. On this diagram the maximum output point is usually reached by

adjsuting the combustion head to its "MAX" position (see paragraph "Adjusting the combustion head"); the minimum output point is

reached setting the combustion head to its "MIN" position. During the first ignition, the combustion head is set in order to find a

compromise between the burner output and the generator specifications, that is why the minimum output may be different from the

Performance curve minimum

RX92-FGR

RX512-FGR

RX520-FGR
