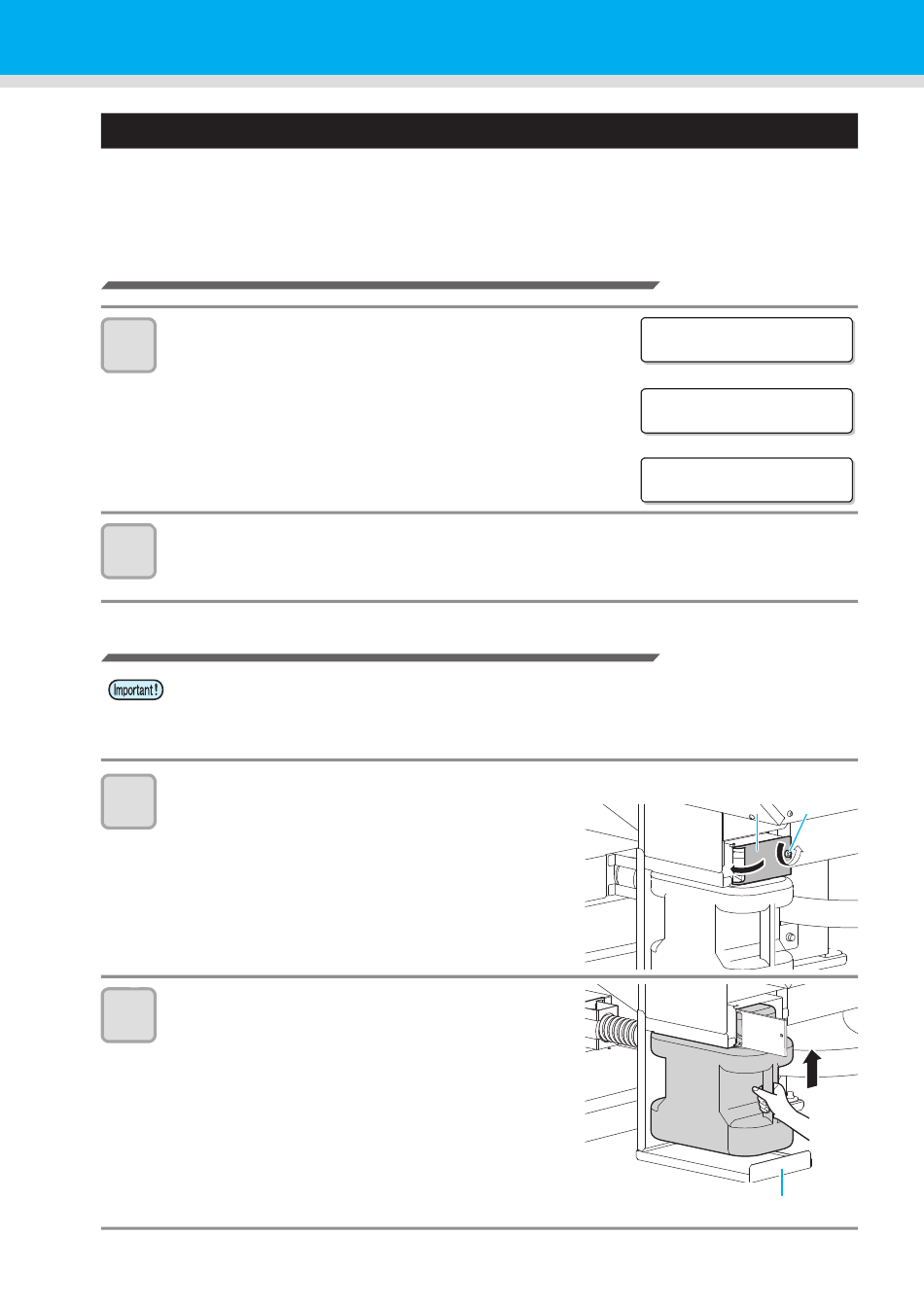

If a Waste Ink Tank Confirmation Message Appears
Ink used in head cleaning, etc. is stored in the waste ink tank on the lower right side of the machine. The sensor
monitors the discharged amount of ink in this machi ne. When that reaches a specified amount, the machine
displays a confirmation message. (When this message is displayed, consider the replacement of the waste ink
tank.)
Confirmation Message in LOCAL
1
The message on the right is displayed.
2
Check the state of the waste ink tank
Replace the waste in k tank with another
• Be sure to wear the supplied safety glasses and gloves when replaceing the waste ink tank.
Otherwise, you may get ink in your eyes.
• Do not replace the waste ink tank while this machine operates (during printing or cleaning).
• When waste ink may spill out during the work, wipe it off with a waste cloth etc.
1
Open the waste ink tank cover.
• Remove the screw attaching to the waste ink tank cover
and open the cover to the front.
2
Lift the waste ink tank a little.
• Lift the waste ink tank up to the position where it does not
hit the stopper.
1
< L OCA L >
Wa s t e i n k n e a r f u l l
or
< L OCA L >
Wa s t e i n k f u l l
or
< L OCA L >
Wa s t e i n k t a n k n o n e
Waste ink tank
cover Screw
Stopper
