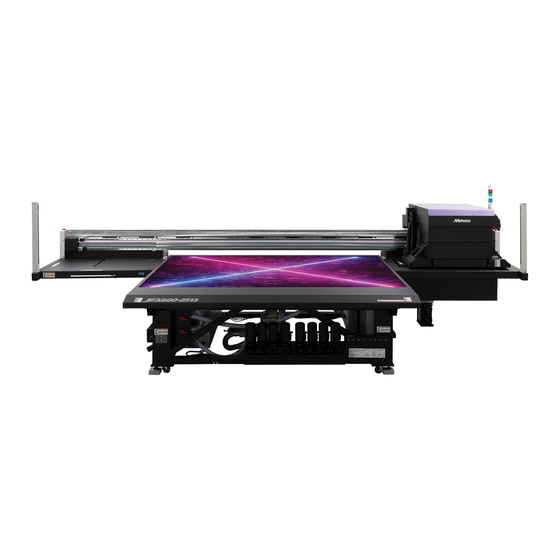

MIMAKI JFX600-2513 Care And Maintenance
Uv inkjet printer
Hide thumbs
Also See for JFX600-2513:
- Manual (40 pages) ,
- Network connection setup manual (24 pages) ,
- Operation manual (164 pages)
Subscribe to Our Youtube Channel
Related Manuals for MIMAKI JFX600-2513
Summary of Contents for MIMAKI JFX600-2513

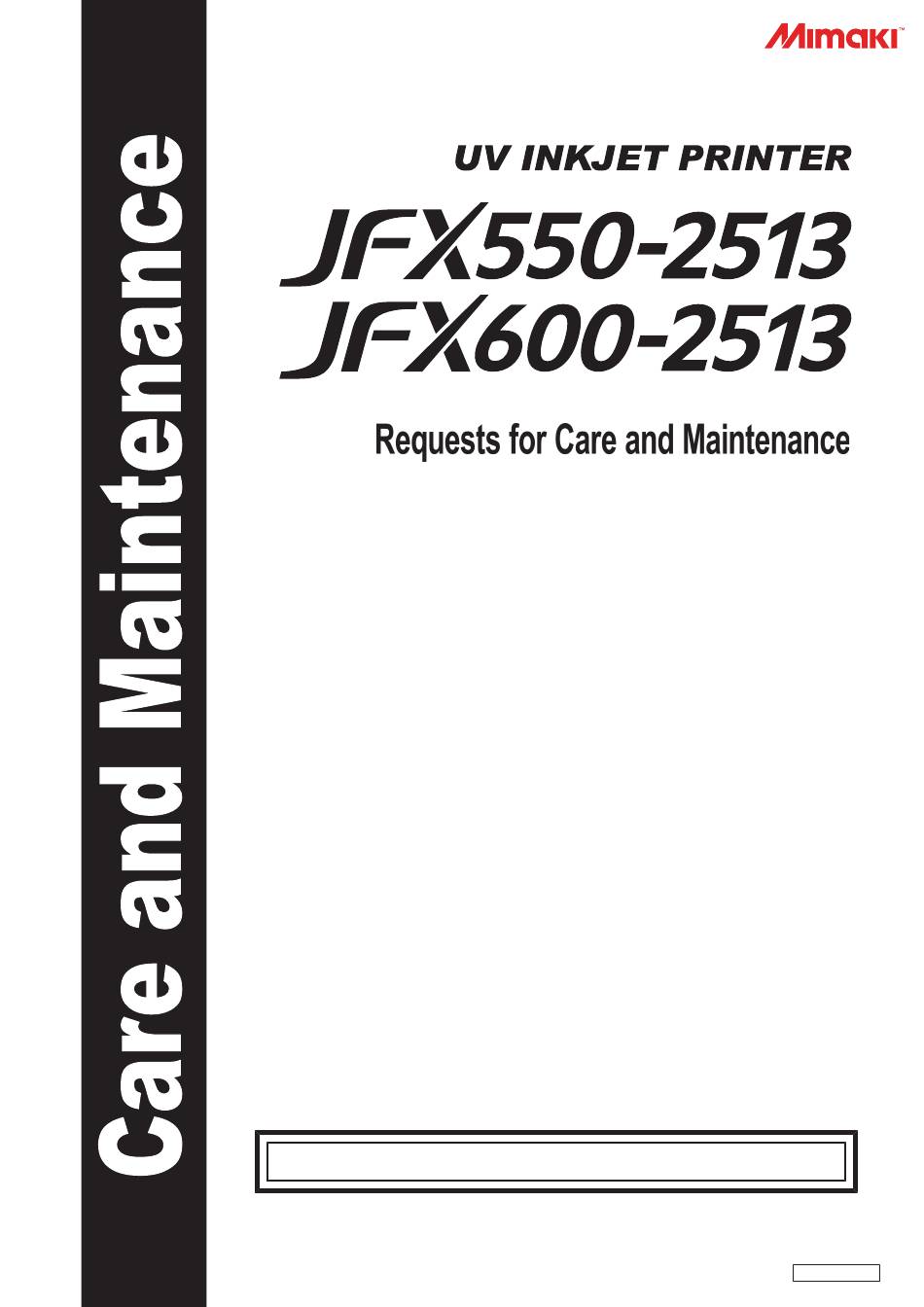

- Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203595-10 Original instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Maintenance 1. Maintenance Precautions ............ 4 2. Maintenance Timing .............. 5 Tools Required for Maintenance............ 5 3. Performing Maintenance............. 6 Ink Maintenance ................... 6 Wiper Cleaning .................. 6 Cap Rubber Cleaning ................ 8 Station Area Cleaning................ 8 NCU Cleaning.................. -
Page 3: Maintenance
Maintenance To ensure years of precise performance, maintain this product periodically based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product. -
Page 4: Maintenance Precautions
1. Maintenance Precautions 1. Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. Clean this machine and replace consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when this machine is used for extended periods. -
Page 5: Maintenance Timing
"Ink Maintenance"(P. 6) Tools Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid storing this product in locations accessible to children. -
Page 6: Performing Maintenance
3. Performing Maintenance 3. Performing Maintenance Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink bottle periodically to keep printing consistent. UV ink: once a month. White ink: once a day. l Shake the Ink bottle Shake the Ink bottle to the left and right slowly at least 20 times. - Page 7 3. Performing Maintenance Remove the wiper. • Hold the lugs on both sides of the wiper bracket, then pull out the wiper. Clean the wiper and bracket. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
-
Page 8: Cap Rubber Cleaning
3. Performing Maintenance Reattach the wiper at the original position. Touch [Finish] > [End] once cleaning is complete. Cap Rubber Cleaning The cap rubber keeps the print head nozzle surface from drying out. Continuing to use a dirty cap may affect ink take-up and lead to print defects (e.g., nozzle clogging, deflection). -
Page 9: Ncu Cleaning
3. Performing Maintenance From MENU on the touch panel, touch [MAINTENANCE]. • The Maintenance menu is displayed. Touch [Weekly maintenance] > [Weekly station maintenance]. • The carriage moves over the table. Clean the wiper tray. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. -
Page 10: Carriage Underside Cleaning
3. Performing Maintenance From MENU on the touch panel, touch [MAINTENANCE]. • The Maintenance menu is displayed. Touch [Daily maintenance] > [Daily station maintenance]. • The carriage moves over the table. Clean the NCU. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. - Page 11 3. Performing Maintenance Slide the maintenance cover on the left side of the Y-bar. • Lift the lever and slide it to the left. Maintenance cover Lever Clean the UV-LED lamp. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
-
Page 12: Ink Discharge Channel Cleaning
3. Performing Maintenance Once cleaning is complete, slide the maintenance cover on the left side of the Y-bar to close Maintenance cover Lever • Make sure the maintenance cover is returned to the correct position. Touch [Finish] > [End]. Ink Discharge Channel Cleaning Clean the ink discharge channel regularly to prevent clogging of the ink discharge channel below the cap. -
Page 13: Exterior Cleaning (E.g., Cover, Y-Bar, )
3. Performing Maintenance Table Cleaning Continuing to use the dirty table will cause dried ink and attached dust to rub against the head nozzle surface, resulting in print defects (e.g., nozzle clogging, deflection). Ink left adhering to the table for extended periods will be hard to remove, even with ethanol or solvents. - Page 14 3. Performing Maintenance LM Guide Wipe off dust from the left and right ends of the LM guide surface with a soft dry cloth. • The LM guide is lubricated. Never wipe with solvents such as ethanol. Wipe off any excess or dripping lubricant with a soft dry cloth.
-
Page 15: Consumable Item Replacement
To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations. -
Page 16: Carriage Filter Replacement
4. Consumable Item Replacement Mount a new wiper. Touch [Finish] > [End] once replacement is complete. • The wiper usage count is reset. Carriage Filter Replacement Check the mist filters and replace if very dirty. • Turn off the main power before performing maintenance tasks. Remove the carriage filter covers. -
Page 17: Flushing Filter Replacement
4. Consumable Item Replacement Flushing Filter Replacement The machine counts the amount of ink used in flushing. When a specified value is reached, SYSTEM ALARM on the touch panel. Use this as a guide for replacing the flushing filter. From MENU on the touch panel, touch [MAINTENANCE]. •... -
Page 18: Bottle Ink Wipe Filter Replacement
4. Consumable Item Replacement Remove the NCU ink-receiving pan. • Slide forward to remove. Remove the ink pad from the NCU ink-receiving pan. Ink pad Clean the NCU ink-receiving pan. Install a new NCU ink pad. Install the NCU ink-receiving pan. •... -
Page 19: Waste Ink Tank Replacement
4. Consumable Item Replacement Clean the wipe filter case. Install new wipe filters. Waste Ink Tank Replacement Ink used during head cleaning and other processes is collected in the waste ink tank at the lower right of the product. The machine counts the amount of ink discharged. Once a specified value is reached, “0604 CHECK WASTE BOTTLE”... -
Page 20: Refilling Cooling Water (Mixed With Antifreeze)
4. Consumable Item Replacement Grasp the handle of the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations. - Page 21 4. Consumable Item Replacement • Use only dedicated Mimaki Engineering anti freezing liquid. Use of other anti freezing liquid may cause failures or reduce print quality. • Take care to prevent any ignition sources such as static electricity or impact sparks.
- Page 22 4. Consumable Item Replacement Remove the caps for water supply and air purging. For water supply For air purging Inject the mixture of water and antifreeze. • The buzzer will stop after you inject about 500 ml of the mixture. After the buzzer stops, inject an additional 100 ml of the mixture.
- Page 23 Care and maintenance October, 2021 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203595-10-20102021...
- Page 24 © MIMAKI ENGINEERING CO., LTD.2021 FW : 1.0...
