MIMAKI JFX550-2513 Care And Maintenance

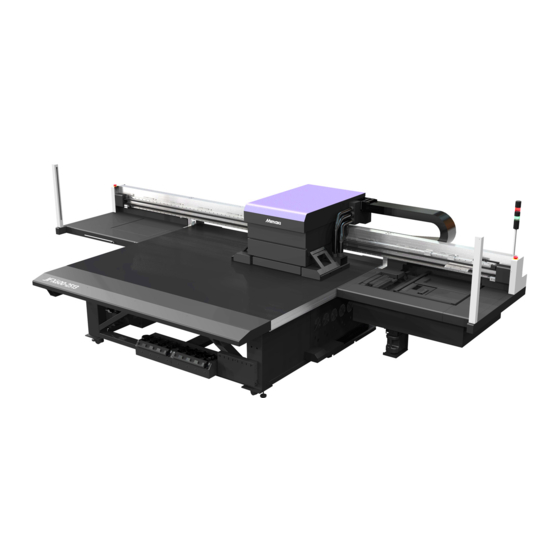

Uv inkjet printer
Hide thumbs Also See for JFX550-2513:
Table of Contents

Advertisement

Quick Links

Download this manual
You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/
D203595-11
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JFX550-2513 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIMAKI JFX550-2513

Summary of Contents for MIMAKI JFX550-2513

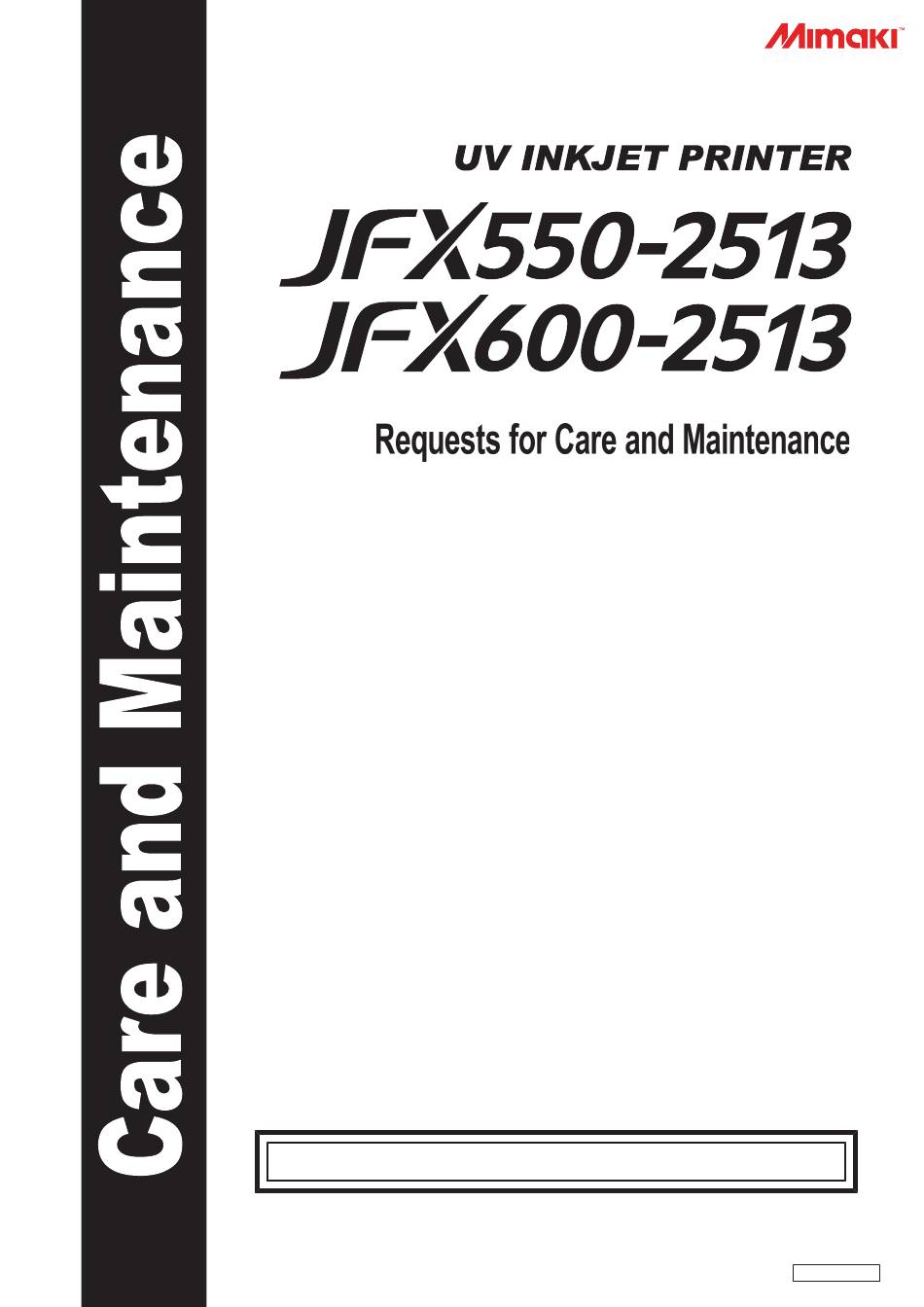

  • Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203595-11 Original instructions...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction .................. 3 To Ensure Safe Use ...............  4 Symbols .................... 4 Maintenance 1. Maintenance Precautions ............ 6 2. Maintenance Timing .............. 7 Tools Required for Maintenance............ 7 3. Performing Maintenance.............  8 Ink Maintenance ...................  8 Wiper Cleaning .................. 8 Cap Rubber Cleaning .................

  • Page 3: Introduction

    ATTRIBUTABLE TO MATERIALS CREATED WHILE USING THIS MACHINE. • USING THIS MACHINE IN CONJUNCTION WITH DEVICES OTHER THAN THOSE RECOMMENDED BY MIMAKI ENGINEERING MAY RESULT IN FIRE OR ACCIDENTS. SUCH INCIDENTS ARE NOT COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR DAMAGES, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS.

  • Page 4: To Ensure Safe Use

    To Ensure Safe Use Symbols In this manual, the symbols indicate and explain precautions. Make sure you fully understand the meaning of each symbol and use the machine safely and correctly. Explanation Warning Indicates a potential hazard that may result in death or serious injury if handled improperly or if instructions are disregarded.

  • Page 5: Maintenance

    To Ensure Safe Use Maintenance To ensure years of precise performance, maintain this product periodically based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product.

  • Page 6: Maintenance Precautions

    1. Maintenance Precautions 1. Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. We recommend cleaning this machine and replacing consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when this machine is used for extended periods.

  • Page 7: Maintenance Timing

    "Ink Maintenance"(P. 8) Tools Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid storing this product in locations accessible to children.

  • Page 8: Performing Maintenance

    3. Performing Maintenance 3. Performing Maintenance Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink bottle periodically to keep printing consistent. UV ink: once a month. White ink: once a day. l Shaking the Ink bottle Shake the Ink bottle to the left and right slowly at least 20 times.
  • Page 9 3. Performing Maintenance Remove the wiper. • Hold the lugs on both sides of the wiper bracket, then pull out the wiper. Clean the wiper and bracket. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 10: Cap Rubber Cleaning

    3. Performing Maintenance Reattach the wiper at the original position. Tap [Complete] > [Finish] once cleaning is complete. Cap Rubber Cleaning The cap rubber keeps the print head nozzle surface from drying out. Continuing to use a dirty cap may affect ink take-up and lead to print defects (e.g., nozzle clogging, deflection).

  • Page 11: Ncu Cleaning

    3. Performing Maintenance From MENU on the touch panel, tap [MAINTENANCE]. • The Maintenance menu is displayed. Tap [Weekly maintenance] > [Weekly station maintenance]. • The carriage moves over the table. Clean the wiper tray. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 12: Carriage Underside Cleaning

    3. Performing Maintenance From MENU on the touch panel, tap [MAINTENANCE]. • The Maintenance menu is displayed. Tap [Daily maintenance] > [Daily station maintenance]. • The carriage moves over the table. Clean the NCU. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
  • Page 13 3. Performing Maintenance Slide the maintenance cover on the left side of the Y-bar. • Lift the lever and slide it to the left. Maintenance cover Lever Clean the UV-LED lamp. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.

  • Page 14: Ink Discharge Channel Cleaning

    3. Performing Maintenance • Never touch the print head nozzle surface. Once cleaning is complete, slide the maintenance cover on the left side of the Y-bar to close Maintenance cover Lever • Make sure the maintenance cover is returned to the correct position. Tap [Complete] >...

  • Page 15: Exterior Cleaning (E.g., Cover, Y-Bar, )

    3. Performing Maintenance Table Cleaning Continuing to use the dirty table will cause dried ink and attached dust to rub against the head nozzle surface, resulting in print defects (e.g., nozzle clogging, deflection). Ink left adhering to the table for extended periods will be hard to remove, even with ethanol or solvents.
  • Page 16 3. Performing Maintenance LM Guide Wipe off dust from the left and right ends of the LM guide surface with a soft dry cloth. • The LM guide is lubricated. Never wipe with solvents such as ethanol. Wipe off any excess or dripping lubricant with a soft dry cloth.

  • Page 17: Consumable Item Replacement

    To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.

  • Page 18: Carriage Filter Replacement

    4. Consumable Item Replacement Mount a new wiper. Tap [Complete] > [Finish] once replacement is complete. • The wiper usage count is reset. Carriage Filter Replacement Check the mist filters and replace if very dirty. • Turn off the main power before performing maintenance tasks. Remove the carriage filter covers.

  • Page 19: Flushing Filter Replacement

    4. Consumable Item Replacement Flushing Filter Replacement The machine counts the amount of ink used in flushing. When a specified value is reached, SYSTEM ALARM will appear on the touch panel. Use this as a guide for replacing the flushing filter. From MENU on the touch panel, tap [MAINTENANCE].

  • Page 20: Bottle Ink Wipe Filter Replacement

    4. Consumable Item Replacement Remove the NCU ink-receiving pan. • Slide forward to remove. Remove the ink pad from the NCU ink-receiving pan. Ink pad Clean the NCU ink-receiving pan. Install a new NCU ink pad. Install the NCU ink-receiving pan. •...

  • Page 21: Waste Ink Tank Replacement

    4. Consumable Item Replacement Clean the wipe filter case. Install new wipe filters. Waste Ink Tank Replacement Ink used during head cleaning and other processes is collected in the waste ink tank at the lower right of the product. The machine counts the amount of ink discharged. Once a specified value is reached, “0604 CHECK WASTE BOTTLE”...

  • Page 22: Refilling Cooling Water (Mixed With Antifreeze)

    4. Consumable Item Replacement Grasp the handle of the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.
  • Page 23 4. Consumable Item Replacement • Use only genuine Mimaki Engineering anti freezing liquid. Use of other anti freezing liquid may cause failures of the cooling unit. • Take care to prevent any potential sources of ignition such as sparks caused by static electricity or material impacts.
  • Page 24 4. Consumable Item Replacement • During touch panel operation, the Y-bar will move to the front of the table. Do not approach the machine until the Y-bar has come to a complete stop. Remove the caps for water supply and air purging. For water supply For air purging Inject the mixture of water and antifreeze.
  • Page 27 Care and maintenance April, 2022 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203595-11-28042022...
  • Page 28 System Pack 2.2.0 © MIMAKI ENGINEERING CO., LTD.2022...
