Spectre 4 & Aevum Limited Edition Assembly Manual

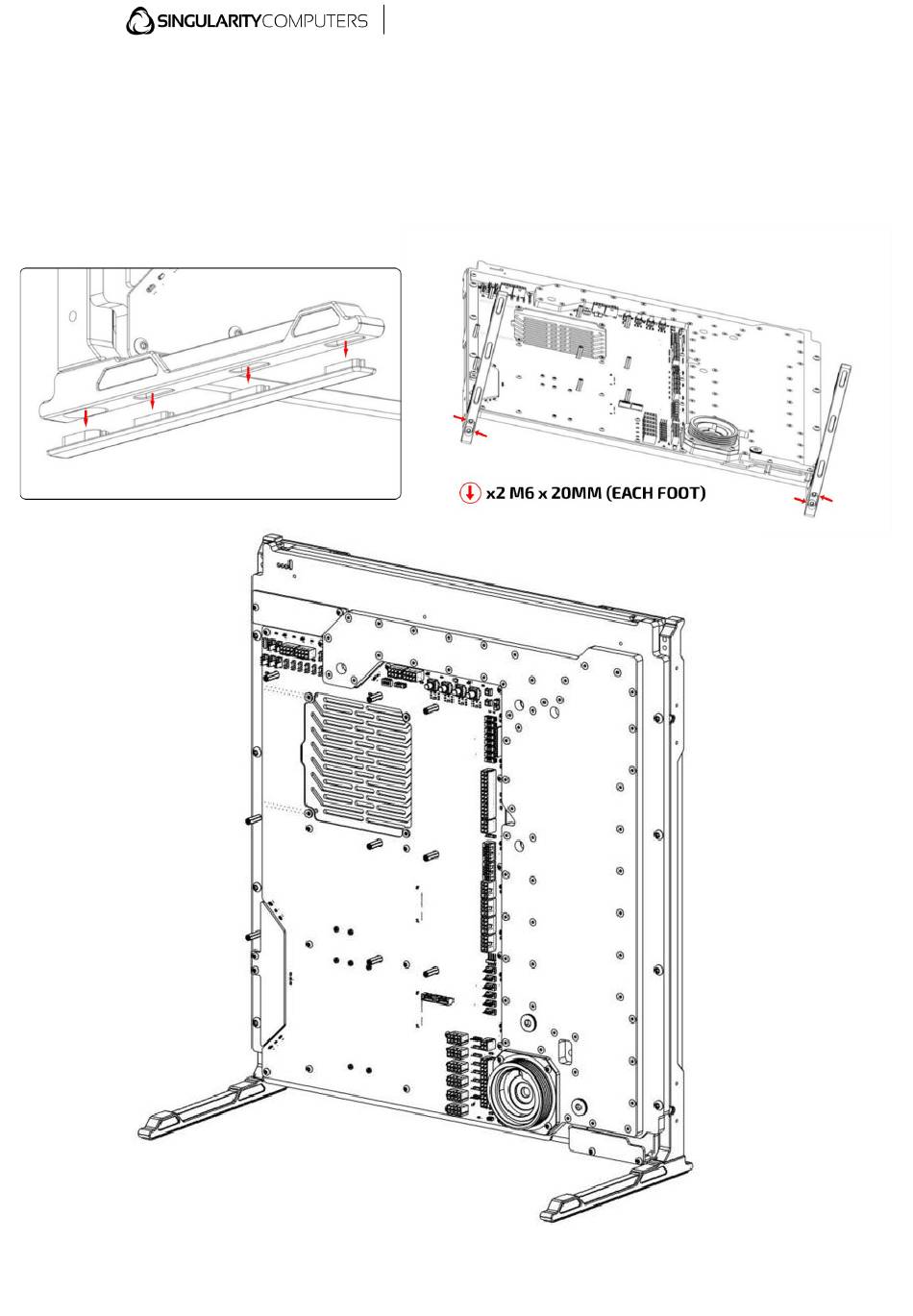

Step 2: Attach Feet to Bottom Legs.
Attach the Feet (B1) (B2) to the bottom of the Legs using x2 M6 20mm Fasteners. Fastener
locations are marked in the diagram below. Before installing the fasteners, you will need to
remove the protective covers from the feet, these can be pulled off by hand and they will need to
be replaced again afterwards. After this the case can be put upright on the feet.
Revision 1.0
Page | 10
