ROOMS TO GO 1372-94 Assembly Instruction

SIEL
Step Code
1 #6 Wood Screw -
#1 Bolt -
Ø5/16" X 18 X 3"
#2 Bolt -
Ø5/16" X 18 X 1-1/2"
2
#4 Lock Washer -
#5 Flat Washer -
3 #6 Wood Screw -
#3 Bolt -
Ø5/16" X 18 X 2-1/2"
#4 Lock Washer -
4
#5 Flat Washer -
#6 Wood Screw
2+4
#7 Open Wrench -
TOOLS REQUIRED (NOT PROVIDED)
Description
Phillips screwdriver
ASSEMBLY INSTRUCTION

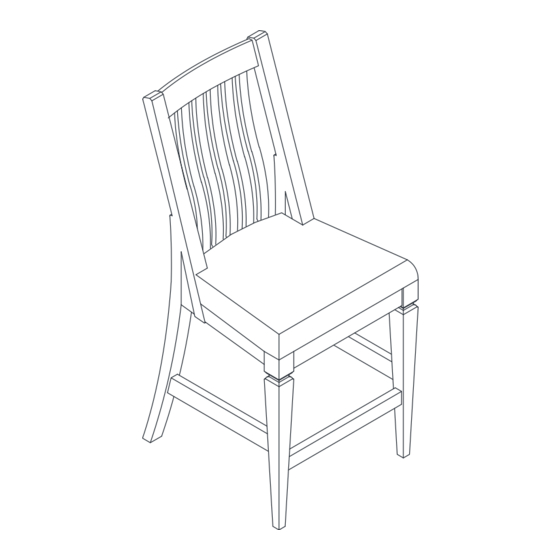

1372-946 COUNTER HEIGHT CHAIR / 1373-946 COUNTER HEIGHT CHAIR
SKU# 43413727 / SKU# 43413739
Hardware
#8 X 1-1/4"
Ø5/16"
Ø5/16" X 7/8"
#8 X 1-1/4"
Ø5/16"
Ø5/16" X 7/8"
- #8 X 1-1/4"
Ø5/16"
Hardware pack location (s):
COUNTER HEIGHT CHAIR SKU# 43413727
COUNTER HEIGHT CHAIR SKU# 43413739
This product is manufactured by (SIEL) for
Qty.
2 PCS
4 PCS
2 PCS
6 PCS
6 PCS
2 PCS
4 PCS
4 PCS
4 PCS
2 PCS
1 PC
Sketch
Parts
A. Chair Cushion - 1 PC
B. Chair Back - 1 PC
C. Left Front Leg - 1 PC
D. Right Front Leg - 1 PC
E. Front Stretcher - 1 PC
F. Side Stretcher – 2 PCS
