PARTS LIST :
Description
No.
1
Dresser
2
Legs
3
Center Leg
4
Tipping restraint
Hardware Pack Location (s) : Bolts pack inside bottom drawer ( Leg inner carton)
Dresser
SKU #
33165590
MADE IN MALAYSIA
ASSEMBLY INSTRUCTIONS

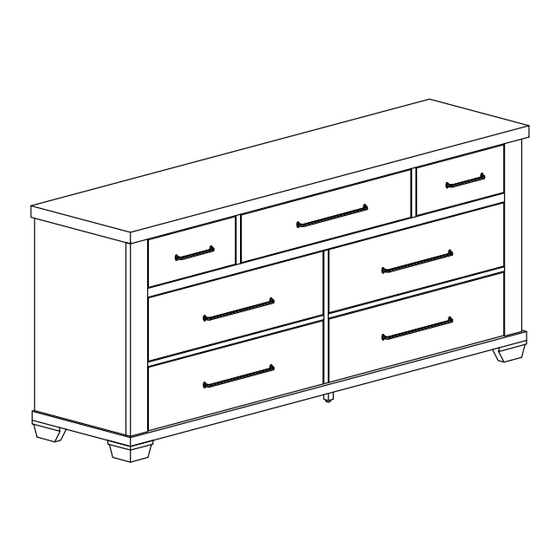

SLAW 135-6559-010N DRESSER
Sketch
Quantity
1 Pc
4 Pcs
1 Pc
1 Set
RESIDENTIAL USE ONLY
HARDWARE LIST :
No.
Description
A
M6 x P1.0 x 40MM
JCBC Bolt
Spring Washer
Flat Washer
B
Allen Key
4 x 65MM
SKU # 33165590
Size
Sketch
Quantity
M6
M6
1 OF 2
8 Pcs
1 Pc
