Summary of Contents for ROOMS TO GO HELLO PX9019-03D

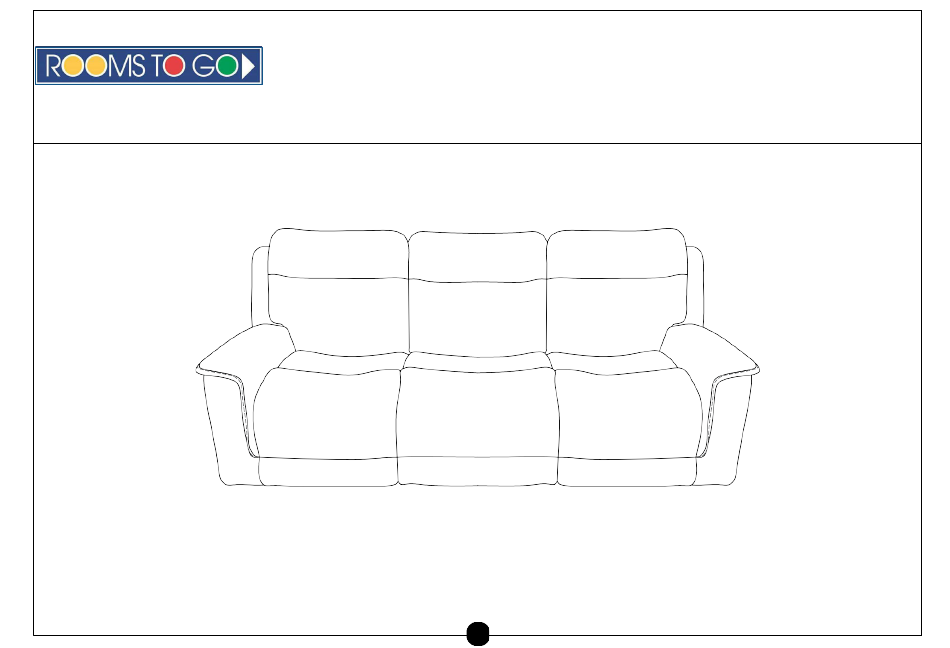

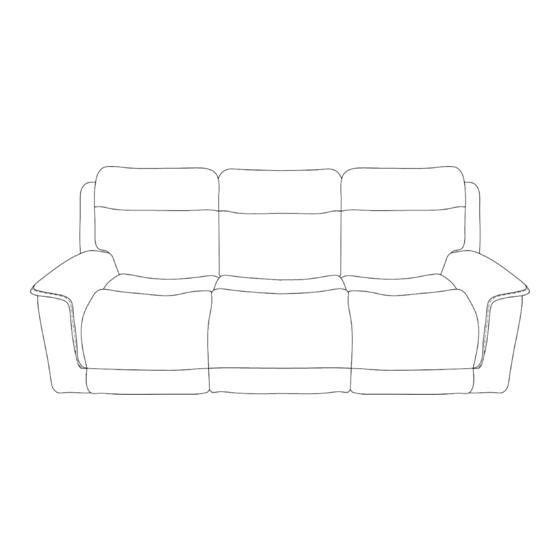

- Page 1 HELLO SKU: 11190179 PX9019-03D Manual Reclining Sofa 11190193 Manufactured for Rooms To Go 11190181...
- Page 2 LIST OF PARTS TOOL REQUIRED: NO TOOL REQUIRED PART LIST Quantity Description Item Seat LAF Backrest Middle Backrest w/DDT RAF Backrest LAF Wing RAF Wing...
- Page 3 ASSEMBLY INSTRUCTION Attention: The LAF Wing (E) & RAF Wing (F) have been packed and put into the arm frame bottom as picture shown below, take them out and set aside to be used later in Step 2. STEP 1: Attaching the KD Backs (B, C & D) Install the Middle Backrest (C) into the Seat (A) by positioning the female metal receiver brackets over the male metal posts.
- Page 4 OPERATION...
- Page 5 WARNINGS *Keep unit at least 24" from all heat sources. *Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. *Do not reach under seat when mechanism is operating or serious injury may occur. *Reclining mechanism should only be operated while seated properly.
- Page 6 *If unit must be moved, do not drag. Unit must be lifted in order to be moved. *Do not continuously operate mechanism for more than one minute or unit may go into protection mode by shutting down to prevent overheating. CARE AND CLEANING *Upholstered furniture is packaged tightly to protect it during transit.
- Page 7 TROUBLESHOOTING PROBLEM SOLUTION Ensure the backrest is properly clipped into the male posts located on seat mechanism (Step 1). Check that brackets Backrests gaps are not loose, positioned improperly or bent.
